Features:

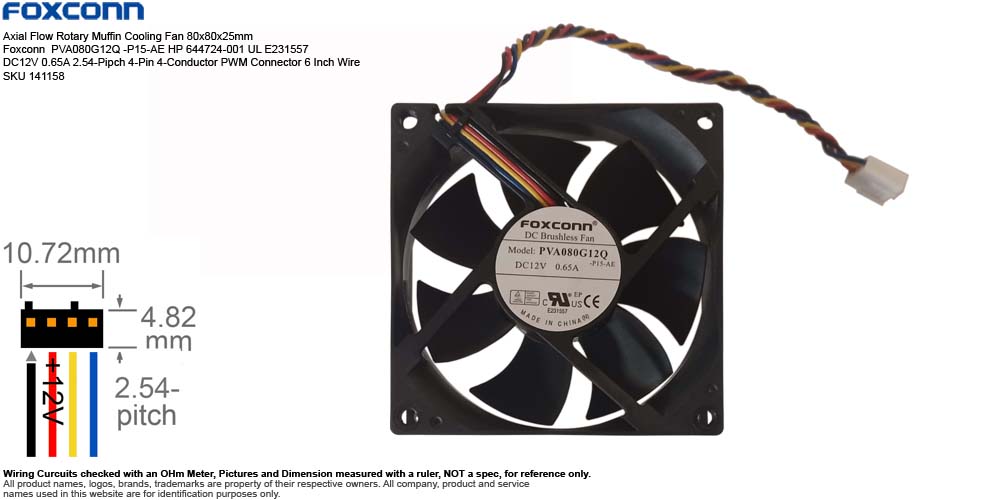

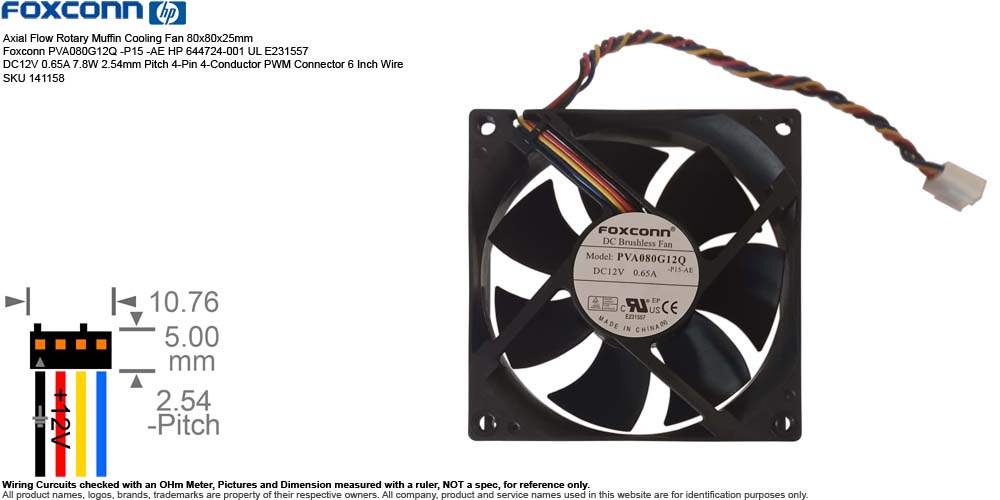

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Foxconn PVA080G12Q -P15 -AE HP 644724-001 UL E231557 DC12V 0.65A 7.8W 2.54mm Pitch 4-Pin 4-Conductor PWM Connector 6-inch Wire SKU 141158
• Manufacturer: Foxconn
• Brand Name or Distributor: Foxconn / HP
• Model: (and / or Compatible / Equivalent)
  • Foxconn PVA080G12Q -P15 -AE
  • HP 644724-001
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.65A 7.8W
  • Bearing: Fluid Dynamic Bearing / Hydraulic Sealed Bearing
  • Speed: 900 to 4,600 RPM +/- 5%
  • Air Flow: 19.0 to 62.5 CFM
  • Noise Level: 16 dBA ~ 47 dBA
  • Material: PBT plastic reinforced with 30% glass fiber, featuring a V0-class flame retardant rating
    • Frame Housing: Constructed from PBT plastic reinforced with 30% glass fiber, featuring a V0-class flame retardant rating
    • Impeller Blades: : Built from matching injection-molded PBT plastic + 30% glass wire with V0-grade flame retardancy to prevent warping under high thermal loads.
  • Connection: 2.54mm Pitch 4-Pin 4-Conductor PWM Connector
  • Wire Length: 6-inch
• Weight: 2.8 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), may have (or with) signs of cosmetic wear.
• Packaging: Non-Retail Packaging, in Unprinted Box or Plastic Bag.
• For use with or saved from: (for reference only)
  • Foxconn PVA080G12Q -P15 -AE is a high-performance, 12V DC brushless axial cooling fan. It measures 80x80x25mm and operates at a maximum current of 0.65A, primarily used for targeted thermal management in corporate hardware, HP EliteDesk & ProDesk PCs, Workstations & Servers, Industrial Enclosures.
  • Foxconn PVA080G12Q -P15 -AE
    • 'PVA' Product Series. Identifies this as part of Foxconn's high-performance standard brushless DC axial fan line.
    • '080' Frame Size. Denotes the outer width and height of the fan housing, which is exactly 80mm x 80mm.
    • 'G' Frame Thickness. A Foxconn code designating a standard depth profile of 25mm (commonly referred to as an "8025" size layout).
    • '12' Operating Voltage. Indicates the fan runs on a standard 12V DC power supply.
    • 'Q' Current/Power Rating Group. Specifies the specific motor wind sub-category designed for a maximum draw of 0.65A (producing a high-velocity output up to 4,600 RPM)
    • '-P' Control Function Type. Confirms the inclusion of an integrated PWM (Pulse Width Modulation) control circuit for dynamic motherboard-driven automated speed control.
    • '15' Wiring & Pitch Revision. Details the exact length of the lead wires and the specific configuration layout of the connection pins.
    • '(-A)' Bearing Variant. Designates a specialized internal structure—in this case, an advanced Hydro-Dynamic Bearing (HDB) or sealed hydraulic design
    • '.E' OEM Customer Profile. Indicates the specific customer modification package required for corporate compatibility. This version flags the standard proprietary HP hardware specification, indicating a customized motherboard connector configuration and internal firmware profile optimized to prevent BIOS boot errors on targeted HP platforms.
  • Pulled from HP Pavilion P7-1236S Computer
  • Serial Number Available or Sold:
    • SN 0111800 Used
    • CT: EBYEC0AJB2ZB97 Used
