Features:

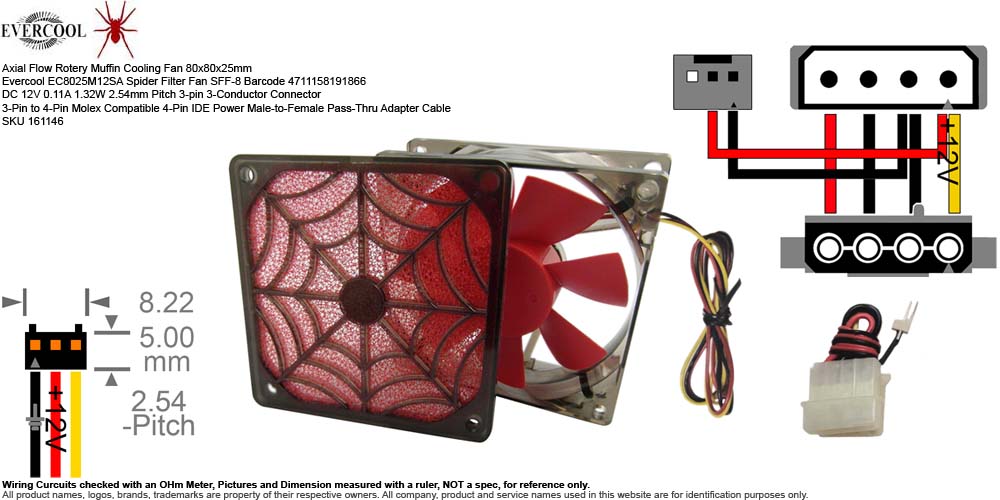

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Evercool EC8025M12SA Spider Filter Fan SFF-8 Barcode 4711158191866 DC 12V 0.11A 1.32W 2.54mm Pitch 3-pin 3-Conductor Connector 3-Pin to 4-Pin Molex Compatible 4-Pin IDE Power Male-to-Female Pass-Thru Adapter Cable SKU 161146
• Manufacturer: Evercool Thermal Co., Ltd.
• Brand or Distributor: Evercool / Spider Fan
• Model:
  • Evercool EC8025M12SA
  • Spider Filter Fan SFF-8
  • Barcode 4711158191866
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC 12V 0.11A 1.32W
  • Bearing: Ever Lubricate Bearing (EL Bearing or proprietary long-life lubricated mechanism)
  • Speed: 2500 RPM
  • Air Flow: 32.5 CFM
  • Noise Level: < 20 dBA
  • Material: Plastic (Standard UL 94V-0 rated PBT thermoplastic)
  • Connector:
    • 2.54-Pitch 3-Pin 3-Wire Connector
    • Molex Compatible 4-Pin IDE Power Male-to-Female Pass-Thru Adapter Cable
  • Wire Length:
    • 15.5 inch: from Fan to 3-pin 3-wire Connector
    • 8 inch: Adapter Cable 3-Pin Male to 4-Pin Molex Equivalent Male Connector
    • 2 inch: Adapter Cable 4-Pin Molex Equivalent Male Connector to 4-Pin Female Connector
• Weight: 5.1 oz (Estimated Shipping Weight 9 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: in Evercool Spider Filter Fan Original Sealed Blister Package
• For used with or pulled from: (for reference only)
  • EC8025M12SA Spider Filter Fan SFF-8 is primarily used as an anti-dust intake or exhaust cooling fan for desktop computers, media centers (HTPCs), network enclosures, and small form factor (SFF) electronics. Its main purpose is to supply clean, filtered airflow to sensitive electronic components.
  • EC8025M12SA
    • 'EC' Evercool. This is the manufacturer brand prefix code for all proprietary Evercool thermal cooling fan assemblies.
    • '80' Frame width and height 80mm x 80mm
    • '25'  Frame thickness 25mm.
    • 'M' Represents a Medium fan rotation speed profile curve (factory tuned to max out at 2500 RPM).
    • '12' 12V DC nominal operating voltage.
    • 'S' Defines the internal mechanical architecture as a Sleeve or proprietary Ever Lubricate (EL) bearing system configuration.
    • 'A' Dictates the signal output capability. In Evercool syntax, this designates an Alarm / Frequency Generator (FG) circuit line capable of sending real-time RPM tachometer telemetry back to a motherboard.
    • 'SF' Spider Filter fan kit series designation.
    • 'F' Indicates the configuration includes the Fan unit paired directly with the matching clip-on grill element.
    • '-8' Denotes the physical hardware scaling sizing index optimized specifically for an 80mm frame mount configuration.
  • Serial Number Available or Sold:
    • SN 0112053 New
