Features:

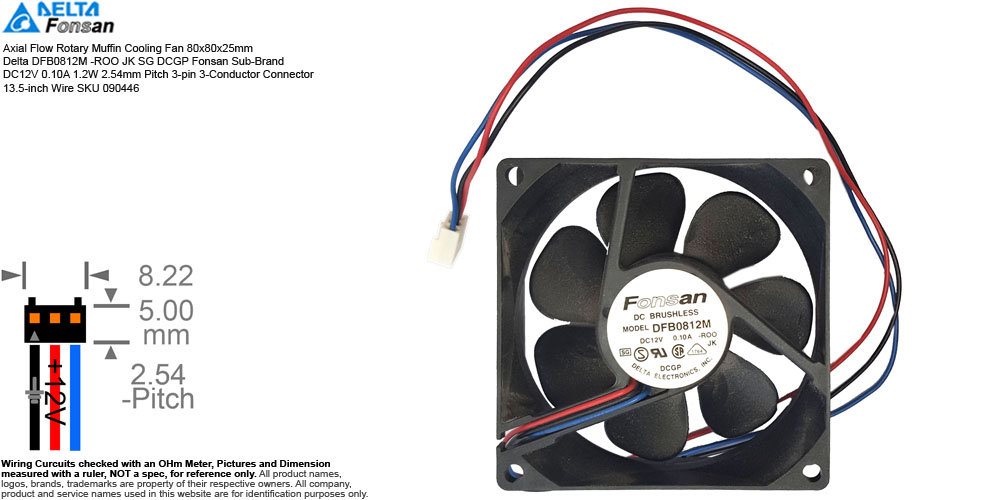

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Delta DFB0812M -ROO JK SG DCGP Fonsan Sub-Brand DC12V 0.10A 1.2W 2.54mm Pitch 3-pin 3-Conductor Connector 13.5-inch Wire SKU 090446
• Manufacturer: Delta Electronics Inc.
• Brand or Distributor: Fonsan
• Model:
  • DFB0812M -ROO JK SG DCGP
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.10A 1.2W
  • Bearing: Dual Ball Bearing
  • Speed: 2600 RPM
  • Air Flow: 29 CFM
  • Noise Level: 24.8 dBA
  • Material: Plastic (Typically UL 94V-0 rated PBT thermoplastic)
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Wire Length: 13.5-inch
• Weight: 2.9 oz (Estimated Shipping Weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • DFB0812M -ROO JK SG DCGP is to provide steady, low-noise thermal management for enclosed electronic environments. It is designed primarily as a medium-speed exhaust or intake fan for computer cases, server racks, network switches, power supplies, and automated industrial enclosures
  • DFB0812M -ROO JK SG DCGP
    • 'DFB' Series Code DC Brushless Fan signifies an electronically commutated direct-current brushless motor architecture.
    • '08' Frame width and height 80mm x 80mm, thickness 25mm.
    • '12' 12V DC nominal operating voltage.
    • 'M' Speed Profile represents a Medium fan rotation speed curve tuned at the factory to max out around 2600 RPM.
    • '-R' Signal Output defines a Rotation Detector circuit configuration instead of outputting standard tachometer speed frequency which is an F-type suffix stays low or high to act strictly as a "fail/pass" sensor.
    • '00' Signal Output Voltage denotes a standard Open Collector voltage logic setup tied directly to the system's VCC line
    • 'JK' The unique factory batch code or mechanical sub-series identifier. It notes minor structural revisions, specific wire lead length trims, or regional factory assembly lines.
    • 'SG' The regulatory or safety construction profile typically mandates specialized protections, such as automatic structural safeguards or compliance certifications (like UL 94V-0 self-extinguishing plastic ratings)
    • 'DCGP' The internal tracking suffix designating that the component complies with environmental material standards (such as specific RoHS lead-free, halogen-free, or eco-friendly manufacturing initiatives managed by Delta Electronics)
  • Serial Number Available or Sold:
    • SN 0090446 Used
    • SN 0090446 Used
