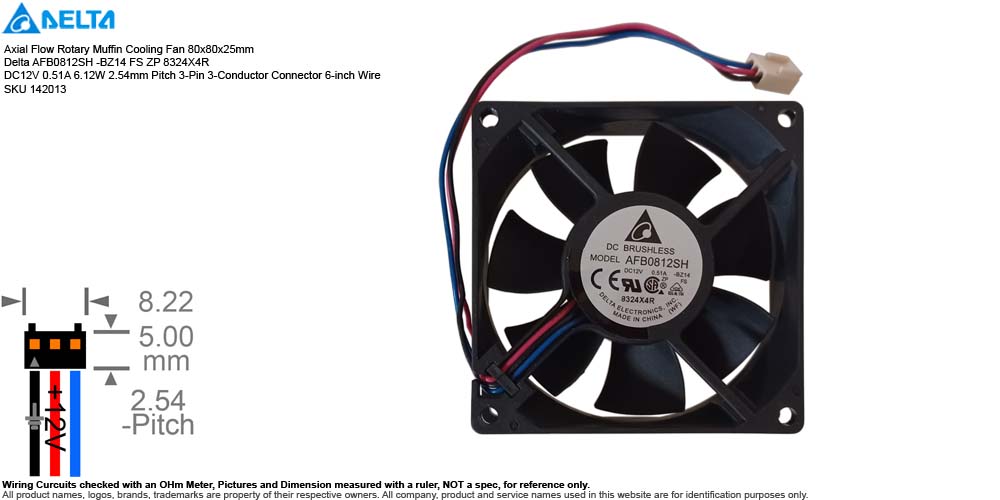

Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Delta AFB0812SH -BZ14 FS ZP 8324X4R DC12V 0.51A 6.12W 2.54mm Pitch 3-Pin 3-Conductor Connector 6-inch Wire SKU 142013

Axial Flow Rotary Muffin Cooling Fan 80x80x25mm
Delta AFB0812SH -BZ14 FS ZP 8324X4R DC12V 0.51A 6.12W
2.54mm Pitch 3-Pin 3-Conductor Connector 6-inch Wire
SKU 142013
FN-8025-xxx

Datasheet: AFB0812SH

Features:

Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Delta AFB0812SH -BZ14 FS ZP 8324X4R DC12V 0.51A 6.12W 2.54mm Pitch 3-Pin 3-Conductor Connector 6-inch Wire SKU 142013
Manufacturer: Delta Electronics Inc.
Brand or Distributor: Delta
Model: (and/or Compatible, Equivalent, Interchangeable)
- AFB0812SH -BZ14 FS ZP 8324X4R
Brief Spec.:
- Design: DC Brushless Cooling Fan
- Fan Size: 80x80x25mm
- Power Rating: DC12V 0.25A 3W
- Bearing: Dual Ball Bearing
- Speed: 4000 RPM
- Air Flow: 46.62 CFM
- Noise Level: 40 dBA
- Material: Plastic UL 94V-0 rated fire retardant thermoplastic
- Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
- Wire Length: 6-inch
Weight: 3.1 oz (Estimated Shipping Weight 7 oz)
Condition: (Subject to Availability)
- SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller repackaged.
- SKU ______E - Excess Inventory, not been used, may have signs of age.
- SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
- SKU ______O - Open Box, unused, may have signs of cosmetic wear.
- SKU ______R - Refurbished to working condition.
- SKU ______U - Used, like new, pulled from unsold new ATX Power Supply.
Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
For used with or pulled from: (for reference only)
- AFB0812SH -BZ14 FS ZP 8324X4R is designed primarily for high-density thermal management in commercial hardware, servers, and power supply units. The specific suffix code indicates it is an OEM custom configuration engineered for precision air volume control.
- AFB0812SH -BZ14 FS ZP 8324X4R Part Number Breakdown:
  - 'AFB' identifies it as a standard DC axial fan utilizing dual ball bearings.
  - '08' Frame width and height 80mm x 80mm, thickness 25mm.
  - '12' 12V DC nominal operating voltage.
  - 'SH' stands for Super High speed, indicating a base spec of 4,000 RPM.
  - '-B' Frame Design, Designates a Ribbed Type housing frame (as opposed to a flange type), featuring continuous plastic tunnels around the mounting screw holes
  - 'Z' Internal Core Revision., indicates a specialized internal PCB hardware architecture update.
  - '14' Customer Revision Sequence, sequential tracking digits assigned to this specific customer firmware variant.
  - 'FS' Safety / Factory Control, designates standard manufacturing line validations or specific factory location tracking
  - 'ZP' is a proprietary Internal Revision and Splicing Blueprint Index used strictly on Delta Electronics’ assembly lines. It does not represent any specific product features like "impedance protection" or "automatic restart
  - Photos are representative of the model and specifications you will receive; however, Dell frequently assigns multiple different Part Numbers (PNs) to the exact same physical part known as "substitutes" or "cross-references", the exact Dell PNs may differ across individual units.
    - '8324X4R' Lot Track / Build Code, a unique factory-level lot trace string marking the specific manufacturing batch, production line code, date grouping, or strict hardware tracking sequence.
