Features:

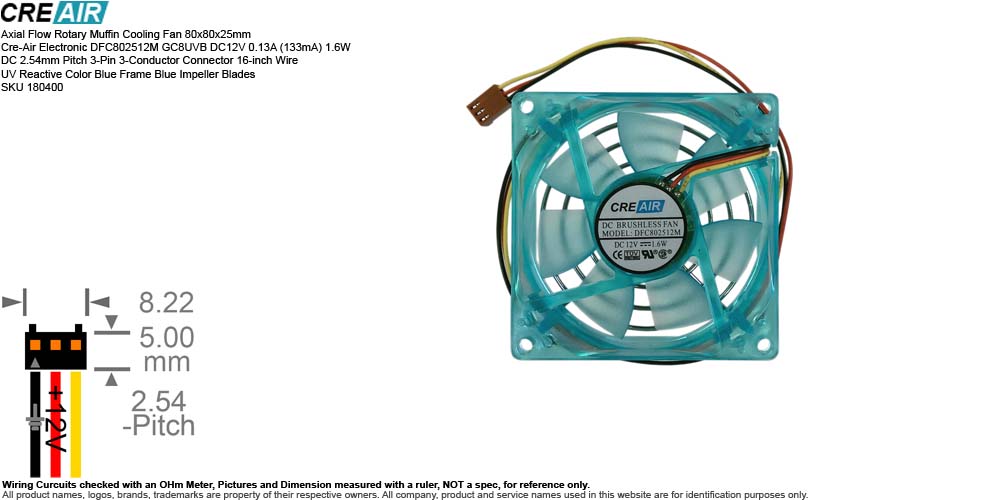

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Cre-Air Electronic DFC802512M GC8UVB DC12V 0.13A (133mA) 1.6W DC 2.54mm Pitch 3-Pin 3-Conductor Connector 16-inch Wire UV Reactive Color Blue Frame Blue Impeller Blades SKU 180400
• Manufacturer: Cre-Air Electronic Co., Ltd.
• Brand and Distributor: CreAir / Cre-Air
• Model: (and / or Compatible / Equivalent)
  • DFC802512M GC8UVB
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x25mm
  • Power Rating:DC12V 0.13A (133mA) 1.6W
  • Bearing: Dual Ball Bearing
  • Speed: 2500~3000 RPM
  • Air Flow: 32~38 CFM
  • Noise Level: 28~34 dBA
  • Material: PBT (Polybutylene Terephthalate)
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
• Weight: 3.1 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), may have (or with) signs of cosmetic wear.
• Packaging: Non-Retail Packaging, in Unprinted Box or Plastic Bag.
• For use with or saved from: (for reference only)
  • DFC802512M GC8UVB is to provide forced-air convective cooling to prevent electronic component from overheating such as computer case, power supply, server and network rack, industrial equipmentheat sink.
    • DF1208SM
      • 'DF' Direct Current (DC) Fan
      • 'C' internal manufacturer series revision code denoting frame styling or blade curvature
      • '80' Frame width and height 80mm x 80mm
      • '25' 25mm depth/thickness
      • '12' 12V DC nominal operating voltage.
      • 'M' Medium Speed / Medium Output performance tier.
      • 'GC' Internal Control Code maps out custom wire-harness lengths and terminal options.
      • '8' Internal sub-revision used to track minor tooling changes or internal electrical component adjustments.
      • 'UV' Aesthetic material  treatment    stands for Ultraviolet Reactive Plastic indicates that the frame and impeller blades are injected  with UV-sensitive phosphors that glow under blacklight.
      • 'B' Dual Ball Bearing type.
  • Serial Number Available or Sold:
    • SN 0089884 New
