Features:

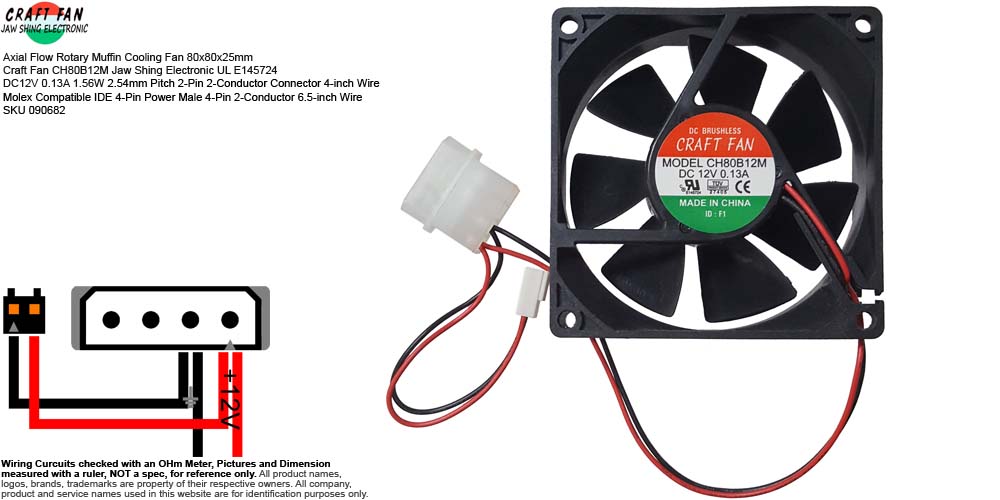

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Craft Fan CH80B12M Jaw Shing Electronic UL E145724 DC12V 0.13A 1.56W 2.54mm Pitch 2-Pin 2-Conductor Connector 4-inch Wire Molex Compatible IDE 4-Pin Power Male 4-Pin 2-Conductor 6.5-inch Wire SKU 090682
• Manufacturer: Jaw Shing Electronic
• Brand or Distributor: Craft Fan
• Model: (and / or Compatible / Equivalent)
  • CH80B12M
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.13A 1.56W
  • Bearing: Dual Ball Bearing
  • Speed: 2400 RPM
  • Air Flow: 28.5~32 CFM
  • Noise Level: 28.2 dBA
  • Material: PBT Plastic (Polybutylene Terephthalate)
    • Frame Housing: PBT Plastic (Polybutylene Terephthalate) reinforced with fiberglass, meets UL94V-0 flame-retardant standards.
    • Impeller Blades: PBT Plastic (Usually an integrated 7-blade configuration molded entirely from matching black thermoplastic for weight reduction and stability)
  • Connection:
    • 2.54mm Pitch 2-Pin 2-Conductor Connector 4-inch Wire
    • Molex Compatible IDE 4-Pin Power Male 4-Pin 2-Conductor 6.5-inch Wire
• Weight: 2.4 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from retired computer, may with signs of cosmetic wear.
• Packaging: Non-Retail Packaging, in Unprinted Box or Plastic Bag.
• For use with or saved from: (for reference only)
  • Craft Fan CH80B12M is a highly versatile, medium-speed 80mm axial cooling fan designed primarily for enclosure thermal management and internal electronics cooling, it comes equipped with a unique dual-ended multi-connector harness (combining both a large 4-pin Molex/IDE power plug and a small 2-pin KK254 connector), its practical deployment spans across several industries such as Desktop PC Enclosures, Server Chassis, Legacy Power Supplies, Electrical Control Panels, Uninterruptible Power Supplies (UPS) 3D Printers & CNC Enclosures, AV Equipment Racks, Arcade & Kiosk Cabinets, Small Grow Boxes, Desk & Workspace Air Circulation, ...
  • Craft Fan CH80B12M
    • 'CH' The manufacturer identifier used by Jaw Shing to designate their standard industrial-grade DC axial flow fan product line
    • '80' Indicates the outer length and width of the housing is exactly 80mm. Since it follows industry standards, the depth defaults to a standard 25mm thickness (80x80x25mm).
    • 'B' Stands for Ball Bearing. Specifically, this means it houses two internal steel ball bearing rings, offering a long lifespan (often over 50,000 hours) and allowing the fan to operate reliably at any mounting angle.
    • '12' Specifies that the fan motor requires a 12V DC (Direct Current) power source. It typically operates safely within a standard tolerance range of 10.2V to 13.8V.
    • 'M' Represents a Medium performance profile. For this specific 80mm footprint, "M" scales the motor to spin at 2,400 RPM, balancing a moderate noise footprint (28.2 dBA) with consistent airflow (~30 CFM).
  • Serial Number Available or Sold:
    • SN 0090682 Used
    • SN 0090682 Used
