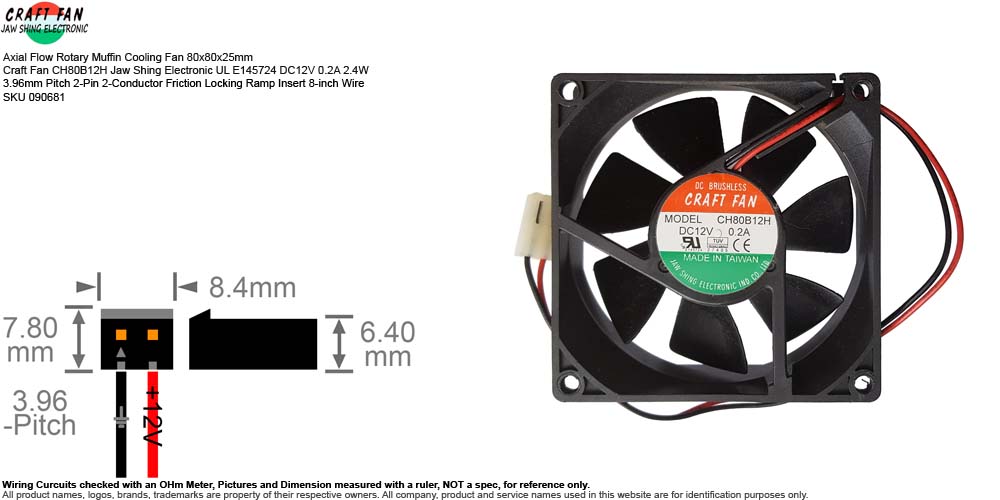

Axial
Flow Rotary Muffin Cooling Fan 80x80x25mm
Craft Fan CH80B12H Jaw Shing Electronic UL E145724 DC12V 0.2A 2.4W
3.96mm Pitch 2-Pin 2-Conductor Friction Locking Ramp Insert 8-inch Wire
SKU 090681
FN-8025-xxx
Features:
- Description:
Axial Flow Rotary Muffin Cooling Fan 80x80x25mm Craft Fan CH80B12H
Jaw Shing Electronic UL E145724 DC12V 0.2A 2.4W 3.96mm Pitch 2-Pin
2-Conductor Friction Locking Ramp Insert 8-inch Wire SKU 090681
- Manufacturer:
Jaw Shing
Electronic
- Brand or
Distributor: Craft Fan
- Model: (and / or
Compatible / Equivalent)
- Brief Spec.:
- Design: DC Brushless
Cooling Fan
- Fan Size:
80x80x25mm
- Power Rating:
C12V 0.2A 2.4W
- Bearing:
Dual Ball Bearing
- Speed: 3000
RPM
- Air Flow:
35~38 CFM
- Noise
Level: 31.5~33 dBA
- Material:
PBT Plastic (Polybutylene Terephthalate)
-
Frame Housing:
PBT Plastic
(Polybutylene
Terephthalate) reinforced with fiberglass, meets UL94V-0
flame-retardant standards.
-
Impeller Blades:
PBT Plastic
(Usually an integrated
7-blade configuration molded entirely from matching black
thermoplastic for weight reduction and stability)
- Connection:
3.96mm
Pitch 2-Pin 2-Conductor Friction Locking Ramp Insert 8-inch Wire
- Weight: 2.4 oz
(estimated shipping weight 7 oz)
- Condition: (Subject
to Availability)
- SKU ______A -
Aged
Open Box, not been used, with signs of cosmetic wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller
repackaged.
- SKU ______E -
Excess
Inventory,
not been used, may have signs of age.
- SKU ______P -
For Parts, Condition Vary, Not Eligible for Return or Refund.
- SKU ______O -
Open Box, unused, may have signs of cosmetic wear.
- SKU ______R - Refurbished to
working condition.
- SKU ______U -
Used,
pulled from computer
power supply, may
with
signs of cosmetic wear.
- Packaging: Non-Retail
Packaging, in Unprinted Box or Plastic Bag.
- For use with or saved
from: (for reference only)
- Craft Fan
CH80B12H is a
high-speed, high-airflow 80mm axial cooling fan designed primarily
for
intensive thermal regulation in confined environments
operates at
roughly
3,000 RPM
and pushes up to
38 CFM
of air, its use cases target applications where rapid heat
dissipation is prioritized over absolute silence. Its dual
ball-bearing system allows for rigorous, continuous 24/7 deployment
in a variety of hardware systems such as Network Enclosures &
Switches, Compact PC Cases, High-Wattage Power Supplies, Industrial
Control Enclosures, Inverters & Uninterruptible Power Supplies
(UPS), Laser Cutters & 3D Printers, Arcade & Vending Cabinets,
Pro-Audio & DJ Amplifier Racks, Small Hydroponic & Grow Tents, DIY
Solder Fume Extractors, ...
-
Craft Fan
CH80B12H
- 'CH'
The manufacturer
identifier used by Jaw Shing to designate their standard
industrial-grade DC axial flow fan product line
-
'80'
Indicates the outer length and width of the housing is exactly
80mm.
Since it follows industry standards, the depth defaults to a
standard
25mm
thickness (80x80x25mm).
-
'B'
Stands for
Ball Bearing.
Specifically, this means it houses two internal steel ball
bearing rings, offering a long lifespan (often over 50,000
hours) and allowing the fan to operate reliably at any mounting
angle.
- '12'
Specifies that the fan motor requires a
12V DC
(Direct Current) power source. It typically operates safely
within a standard tolerance range of 10.2V to 13.8V.
- 'M' Represents
High
speed performance tier. For an 80mm housing, this scales the
motor to rotate at
~3,000 RPM,
intentionally prioritizing higher volumetric airflow (~38 CFM)
and static pressure over near-silent operation.
- Serial Number
Available or Sold:
|
