Features:

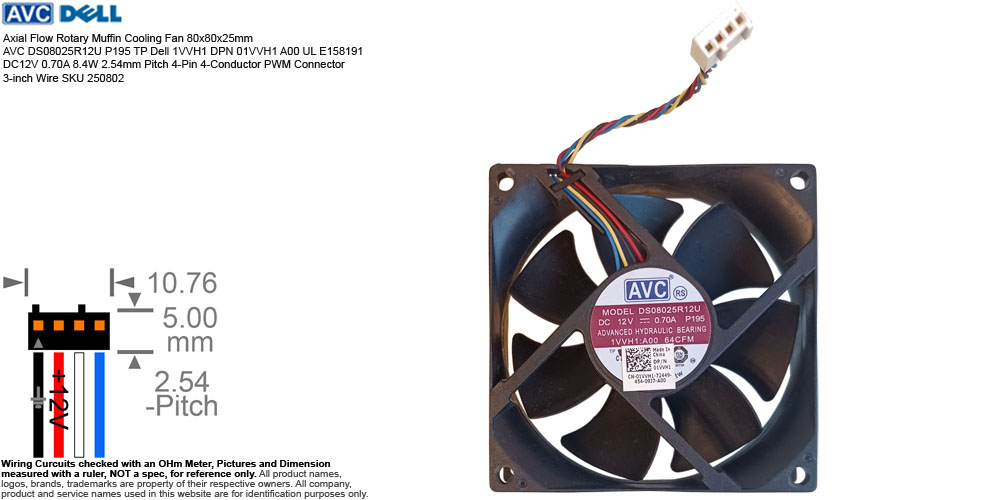

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm AVC DS08025R12U P195 TP Dell 1VVH1 DPN 01VVH1 A00 UL E158191 DC12V 0.70A 8.4W 2.54mm Pitch 4-Pin 4-Conductor PWM Connector 3-inch Wire SKU 250802
• Manufacturer: AVC Asia Vital Components Co., Ltd.
• Brand or Distributor: AVC / Dell
• Model:
  • AVC DS08025R12U P195
  • Dell 1VVH1 A00
  • DPN 01VVH1 A00
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Size: 80x80x25mm
  • Power Rating: DC12V 0.7A 8.4W
  • Bearing: Advanced Hydraulic Bearing
  • Speed: 4900~5000 RPM
  • Air Flow: 48.5~64 CFM
  • Noise Level: 38~44 dBA
  • Material: PBT Plastic (Polybutylene Terephthalate)
    • Frame Housing: Glass-fiber reinforced PBT / ABS polymer (High rigid construction)
    • Impeller Blades: PBT Plastic (Typically a 7-blade high-pressure layout, UL 94V-0)
  • Connection: 2.54mm Pitch 4-Pin 4-Conductor PWM Connector
  • Wire Length: 3-inch
• Weight: 2.6 oz (Estimated Shipping Weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • DS08025R12U P195 TP is an industrial-grade, high-velocity DC Brushless Cooling Fan engineered for heavy-duty thermal management. It is primarily built as a heavy-duty, high-amperage replacement unit for enterprise-class servers and OEM desktop towers. The primary purpose of this fan is to provide forced-air cooling in high-density electronic environments that experience extreme heat. Drawing a massive 0.70A of current, it is designed to push air through restrictive barriers, such as tightly packed components and dense aluminum heatsinks.
  • DS08025R12U P195 TP
    • 'DS' Dual-Signal / Advanced DC Family
    • '08025' Frame width and height 80mm x 80mm, thickness 25mm.
    • 'R' Advanced Hydraulic Bearing mechanism.
    • '12' 12V DC nominal operating voltage.
    • 'U' Ultra-High Performance speed motor configuration.
    • 'P195' A factory mapping code indicating the exact physical harness setup dictates a short, clean cable run (typically ~7cm) terminating in a standard 4-pin motherboard connector to slip perfectly into Dell computer frameworks.
    • 'T' Thermistor / Temperature Monitor Indicates internal circuitry that monitors temperature or features a thermal failsafe to regulate resistance.
    • 'P' PWM Logic outfitted with full 4-wire active speed configuration. The motherboard can actively scale the speed up and down dynamically depending on the current thermal load.
  • Pulled from Dell Vostro 470 Computer
  • Serial Number Available or Sold:
    • CN-01VVH1-72449-454-09J7-A00 Used
