Features:

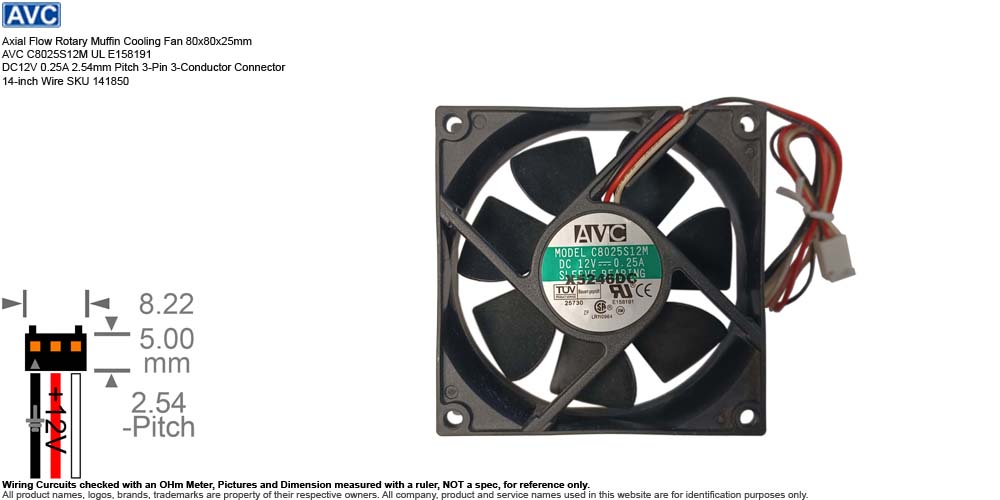

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm AVC C8025S12M ZP UL E158191 DC12V 0.25A 3W 2.54mm Pitch 3-Pin 3-Conductor Connector 14-inch Wire SKU 141850
• Manufacturer: Asia Vital Components Co., Ltd.
• Brand and Distributor: AVC
• Model:
  • C8025S12M ZP
  • UL E158191
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.25A 3W
  • Bearing: Sleeve Bearing
  • Speed: 2500~3000 RPM
  • Air Flow: 31.5~33.5 CFM
  • Noise Level: 29.8 dBA
  • Material: PBT (Polybutylene Terephthalate) UL 94V-0 rated flame retardant
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Wire Length: 14-inch
• Weight: 2.2 oz (Estimated Shipping Weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, like new, pulled from unsold new ATX Power Supply.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • C8025S12M ZP is a commercial-grade, brushless DC Axial cooling fan primarily designed for active  thermal management and forced-air cooling in electronics. The specific "ZP" suffix typically denotes factory-specific configurations like impedance protection, automatic restart functionality, or a targeted OEM pinout arrangement. The primary purpose of this fan is to prevent hardware degradation and thermal throttling by continuously exhausting hot air or pulling in cool ambient air. It is engineered for mid-range static pressure and airflow requirements for Desktop PC Case & Power Supplies, Legacy CPU Heatsinks, Industrial & Network Equipment, Power Inverters.
  • C8025S12M ZP
    • 'C' Represents the C-Series of AVC DC Axial Fans, specifies standard square frames molded from thermoplastic PBT with UL 94V-0 fire retardant properties.
    • '0825' Frame width and height 80mm x 80mm, thickness 25mm.
    • 'S' Sleeve Bearing mechanism.
    • '12' 12V DC nominal operating voltage.
    • 'M' Medium Speed motor configuration.
    • 'ZP' Denotes factory impedance protection and an integrated automatic restart lock-rotor function, ensuring the system won't suffer a short-circuit if the blades are physically blocked.
  • Serial Number Available or Sold:
    • SN 0111828 Used
