Datasheet:

• ADDA AD0812 (DC12V) / AD0824 (DC24V)
• ADDA Axial Flow Fan

Features:

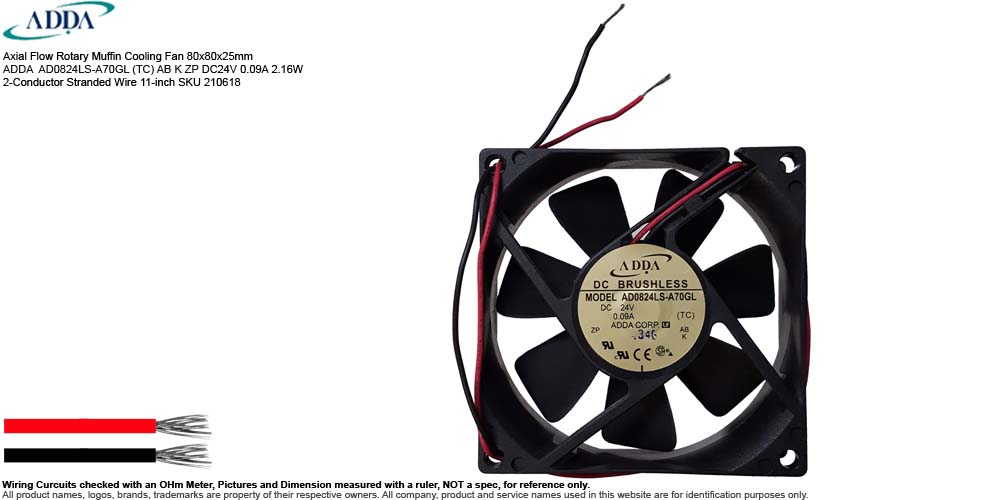

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm ADDA AD0824LS-A70GL (TC) AB K ZP DC24V 0.09A 2.16W 2-Conductor Stranded Wire 11-inch SKU 210618
• Manufacturer: ADDA Corporation
• Brand or Distributor: ADDA
• Model:
  • AD0824LS-A70GL (TC) AB K ZP
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC24V 0.09A 2.16W
  • Bearing: Sleeve Bearing
  • Speed: 2030 RPM
  • Air Flow: 26.2 CFM
  • Noise Level: 22.5 dBA
  • Material: PBT Thermoplastic reinforced with structural fiberglass carrying flame-retardant UL94V-0 compliance. PBT reinforced with fiberglass meet UL94V-0 flame-retardant.
  • Connection: 2-Conductor Stranded Wire
  • Wire Length: 11-inch
• Weight: 2.6 oz (Estimated Shipping Weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from ATX Power Supply, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • AD0824LS-A70GL (TC) AB K ZP is a low-noise, industrial-grade 24-volt DC axial cooling fan. Its primary purpose is to provide smart, quiet, and energy-efficient thermal regulation inside sealed electronics enclosures where noise control and equipment longevity are critical commonly found in Medical Equipment, Audio/Video &Broadcast Racks, Telecommunication & Networking, Precision Industrial Automation.
  • AD0824LS-A70GL (TC) AB K ZP
    • 'AD' ADDA Brushless DC Axial Fan.
    • '08' Frame width and height 80mm x 80mm
    • '24' 24V DC nominal operating voltage.
    • 'L' Low Speed motor configuration.
    • 'S' Sleeve Bearing mechanism.
    • 'A' Standard outer housing depth of 25mm.
    • '7' Impeller designed with 7 fan blades.
    • '0' Specifies a baseline motor safeguard that is protected by impedance alone with no extra specialized tachometer (FG) or alarm (RD) signal wires.
    • 'GL' Denotes a factory code signifying Green/RoHS compliance paired with a glass-filled, low-toxicity P.B.T. plastic structure.
    • '(TC)' Confirms the fan includes a thermal control function. Instead of running at a fixed 2,440 RPM at all times, the fan automatically scales its speed up or down linearly based on the ambient temperature.
    • 'AB This Manufacturing Facility & Shift Code designates the exact ADDA production plant and the specific automated assembly line matrix that manufactured the fan. If a component fails under industrial use, engineers use this "AB" stamp to trace the part back to the exact factory shift, component batch, and equipment calibration data from the day it was assembled.
    • 'K' This Customer or Lot Configuration Suffix indicates a specialized factory modification made for a specific production lot or client order, While it does not alter the motor's speed, voltage, or airflow performance, a "K" suffix typically denotes a customized layout choice, such as a specific lead-wire length, a pre-installed wire harness connector plug, or a particular bulk-packaging style for the factory floor.
    • 'ZP' Denotes factory impedance protection and an integrated automatic restart lock-rotor function, ensuring the system won't suffer a short-circuit if the blades are physically blocked.
  • Pulled from ATX Computer Power Supplies.
  • Serial Number Available or Sold:
    • SN 0111978 Used
    • SN 0111979 Used
