Features:

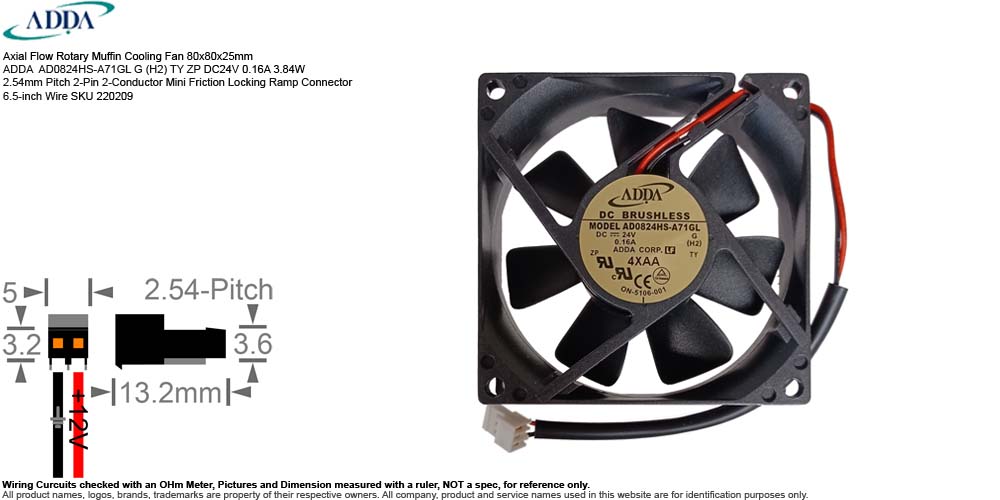

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm ADDA AD0824HS-A71GL G (H2) TY ZP DC24V 0.16A 3.84W 2.54mm Pitch 2-Pin 2-Conductor Mini Friction Locking Ramp Connector 6.5-inch Wire SKU 220209
• Manufacturer: ADDA Corporation
• Brand or Distributor: ADDA
• Model: AD0824HS-A71GL G (H2) TY ZP
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC24V 0.16A 3.84W
  • Bearing: Sleeve Bearing
  • Speed: 3010 RPM
  • Air Flow: 38.6 CFM
  • Noise Level: 34.4 dBA
  • Material: Plastic UL94V-0 Flammability Rating
  • Connection: 2.54mm Pitch 2-Pin 2-Conductor Mini Friction Locking Ramp Connector
  • Wire Length: 6.5-inch
• Weight: 2.7 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, like new, pulled from unsold new ATX Power Supply.
• Package: Non-Retail Packaging, in Unprinted Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • AD0824HS-A71GL G (H2) TY ZP is an industrial-grade 24-volt DC axial cooling fan designed primarily for active thermal management. Its ultimate purpose is to pull heat away from enclosed electronic components to prevent hardware failure and extend machine lifespan. It is commonly found factory-installed in Industrial Automation, Power Electronics, Network Infrastructure, Medical Equipment.
  • AD0824HS-A71GL G (H2) TY ZP
    • 'AD' ADDA Brushless DC Axial Fan.
    • '08' Frame width and height 80mm x 80mm
    • '24' 24V DC nominal operating voltage.
    • 'H' High Speed motor configuration.
    • 'S' SleeveBearing mechanism.
    • 'A' Standard outer housing depth of 25mm.
    • '7' Impeller designed with 7 fan blades.
    • '1' The fan is controlled with an IC utilizing an active silicon chip inside to regulate motor timing and switching.
    • 'GL' Denotes a factory code signifying Green/RoHS compliance paired with a glass-filled, low-toxicity P.B.T. plastic structure.
    • 'G' is a sequential design revision marker assigned their engineering department, that occurred after the base model was originally designed. It confirms the fan belongs to the "G" generation of this specific product series
    • 'H2' ADDA operates several massive manufacturing plants across Taiwan and mainland China, 'H2' points to a specific building, factory division, or automated assembly line matrix.
    • 'TY' Denotes the specific factory shift, inspection group, or QA sub-tier responsible for testing the electrical insulation and noise levels of the fan before it was packaged.
    • 'ZP' Denotes factory impedance protection and an integrated automatic restart lock-rotor function, ensuring the system won't suffer a short-circuit if the blades are physically blocked.
  • Serial Number Available or Sold:
