Datasheet:

• ADDA AD0812 (DC12V) / AD0824 (DC24V)
• ADDA Axial Flow Fan

Features:

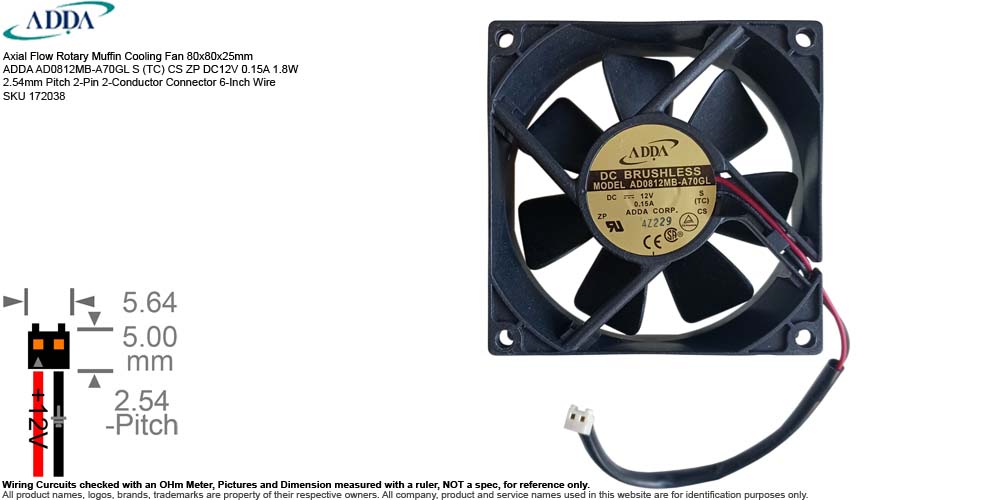

• Description: Rotary Axial Flow Muffin Cooling Fan 80x80x25mm ADDA AD0812MB-A70GL S (TC) CS ZP DC12V 0.15A 1.8W 2.54mm Pitch 2-Pin 2-Conductor Connector 6-Inch Wire SKU 172038
• Manufacturer: ADDA Corporation
• Brand or Distributor: ADDA
• Model:
  • AD0812MB-A70GL S (TC) CS ZP
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.15A 1.8W
  • Bearing: Dual Ball Bearing
  • Speed: 2440 RPM
  • Air Flow: 31.4 CFM
  • Noise Level: 28.3 dBA
  • Material: UL94V-0 Glass Filled Polyester (P.B.T.)
  • Connection: 2.54mm Pitch 2-Pin 2-Conductor Connector
  • Wire Length: 6-inch
• Weight: 2.6 oz (Estimated Shipping Weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, like new, pulled from unsold new ATX Power Supply.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • AD0812MB-A70GL S (TC) CS ZP is to serve as an OEM (Original Equipment Manufacturer) active heat-dissipation and active cooling component custom-configured part number tailored primarily for Dell desktop computer systems, chassis enclosures and internal power supplies.
  • AD0812MB-A70GL S (TC) CS ZP
    • 'AD' ADDA Brushless DC Axial Fan.
    • '08' Frame width and height 80mm x 80mm
    • '12' 12V DC nominal operating voltage.
    • 'M' Medium Speed motor configuration.
    • 'B' Ball Bearing mechanism.
    • 'A' Standard outer housing depth of 25mm.
    • '7' Impeller designed with 7 fan blades.
    • '0' Specifies a baseline motor safeguard that is protected by impedance alone with no extra specialized tachometer (FG) or alarm (RD) signal wires.
    • 'GL' Denotes a factory code signifying Green/RoHS compliance paired with a glass-filled, low-toxicity P.B.T. plastic structure.
    • 'S' Indicates the standard configuration baseline or a specific framing style variant for standard internal mountings.
    • '(TC)' Confirms the fan includes a thermal control function. Instead of running at a fixed 2,440 RPM at all times, the fan automatically scales its speed up or down linearly based on the ambient temperature.
    • 'CS' Represents a customer-specific safety, routing, or labeling variation applied at the factory line to match a specific motherboard or power board header configuration.
    • 'ZP' Denotes factory impedance protection and an integrated automatic restart lock-rotor function, ensuring the system won't suffer a short-circuit if the blades are physically blocked.
  • Pulled from ATX Computer Power Supplies
  • Serial Number Available or Sold:
    • SN 0078482 Used
