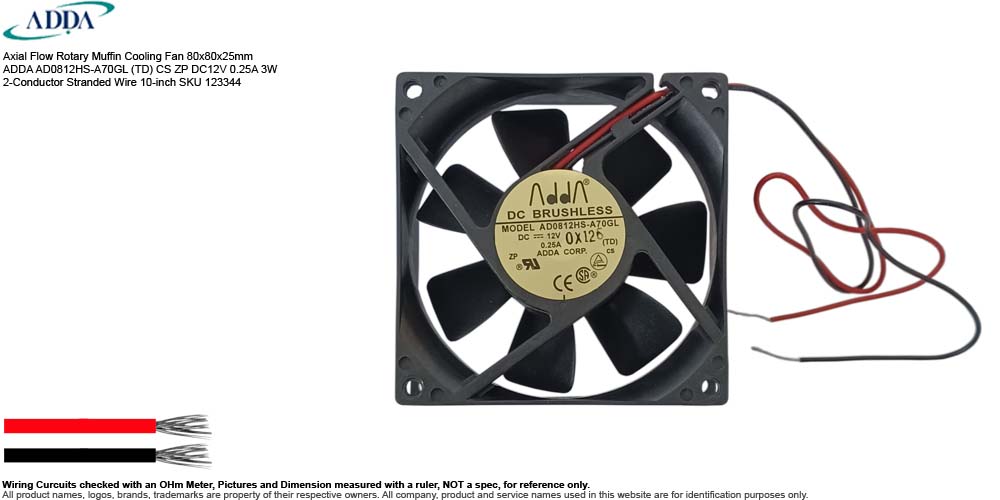

Axial Flow Rotary Muffin Cooling Fan 80x80x25mm
ADDA AD0812HS-A70GL (TD) CS ZP
DC12V 0.25A 3W
2-Conductor Stranded Wire 10-inch SKU 123344
FN-8025-xxx
Datasheet:
Features:
- Description:
Axial Flow
Rotary Muffin Cooling Fan 80x80x25mm ADDA AD0812HS-A70GL (TD) CS ZP
DC12V 0.25A 3W 2-Conductor Stranded Wire 10-inch SKU 123344
- Manufacturer:
ADDA Corporation
- Brand or
Distributor: ADDA
- Model:
ADDA AD0812HS-A70GL (TD) CS ZP
- Brief Spec.:
- Design: DC Brushless
Cooling Fan
- Fan Size:
80x80x25mm
- Power Rating:
DC12V 0.25A 3W
- Bearing:
Sleeve Bearing
- Speed: 3010
RPM
- Air Flow:
38.6 CFM
- Noise
Level: 34.4 dBA
- Material:
PBT
Thermoplastic Glass
Fiber Reinforced UL 94V-0 Rated
-
Frame Housing:
PBT
Thermoplastic Glass
Fiber Reinforced UL 94V-0 Rated
-
Impeller Blades:
PBT
Thermoplastic Glass
Fiber Reinforced UL 94V-0 Rated
- Connection:
2-Conductor Stranded Wire
- Wire
Length: 10-inch
- Weight: 2.6 oz
(estimated shipping weight 7 oz)
- Condition: (Subject
to Availability)
- SKU ______A -
Aged
Open Box, not been used, with signs of cosmetic wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller
repackaged.
- SKU ______E -
Excess
Inventory,
not been used, may have signs of age.
- SKU ______P -
For Parts, Condition Vary, Not Eligible for Return or Refund.
- SKU ______O -
Open Box, unused,
may have signs of cosmetic wear.
- SKU ______R - Refurbished to
working condition.
- SKU ______U - Used, pulled from ATX Power Supply.
- Package: Non-Retail
Packaging, in Unprinted Box or Plastic Bag.
- For used with
or pulled from:
(for reference only)
- The ADDA
AD0812HS-A70GL
is a high-performance, low-noise DC axial cooling fan. Below is
the comprehensive breakdown of its technical features, metrics,
composition, applications, and full part number decoding.
-
AD0812HS-A70GL (TD) CS ZP 0X126 Part Number Breakdown,
- 'AD'
ADDA DC Brushless Axial Fan
series identifier.
-
'08'
80mm Frame Width/Height
(80 × 80 mm)
-
'12'
12V DC
Operating Voltage
-
'H'
High Speed
output class configuration
-
'S'
Sleeve Bearing
mechanism inside the motor
-
'A'
25mm Frame Thickness
(The "A" structural housing series designates an 80 × 80 ×
25 mm layout)
-
'7'
7 Blades
integrated into the plastic impeller layout
-
'0'
2-Wire Termination
interface configuration without auxiliary sensors (standard
positive and negative leads)
-
'GL'
Green / Low Noise
designation indicating compliance with strict acoustic
profiles and eco-standards
-
'TD'
Thermal Control / Tooling Designation.
Usually specifies a locked-rotor auto-restart circuit logic
or a minor factory stamping code revision
-
'CS'
Customer Special.
Signals a custom physical configuration (e.g., specific
lead-wire length, terminal pins, or bundled dampening
screws)
- 'ZP'
Impedance / Zero Protection.
Denotes that the internal motor circuitry is inherently
protected against burning out if the blades are fully locked
or obstructed
-
Photos are representative of the model and specifications
you will receive; however, the exact factory batch codes,
manufacturing dates, and plant location stamps may differ
across individual units.
- '0X126'
OEM Tracking Code.
A hyper-specific factory batch layout sequence, tracking
custom wiring harnesses or proprietary vendor-level shipping
bundles
- Pulled from ATX Power Supply
- Serial Number
Available or Sold:
|
