Features:

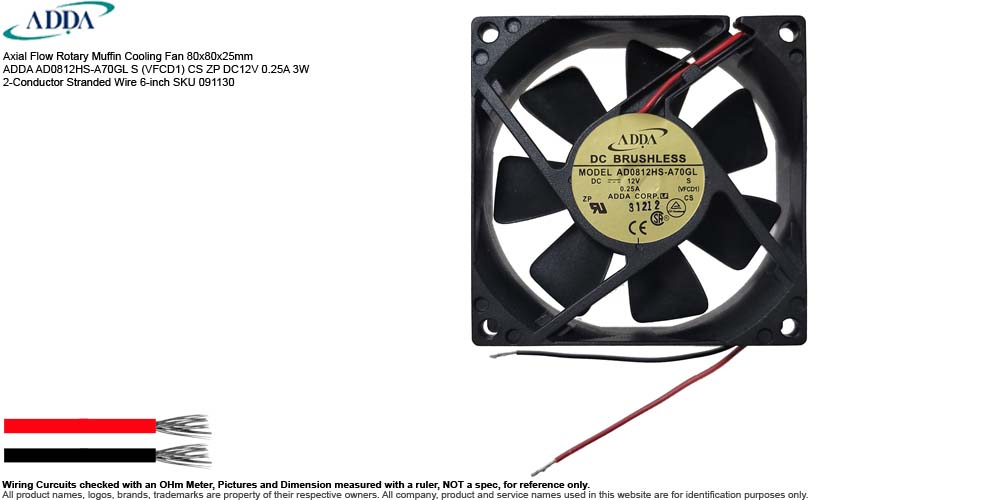

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm ADDA AD0812HS-A70GL S (VFCD1) CS ZP DC12V 0.25A 3W 2-Conductor Stranded Wire 6-inch SKU 091130
• Manufacturer: ADDA Corporation
• Brand or Distributor: ADDA / Dell
• Model: AD0812HS-A70GL S (VFCD1) CS ZP
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.25A 3W
  • Bearing: Sleeve Bearing
  • Speed: 3010 RPM
  • Air Flow: 38.6 CFM
  • Noise Level: 34.4 dBA
  • Material: UL94V-0 Glass Filled Polyester (P.B.T.)
  • Connection: 2-Conductor Stranded Wire
  • Wire Length: 6-inch
• Weight: 2.7 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), may have (or with) signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • AD0812HS-A70GL S (VFCD1) CS ZP is to serve as an OEM (Original Equipment Manufacturer) active heat-dissipation and active cooling component custom-configured part number tailored primarily for Dell desktop computer systems, chassis enclosures and internal power supplies.
  • AD0812HS-A70GL S (VFCD1) CS ZP
    • 'AD' ADDA Brushless DC Axial Fan.
    • '08' Frame width and height 80mm x 80mm
    • '12' 12V DC nominal operating voltage.
    • 'H' High Speed motor configuration.
    • 'S' Sleeve Bearing mechanism.
    • 'A' Standard outer housing depth of 25mm.
    • '7' Impeller designed with 7 fan blades.
    • '0' Specifies a baseline motor safeguard that is protected by impedance alone with no extra specialized tachometer (FG) or alarm (RD) signal wires.
    • 'GL' Denotes a factory code signifying Green/RoHS compliance paired with a glass-filled, low-toxicity P.B.T. plastic structure.
    • 'S' Indicates the standard configuration baseline or a specific framing style variant for standard internal mountings.
    • '(VFCD1)' The internal vendor specification firmware/wiring code, this variant terminates with a customized length 6-inch 2-stranded bare wire configuration.
    • 'CS' Represents a customer-specific safety, routing, or labeling variation applied at the factory line to match a specific motherboard or power board header configuration.
    • 'ZP' Denotes factory impedance protection and an integrated automatic restart lock-rotor function, ensuring the system won't suffer a short-circuit if the blades are physically blocked.
  • Pulled from Dell Computer Power Supply Model: L305P-01 (MPN: PS-6311-5DF, DPN: 0NH493, Dell P/N: NH493)
  • Serial Number Available or Sold:
    • SN 0091130 Used
