Features:

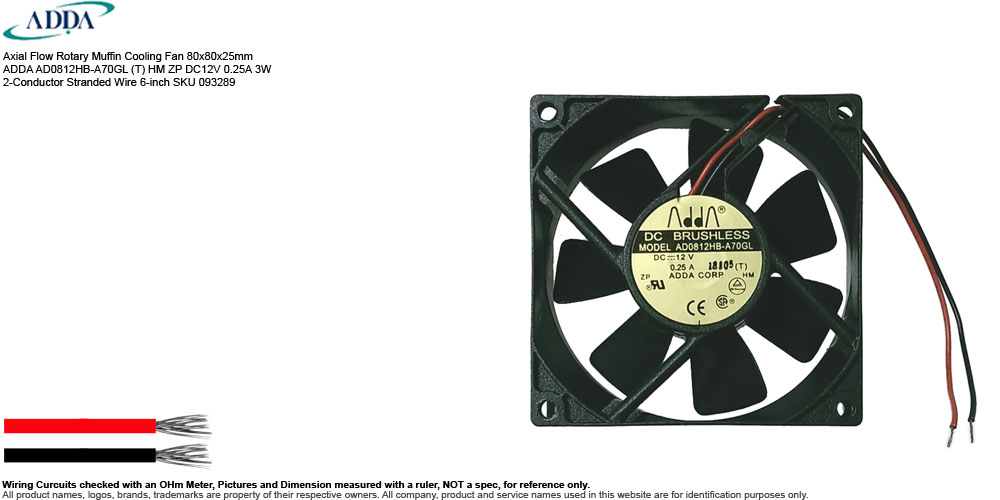

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm ADDA AD0812HB-A70GL (T) HM ZP DC12V 0.25A 3W 2-Conductor Stranded Wire 6-inch SKU 093289
• Manufacturer: ADDA Corporation
• Brand or Distributor: ADDA
• Model: AD0812HB-A70GL (T) HM ZP
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.25A 3W
  • Bearing: Dual Ball Bearing
  • Speed: 3010~3100 RPM
  • Air Flow: 38.6~39.6 CFM
  • Noise Level: 34.4 dBA
  • Material: Plastic UL94V-0 Flammability Rating
  • Connection: 2-Conductor Stranded Wire
  • Wire Length: 6-inch
• Weight: 2.7 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • AD0812HB-A70GL (T) HM ZP is a high-performance, industrial-grade DC brushless axial cooling fan designed primarily for server enclosures, power supplies, and inverters.
  • AD0812HB-A70GL (T) HM ZP
    • 'AD' ADDA Brushless DC Axial Fan.
    • '08' Frame width and height 80mm x 80mm
    • '12' 12V DC nominal operating voltage.
    • 'H' High Speed motor configuration.
    • 'B' Ball Bearing mechanism.
    • 'A' Standard outer housing depth of 25mm.
    • '7' Impeller designed with 7 fan blades.
    • '0' Specifies a baseline motor safeguard that is protected by impedance alone with no extra specialized tachometer (FG) or alarm (RD) signal wires.
    • 'GL' Denotes a factory code signifying Green/RoHS compliance paired with a glass-filled, low-toxicity P.B.T. plastic structure.
    • 'T' Identifies specific wholesale packaging choices, regional distributor codes, or a specific factory sub-series tier. It confirms that the fan matches wholesale engineering builds, but it does not change the physical dimensions, airflow, or speed parameters of the baseline model.
    • 'HM' High-Torque Motor Indicates that the internal stator windings are wound and configured differently to maintain high torque and stable static pressure against restricted air environments, such as packed server chassis, dense power supply arrays, or radiator fins.
    • 'ZP' Denotes factory impedance protection and an integrated automatic restart lock-rotor function, ensuring the system won't suffer a short-circuit if the blades are physically blocked.
  • Pulled from Computer Power Supply.
  • Serial Number Available or Sold:
    • SN 0093289 Used
