Datasheet:

• ADDA AD0812 (DC12V) / AD0824 (DC24V)
• ADDA Axial Flow Fan

Features:

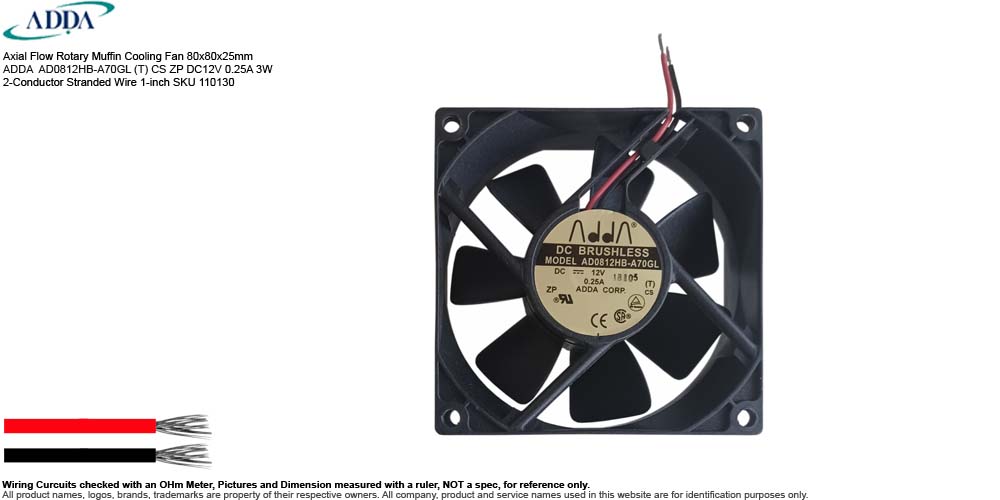

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x25mm ADDA AD0812HB-A70GL (T) CS ZP DC12V 0.25A 3W 2.54mm Pitch 2-Pin 2-Conductor Connector 1-inch Wire SKU 110130
• Manufacturer: ADDA Corporation
• Brand or Distributor: ADDA
• Model: AD0812HB-A70GL (T) CS ZP
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x25mm
  • Power Rating: DC12V 0.25A 3W
  • Bearing: Dual Ball Bearing
  • Speed: 3100 RPM
  • Air Flow: 39.6 CFM
  • Noise Level: 34.4 dBA
  • Material: Plastic UL94V-0 Flammability Rating
  • Connection: 2-Conductor Stranded Wire
  • Wire Length: 1-inch
• Weight: 2.7 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from ATX Power Supply.
• Package: Non-Retail Packaging, in Unprinted Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • AD0812HB-A70GL (T) CS ZP is a high-performance, industrial-grade DC brushless axial cooling fan designed primarily for server enclosures, power supplies, and inverters.
  • AD0812HB-A70GL (T) CS ZP
    • 'AD' ADDA Brushless DC Axial Fan.
    • '08' Frame width and height 80mm x 80mm
    • '12' 12V DC nominal operating voltage.
    • 'H' High Speed motor configuration.
    • 'B' Ball Bearing mechanism.
    • 'A' Standard outer housing depth of 25mm.
    • '7' Impeller designed with 7 fan blades.
    • '0' Specifies a baseline motor safeguard that is protected by impedance alone with no extra specialized tachometer (FG) or alarm (RD) signal wires.
    • 'GL' Denotes a factory code signifying Green/RoHS compliance paired with a glass-filled, low-toxicity P.B.T. plastic structure.
    • 'T' Identifies specific wholesale packaging choices, regional distributor codes, or a specific factory sub-series tier. It confirms that the fan matches wholesale engineering builds, but it does not change the physical dimensions, airflow, or speed parameters of the baseline model.
    • 'CS' Typically features a custom cable length, specific wire color-coding, or a proprietary multi-pin terminal connector designed to mate instantly with a specific vendor's motherboard.
    • 'ZP' Denotes factory impedance protection and an integrated automatic restart lock-rotor function, ensuring the system won't suffer a short-circuit if the blades are physically blocked.
  • Pulled from ATX Power Supply
  • Serial Number Available or Sold:
    • SN 0111980 Used
