Features:

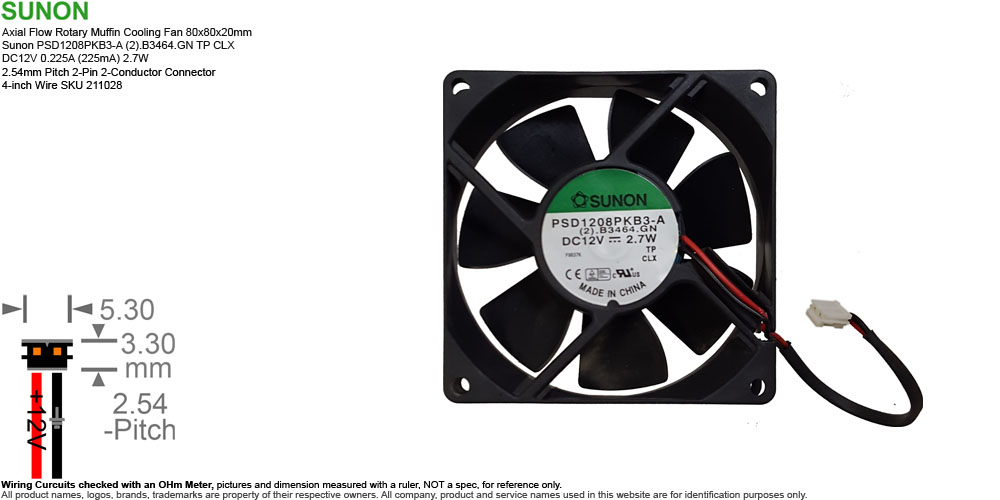

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x20mm Sunon PSD1208PKB3-A (2).B3464.GN TP CLX DC12V 0.225A (225mA) 2.7W 2.54mm Pitch 2-Pin 2-Conductor Connector 4-inch Wire SKU 211028
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model:
  • Sunon PSD1208PKB3-A (2).B3464.GN TP CLX
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x20mm
  • Power Rating: DC12V 0.225A (225mA) 2.7W
  • Bearing: Dual Ball Bearing
  • Speed: 3500 RPM
  • Air Flow: 45 CFM
  • Noise Level: 40 dB(A)
  • Material: PBT Polybutylene Terephthalate fiberglass reinforced UL 94V-0 rated
    • Frame Housing: Polybutylene Terephthalate (PBT Plastic) reinforced with fiberglass, meeting the UL 94V-0 flammability safety rating
    • Impeller Blades: Companion high-rigidity PBT Plastic (UL 94V-0), dynamically balanced to minimize vibration.
  • Connection: 2.54mm Pitch 2-Pin 2-Conductor Connector
  • Overall Wire Length: 4-inch
• Weight: 2.9 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, pulled from unsold computer case. May have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from computer power supply, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sunon PSD1208PKB3-A is part of Sunon's high-static pressure Power Motor (PMD/PSD) line. It is engineered to push air through densely packed components where standard case fans stall, commonly used in Server Chassis, Power Supplies, Network Infrastructure.
  • PSD1208PKB3-A (2).B3464.GN TP CLX F9B37K Part Number Breakdown:
    • 'PS' The product series, which stands for Power Motor (Sunon's high-static pressure industrial line).
    • 'D' The power type, standing for DC (Direct Current). This differentiates it from Sunon's "A" designated lines, which use AC (Alternating Current) power.
    • '12' Voltage Rating 12 Volts DC operational rating.
    • '08' Frame Size 80mm width & height dimensions.
    • 'P' Premium High-Power Motor configuration
    • 'K' Sunon structural frame/housing specification matrix.
    • 'B' Dual Ball Bearing configuration.
    • '3' Low-speed performance tier within the Power Motor matrix.
    • '-A' First generation core architecture build
    • '(2)' 20mm housing thickness configuration.
    • '.B3464'Proprietary client revision code (dictates the 4-inch short wire lead length).
    • '.GN' RoHS compliant certification (Lead-free materials).
    • 'TP' Thermally Protected circuitry to prevent burnout if stalled.
    • 'CLX' Factory assembly plant tracing designation.
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'F9B37K' is an internal manufacturing lot number and trace code used by Sunon for quality control. It does not affect the performance, dimensions, or specifications of the fan.
  • Pulled from computer power supply
  • Serial Numbers Available or Sold:
    • Batch F9B37K, SN 0110915 Used
    • Batch F9712E, SN 0090832 Used
