Features:

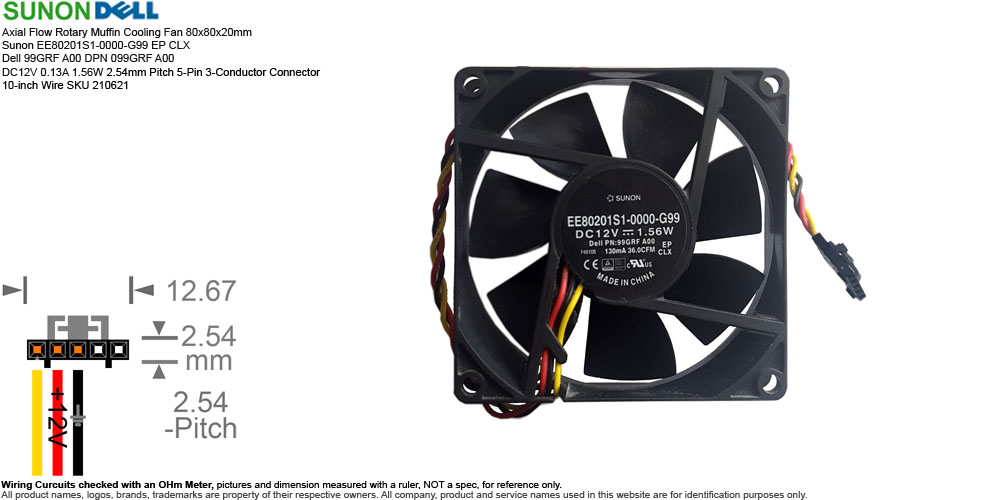

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x20mm Sunon EE80201S1-0000-G99 EP CLX Dell 99GRF A00 DPN 099GRF A00 DC12V 0.13A 1.56W 2.54mm Pitch 5-Pin 3-Conductor Connector 10-inch Wire SKU 210621
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Sunon EE80201S1-0000-G99 EP CLX
  • Dell 99GRF A00
  • DPN 099GRF A00
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x20mm
  • Power Rating: DC12V 0.13A 1.56W
  • Bearing: Sleeve Bearing
  • Speed: 3300 RPM
  • Air Flow: 36 CFM
  • Noise Level: 33 dB(A)
  • Material: PBT Polybutylene Terephthalate fiberglass reinforced UL 94V-0 rated
    • Frame Housing: Polybutylene Terephthalate (PBT Plastic) reinforced with fiberglass, meeting the UL 94V-0 flammability safety rating
    • Impeller Blades: Companion high-rigidity PBT Plastic (UL 94V-0), dynamically balanced to minimize vibration.
  • Connection: 2.54mm Pitch 5-Pin 3-Conductor Connector
  • Overall Wire Length: 10-inch
• Weight: 2.4 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, pulled from unsold computer case. May have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from computer power supply, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sunon EE80201S1-0000-G99 EP CLX is part of Sunon's high-static pressure Power Motor (PMD/PSD) line. It is engineered to push air through densely packed components where standard case fans stall, commonly used in Server Chassis, Power Supplies, Network Infrastructure.
  • EE80201S1-0000-G99 EP CLX F3121K Part Number Breakdown:
    • 'EE' Eco Series Brushless DC Fan.
    • '80' 12 Volts DC system operation.
    • '20' 20mm housing depth / profile configuration.
    • '1' 12 Volts DC system operation.
    • 'S' Super High performance speed curve bracket.
    • '1' First tier specification assignment.
    • '-0000' Standard core engineering design release version.
    • '-G99' Built with Auto-Restart protection combined with an F-Type Tachometer / Speed Sensor wire (3rd wire signal).
    • 'EP' Electronically Protected against motor burnout during an unexpected blade stall.
    • 'CLX' Factory production plant internal routing layout designation.
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'F3121K' is an Manufacturing lot number and trace code used strictly for internal factory quality auditing (disregard this when shopping for a replacement unit).
  • Pulled from
    • Dell Optiplex 3010 Computer
    • Dell Optiplex 3020 Computer
  • Serial Numbers Available or Sold:
    • Batch F3121K, CN-0099GRF-60365-2CJ-0644-A00 Used
    • Batch F46106, CN-0099GRF-60365-45Q-7828-A00 Used
