Features:

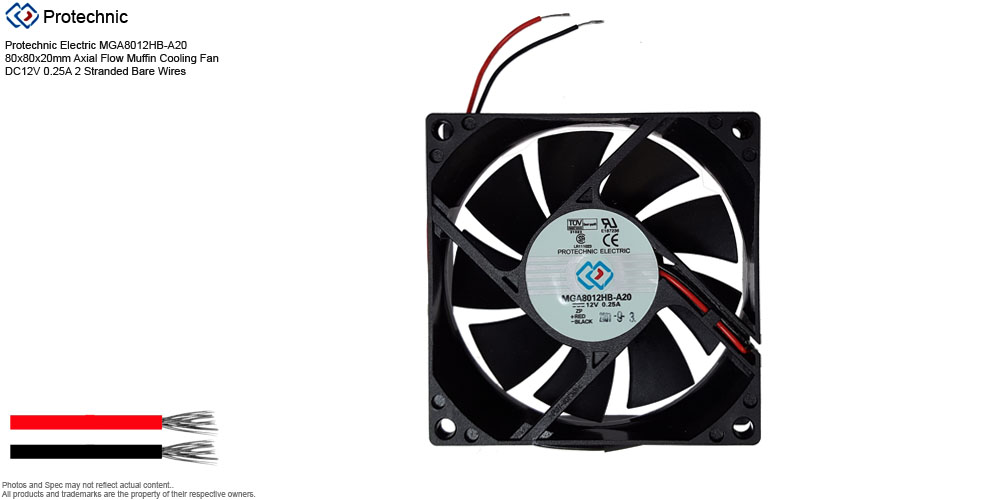

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x20mm Protechnic Electric MGA8012HB-A20 ZP UL E187236 DC12V 0.25A 3W 2-Conductor Stranded Wire 8-inch SKU 210618
• Manufacturer: Protechnic Electric
• Brand or Distributor: Protechnic
• Model: (and/or Compatible, Equivalent, Interchangeable)
  •  Protechnic Electric MGA8012HB-A20 ZP
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x20mm
  • Power Rating: DC12V 0.25A 3W
  • Bearing: Dual Ball Bearing
  • Speed: 3000~3200 RPM
  • Air Flow: 38~42 CFM
  • Noise Level: 34~36 dBA
  • Material: PBT Thermoplastic Polybutylene Terephthalate Glassfiber reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Polybutylene Terephthalate Glassfiber reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Polybutylene Terephthalate Glassfiber reinforced UL 94V-0 Rated
  • Connection: 2-Conductor Stranded Wire
  • Wire Length: 8-inch
• Weight: 2.0 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Protechnic MGA8012HB-A20 ZP is a high-performance 80mm x 80mm x 25mm DC brushless cooling fan designed primarily for server enclosures, power supplies, and industrial cooling solutions.
  • MGA8012HB-A20 ZP Part Number Breakdown:
    • 'MG' Fan Series Magic Series (Brushless DC Motor Fan)
    • 'A' Motor Type Standard Electronic Commutation (DC)
    • '80' Frame Size 80mm width and height
    • '12' Voltage Rated for 12 Volts DC
    • 'H' Speed ClassHigh Speed (versus L for Low, M for Medium, S for Super High)
    • 'B' Bearing Type Ball Bearing (Dual Ball system)
    • '-A20' Thickness & Design 25mm frame thickness (A-series housing revision, 20mm/25mm build envelope)
    • 'ZP' Safety/Function Impedance Protected / Zero Protection (Automatic restart protection if the blades are blocked
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
  • Pulled from unsold computer power supply
  • Serial Number Available or Sold:
    • SN 0110920 Used
