Features:

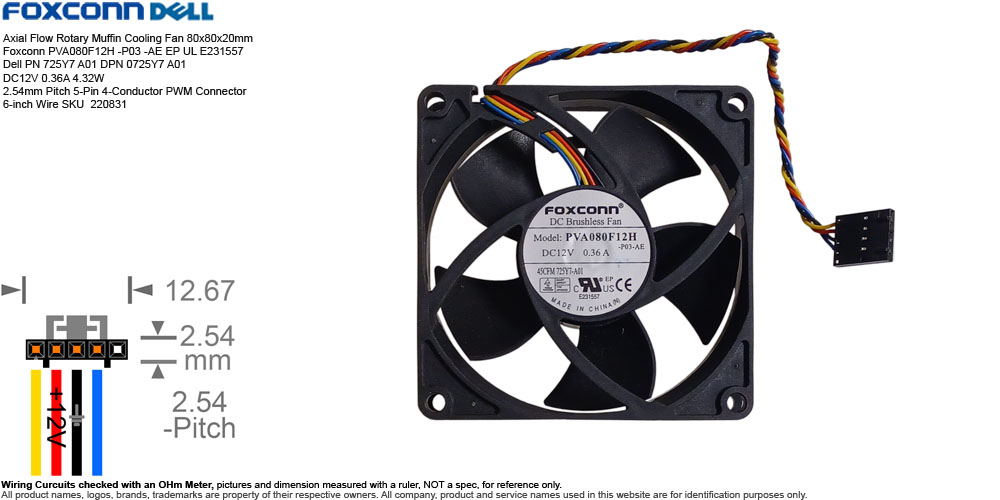

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x20mm Foxconn PVA080F12H -P03 -AE EP UL E231557 Dell PN 725Y7 A01 DPN 0725Y7 A01 DC12V 0.36A 4.32W 2.54mm Pitch 5-Pin 4-Conductor PWM Connector 6-inch Wire SKU 220831
• Manufacturer: Foxconn
• Brand or Distributor: Foxconn / Dell
• Model: (Compatible, Equivalent, & Interchangeable)
• • Foxconn PVA080F12H -P03 -AE EP
  • Dell PN 725Y7 A01
  • DPN 0725Y7 A01
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x20mm
  • Power Rating: DC12V 0.36A 4.32W
  • Bearing: Dual Ball Bearing
  • Speed: 4200 RPM
  • Air Flow: 38 CFM
  • Noise Level: 38~45 dBA
  • Material: PBT Thermoplastic Glassfiber reinforced UL-94V0 Rated (Polybutylene Terephthalate)
    • Frame Housing: PBT Thermoplastic Glassfiber reinforced UL-94V0 Rated (Polybutylene Terephthalate)
    • Impeller Blades: PBT Thermoplastic Glassfiber reinforced UL-94V0 Rated (Polybutylene Terephthalate)
  • Connection: 2.54mm Pitch 5-Pin 4-Conductor PWM Connector
  • Wire Length: 6-inch
• Weight: 2.4 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Foxconn PVA080F12H -P03 -AE EP Dell PN 725Y7 A01 is a high-performance, pulse-width modulation (PWM) cooling fan specifically manufactured by Foxconn as an original equipment manufacturer (OEM) part for Dell corporate desktops. This specific fan assembly is built exclusively for Dell OptiPlex Small Form Factor (SFF) systems. It acts as either the primary CPU heatsink cooler or the main chassis exhaust fan across several generations of corporate hardware, specifically the Dell OptiPlex 390, 790, 990, 3010, 7010, 9010, 3020, 7020, and 9020 SFF models.
  •  Foxconn PVA080F12H -P03 -AE EP Dell PN 725Y7 A01 Part Number Breakdown:
    • 'PVA' Foxconn internal factory code for DC Brushless axial fan family.
    • '080' 80mm outer frame length/width.
    • 'F' 20mm specialized shallow chassis depth profile.
    • '12' Rated for standard 12V DC desktop lines.
    • 'H' High-speed performance tuning (4,200 RPM max limit).
    • '-P03' Third generation internal PCB layout and magnetic stator optimization tweak.
    • '-AE' Customer specific application wiring harness lengths and proprietary pinout sequence.
    • 'EP' Environmental Protection certification tracking (RoHS lead-free validation / Eco-product compliance).
    • Photos are representative of the model and specifications you will receive; however, Dell frequently assigns multiple different Part Numbers (PNs) to the exact same physical part known as "substitutes" or "cross-references", the exact Dell PNs may differ across individual units.
      • '725Y7' The official Dell Part Number used to source and catalog the replacement unit.
      • 'A01' Dell's engineering document control tracking version number for the fan assembly.
  • Pulled from Dell Optiplex 7010 Mini Tower Computer
  • Serial Number Available or Sold:
    • CN-0725Y7-73308-1BF-09EB-A01 Used
    • CN-0725Y7-73308-37I-03XL-A01 Used
    • CN-0725Y7-73308-49P-008T-A01 Used
