Features:

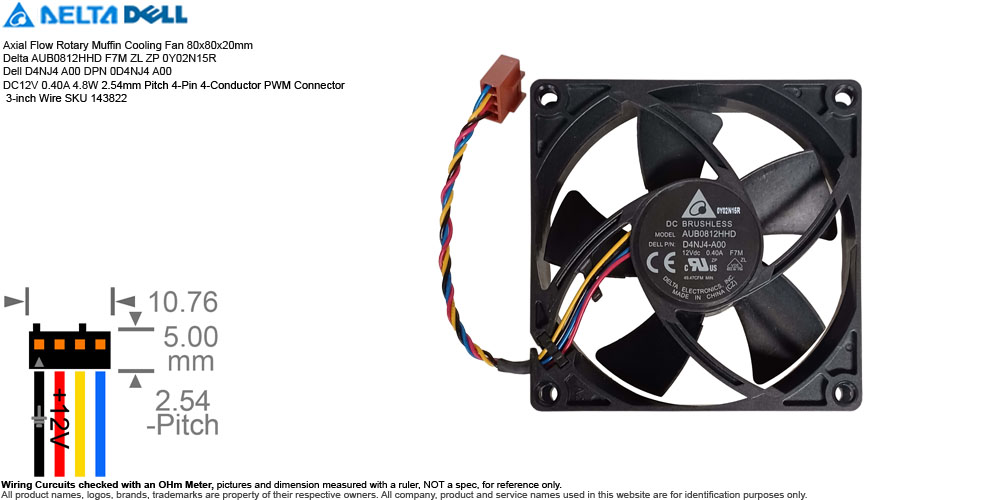

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x20mm Delta AUB0812HHD F7M ZL ZP 0Y02N15R Dell D4NJ4 A00 DPN 0D4NJ4 A00 DC12V 0.40A 4.8W 2.54mm Pitch 4-Pin 4-Conductor PWM Connector 3-inch Wire SKU 143822
• Manufacturer: Delta Electronics Inc.
• Brand or Distributor: Delta / Dell
• Model: (and or compatible)
  • Delta AUB0812HHD F7M ZL ZP
  • Dell Item Identifier 0Y02N15R
  • Dell PN D4NJ4 A00
  • DPN 0D4NJ4 A00
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x20mm
  • Power Rating: DC12V 0.40A 4.8W
  • Bearing: SuperFlo Bearing (Delta's proprietary fluid-dynamic bearing tech designed with an anti-oil-leakage mechanism to offer a significantly longer, quieter lifespan than basic sleeve bearings)
  • Speed: 4500 RPM
  • Air Flow: 51.46 CFM
  • Noise Level: 43.0~44.0 dBA
  • Material: PBT Thermoplastic Glassfiber reinforced UL-94V0 Rated (Polybutylene Terephthalate)
    • Frame Housing: PBT Thermoplastic Glassfiber reinforced UL-94V0 Rated (Polybutylene Terephthalate)
    • Impeller Blades: PBT Thermoplastic Glassfiber reinforced UL-94V0 Rated (Polybutylene Terephthalate)
  • Connection: 2.54mm Pitch 4-Pin 4-Conductor PWM Connector
  • Wire Length: 3-inch
• Weight: 2.1 oz (Estimated Shipping Weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • Delta AUB0812HHD F7M ZL ZP 0Y02N15R (Dell Part Number: 0D4NJ4 / 0Y02N15R) is a high-performance, slim-profile industrial fan designed for tightly packed computer enclosures.
  • Delta AUB0812HHD F7M ZL ZP 0Y02N15R Part Number Breakdown:
    • 'AUB' Identifies Delta’s specialized, long-life SuperFlo fluid bearing design series.
    • '08' Standard 80 mm horizontal and vertical footprint dimension.
    • '12' Designed to draw power from a traditional 12V DC rail source.
    • 'HH' Rated for Delta's "Extra High" rotational velocity tier.
    • 'D' Identifies a 20 mm thickness housing (slimmer than standard 25 mm computer fans).
    • 'F7M' Specifies a dedicated RPM tachometer signal line integrated directly into the custom wiring architecture.
    • 'ZL ZP' Internal factory codes tracking exact plastic composites and the specialized 5-pin latching Dell motherboard plug.
    • '0Y02N15R' Production run traceability sequence tracked by Dell's assembly logistics.
    • Photos are representative of the model and specifications you will receive; however, Dell frequently assigns multiple different Part Numbers (PNs) to the exact same physical part known as "substitutes" or "cross-references", the exact Dell PNs may differ across individual units.
      • 'D4NJ4 A00' The official internal Dell Part Number and revision A00 label used for asset inventories.
  Serial Number Available or Sold:
  • CN-0D4NJ4-DEC00-0B2-10J4-A00 Used
