Features:

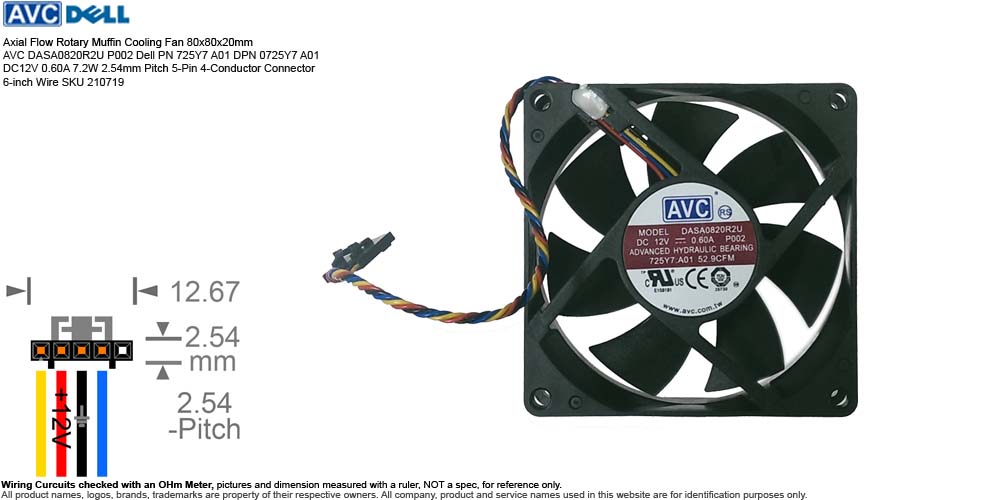

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x20mm AVC DASA0820R2U P002 Dell PN 725Y7 A01 DPN 0725Y7 A01 DC12V 0.60A 7.2W 2.54mm Pitch 5-Pin 4-Conductor Connector 6-inch Wire SKU 210719
• Manufacturer: Asia Vital Components Co., Ltd.
• Brand or Distributor: AVC / Dell
• Model:
  • AVC DASA0820R2U P002
  • Dell PN 725Y7
  • DPN 0725Y7 A01
  • UL E158191
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x20mm
  • Power Rating: DC12V 0.60A 7.2W
  • Bearing: Advanced Hydraulic Bearing
  • Speed: 4000~4500 RPM
  • Air Flow: 52.9 CFM
  • Noise Level: 38~42 dBA
  • Material: PBT Thermoplastic Polybutylene Terephthalate
    • Frame Housing: PBT Thermoplastic Polybutylene Terephthalate
    • Impeller Blades: PBT Thermoplastic Polybutylene Terephthalate
  • Connection: 2.54mm Pitch 5-Pin 4-Conductor Connector
  • Wire Length: 6-inch
• Weight: 2.5 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • The AVC DASA0820R2U P002 is a high-performance, slim-profile 12V DC cooling fan engineered by Asia Vital Components (AVC). It is widely deployed as a proprietary OEM chassis component, most notably for Dell OptiPlex Small Form Factor (SFF) desktops like the 790, 990, and 3040/5040/7040 series.
  • AVC DASA0820R2U P002 Part Number Breakdown:
    • 'DA' Product Series Advanced DC Axial Fan family
    • 'SA' Frame/Motor Type High-efficiency stator/housing design
    • '08' Frame Width 80mm outer dimensions
    • '20' Frame Thickness 20mm thin-profile casing
    • 'R' Voltage Standard 12V DC operating profile
    • '2' Speed Grade High-velocity performance ranking
    • 'U' Speed Sub-Tier Ultra-high output rating (draws 0.60A max)
    • 'P002' OEM Customer/Rev Code Identifies the specific wiring trim, wire length, and the 5-pin Dell proprietary plug connector
  • Pulled from Dell Optiplex 970 990 Computer.
  • Serial Number Available or Sold:
    • CN-0725Y7-72449-234-02HG-A01 Used
    • CN-0725Y7-72449-1C5-054A-A01 Used
