Datasheet:

• ADDA AD0812 (DC12V) / AD0824 (DC24V)
• ADDA Axial Flow Fan

Features:

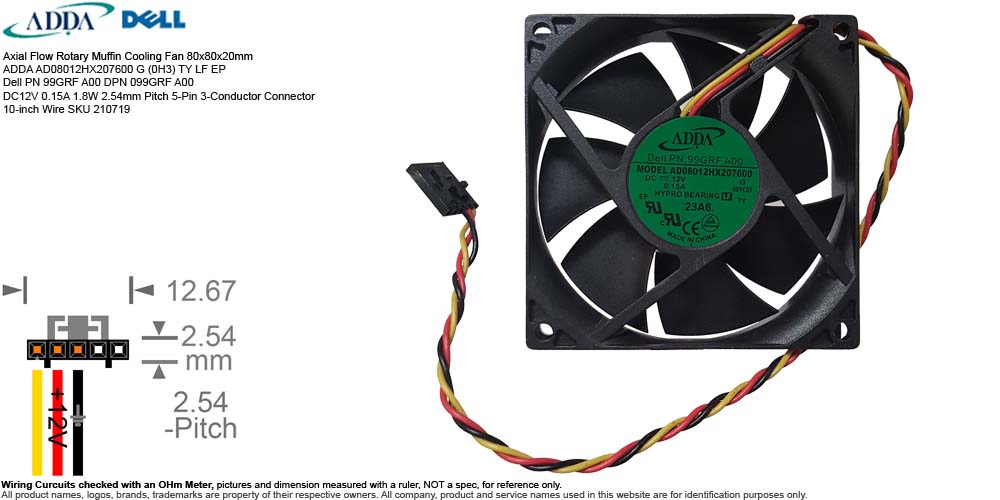

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x20mm ADDA AD08012HX207600 G (0H3) TY LF EP Dell PN 99GRF A00 DPN 099GRF A00 DC12V 0.15A 1.8W 2.54mm Pitch 5-Pin 3-Conductor Connector 10-inch Wire SKU 210719
• Manufacturer: ADDA Corporation
• Brand or Distributor: ADDA
• Model:  (Compatible, Equivalent, & Interchangeable)
  • ADDA AD08012HX207600 G (0H3) TY LF EP
  • Dell PN 99GRF A00
  • DPN 099GRF A00
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x20mm
  • Power Rating: DC12V 0.15A 1.8W
  • Bearing: Hypro Bearing
  • Speed: 3000 RPM
  • Air Flow: 34.13 CFM
  • Noise Level: 33.1 dBA
  • Material: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
  • Connection: 2.54mm Pitch 5-Pin 3-Conductor Connector
  • Wire Length: 10-inch
• Weight: 2.4 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, like new, pulled from unsold new ATX Power Supply.
• Package: Non-Retail Packaging, in Unprinted Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • The ADDA AD08012HX207600 is a 12V DC brushless cooling fan manufactured by ADDA Corporation, a major electronics thermal management provider. This specific part number corresponds to ADDA’s AD8020 series chassis. It is widely used as a factory Original Equipment Manufacturer (OEM) chassis cooling fan inside compact desktop computers, such as the Dell Optiplex 390 DT small form factor PCs.
  • ADDA AD08012HX207600 G (0H3) TY LF EP 23A6 Part Number Breakdown:
    • 'AD' Brand/Series ADDA Corporation Brushless DC Axial Fan.
    • '08' Frame width and height 80mm x 80mm
    • '012' Operating Voltage Designed for a standard 12 Volts DC power rail.
    • 'H' Speed Class High Speed configuration for this thin-frame series
    • 'X' Bearing Mechanics Hypro Bearing (ADDA's specialized fluid/hydrodynamic hybrid).
    • '20' Frame Thickness 20mm depth (a slim-profile fan; standard case fans are 25mm thick).
    • '7600' Motor/Wiring Code Specifies the motor construction and the internal lead configuration (often includes a 3-pin connector with a tachometer/speed sensor wire).
    • 'G' Production Line Code
    • '0H3 TY' Internal Tracking Manufacturer internal production run lot and tracking metrics.
    • 'LF' Environmental Standard Lead-Free manufacturing processing.
    • 'EP' Compliance Marking Eco-Product / Environmental Protection designation (RoHS certified compliant).
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '23A6' Date/Lot CodeProduction batch date code indicating the exact week and factory shift of assembly.
  • Pulled from Dell Optiplex 390 Computer.
  • Serial Number Available or Sold:
    • CN-099GRF-70163-19D-A3DY-A00 SN 0090843 Used
    • CN-099GRF-70163-23A-A1WU-A00 SN 0090760 Used
