Features:

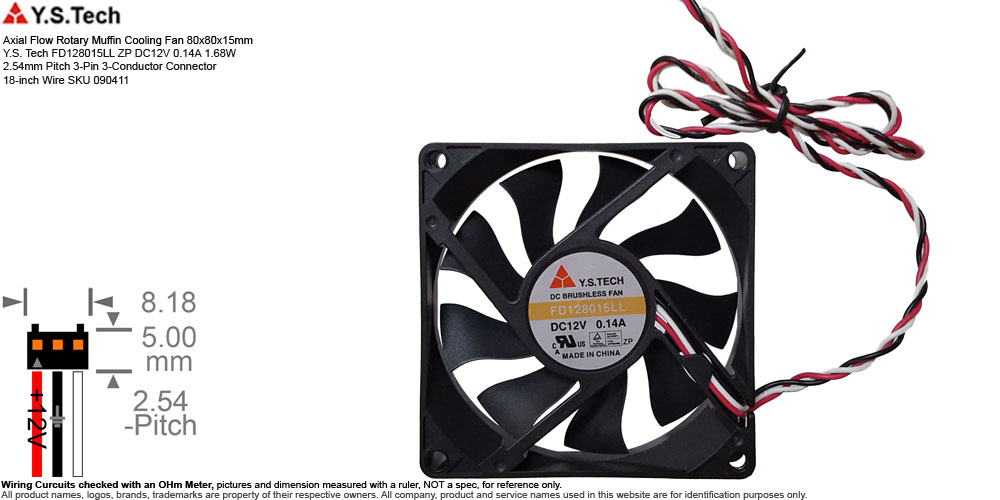

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x15mm Y.S. Tech FD128015LL ZP DC12V 0.14A 1.68W 2.54mm Pitch 3-Pin 3-Conductor Connector 18-inch Wire SKU 090411
• Manufacturer: Y.S. Tech
• Brand: or Distributor: Y.S. Tech
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • FD128015LL ZP
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 80x80x15mm
  • Power Rating: DC12V 0.14A 1.68W
  • Bearing: Sleeve Bearing
  • Speed: 2000 RPM
  • Air Flow: 23.5 CFM
  • Noise Level: 20~22 dB(A)
  • Material: PBT Polybutylene Terephthalate fiberglass reinforced UL 94V-0 rated
    • Frame Housing: Polybutylene Terephthalate (PBT Plastic) reinforced with fiberglass, meeting the UL 94V-0 flammability safety rating
    • Impeller Blades: Companion high-rigidity PBT Plastic (UL 94V-0), dynamically balanced to minimize vibration.
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 18-inch
• Weight: 1.8 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, pulled from unsold computer case. May have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from unsold power supply, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • FD128015LL belongs to Y.S. Tech’s low-noise, slim line cooling family, commonly used in Internal Power Supplies (PSUs), Low-Profile HTPCs & Small Form Factor (SFF) Cases, Network Components & Audio/Video Gear.
  • FD128015LL ZP 3RAMFE 000100 Part Number Breakdown:
    • 'FD' Standard DC Brushless Axial Fan series..
    • '12' 12 Volts DC system operation voltage.
    • '80' 80mm Length x 80mm Width dimensions.
    • '15' 15mm slim-profile depth housing.
    • 'LL' Low-Low Speed performance tuning bracket (engineered for minimum noise floor).
    • 'Z' Specialized proprietary impedance protection or motor control feature set.
    • 'P' Lead-free construction meeting environmental standards (RoHS compliant).
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • ' 3RAMFE' represents a proprietary client specification sub-code and a production sequential lot number. It is used strictly for factory tracking and hardware routing.
      • '000100' is a manufacturing serial block or lot number. If a specific batch of fans faces a factory quality audit, the factory uses this tracking marker to narrow down the precise week, production line shift, and automated assembly station that stamped out the unit.
  • Serial Numbers Available or Sold:
    • Batch 3RAMFE 000100, SN 0090411 Used
