Features:

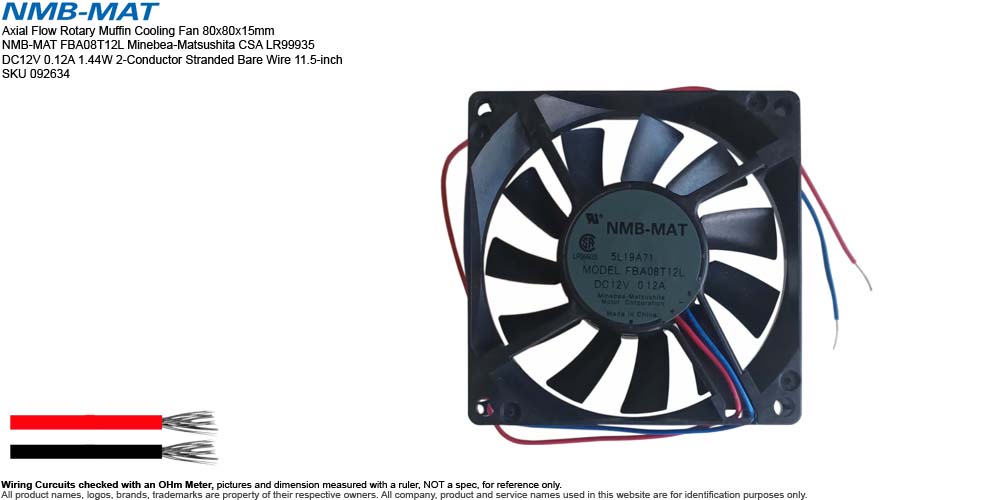

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x15mm NMB-MAT FBA08T12L Minebea-Matsushita CSA LR99935 DC12V 0.12A 1.44W 2-Conductor Stranded Bare Wire 11.5-inch SKU 092634
• Manufacturer: Minebea Co., Ltd
  • Minebea Mitsumi: The official parent company.
  • NMB: Short of Nippon Miniature Bearing.
  • NMB-MAT: a brand name resulting from 2004 joint venture between Minebea and Matsushita (now Panasonic).
  • NMB Technologies: The North American sales and marketing arm of the group.
• Brand: or Distributor: NMB
• Model:  (and/or Compatible, Equivalent, Interchangeable)
  • NMB-MAT FBA08T12L
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x15mm
  • Power Rating: DC12V 0.12A 1.44W
  • Bearing: Hydro-Wave Bearing (HWB) system
  • Speed: 2000 RPM
  • Air Flow: 21.9 CFM
  • Noise Level: 23.0 dBA
  • Material: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
  • Connection: 2-Conductor Stranded Bare Wire
  • Wire Length: 11.5-inch
• Weight: 1.8 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-retail packaging, in unprinted box or plastic bag.
• For used with or pulled from: (for reference only)
  • NMB-MAT FBA08T12L is optimized for silent low-profile cooling where standard 25mm thick desktop fans block internal architecture commonly used in Desktop Power Supplies (PSUs), Small Form Factor (SFF) Cases, Audio & Network Gear.
  • NMB-MAT FBA08T12L 5L19A71 Part Number Breakdown:
    • 'FBA' Fluid Dynamic / Hydro-Wave Bearing DC Axial Fan Series.
    • '08' 80mm Length x 80mm Width exterior housing profile.
    • 'T' 15mm slimline frame thickness configuration.
    • '12' 12 Volts DC system nominal operations.
    • 'L' Low-speed tuning tier curve (optimized for minimal acoustic noise).
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • ' 5L19A71' is an internal manufacturing lot number and trace code used by NMB Technologies (Minebea Mitsumi). It acts as a unique production fingerprint for quality assurance and has zero impact on the mechanical or power specifications of the fan.
  • Serial Number Available or Sold:
    • Batch 5L19A71, SN 0112060 New
    • Batch 5L19A71, SN 0112061 New
    • Batch 5L19A71, SN 0112062 New
