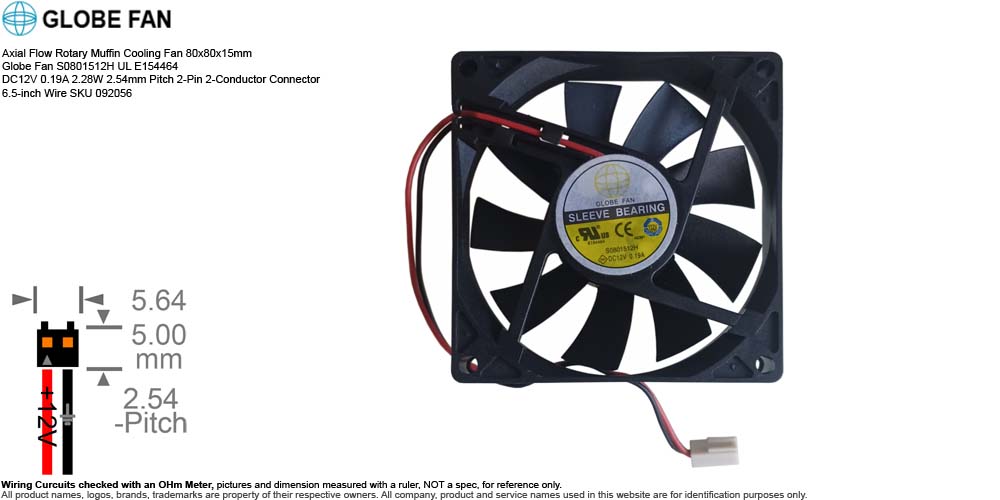

Axial
Flow Rotary Muffin Cooling Fan 80x80x15mm
Globe Fan S0801512H UL E154464 DC12V 0.19A 2.28W
2.54mm Pitch 2-Pin 2-Conductor Connector 6.5-inch Wire
SKU 092056
FN-8015xxx
Features:
- Description:
Axial Flow Rotary Muffin Cooling Fan 80x80x15mm Globe Fan S0801512H
UL E154464 DC12V 0.19A 2.28W 2.54mm Pitch 2-Pin 2-Conductor
Connector 6.5-inch Wire SKU 092056
- Manufacturer:
GlobeFan Technology Co., Ltd.
- Brand or
Distributor: Globe Fan
- Model:
(Compatible,
Equivalent, & Interchangeable)
- Brief Spec.:
- Design: DC Brushless
Cooling Fan
- Fan Size:
80x80x15mm
- Power Rating:
DC12V 0.19A 2.28W
- Bearing:
Sleeve Bearing
- Speed: 3000
RPM
- Air Flow:
36.81 CFM
- Noise
Level: 30.3 dBA
- Material: PBT
Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
-
Frame Housing:
PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
-
Impeller Blades:
PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
- Connection:
2.54mm
Pitch 2-Pin 2-Conductor Connector
- Wire Length:
6.5-inch
- Weight: 1.8 oz
(estimated shipping weight 6 oz)
- Condition: (Subject
to Availability)
- SKU ______A -
Aged
Open Box, not been used, with signs of cosmetic wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller
repackaged.
- SKU ______E -
Excess
Inventory,
not been used, may have signs of age.
- SKU ______P -
For Parts, Condition Vary, Not Eligible for Return or Refund.
- SKU ______O -
Open Box, unused, may have signs of cosmetic wear.
- SKU ______R - Refurbished to
working condition.
- SKU ______U - Used, pulled from
unsold power supply,
may have signs of cosmetic wear.
- Package: Non-Retail
Packaging, in Unprinted Box or Plastic Bag.
- For used with
or pulled from:
(for reference only)
- Globe Fan
S0801512H is an
Internal active
thermal cooling for ultra-compact SFX power supplies, server
blades, and low-profile industrial chassis.
- S0801512H
45391 Part Number Breakdown:
- 'S'
Sleeve Bearing
(B = Ball, C = Ceramic, S = Sleeve)
-
'080'
80 mm
structural width
-
'15'
15 mm
structural thickness (Slim profile)
-
'12'
12 Volts
DC nominal operating voltage
-
'H'
High Speed
class (3,000 RPM performance tier)
-
Photos are representative of the model and specifications
you will receive; however, the exact factory batch codes,
manufacturing dates, and plant location stamps may differ
across individual units.
- '45391'
Custom OEM Identifier
(Specifies exact wire length, connector type, and label
variant for the power supply manufacturer)
- Serial Number
Available or Sold:
|
