Link(s):

• AD08 80x80x15mm Series Specification

Features:

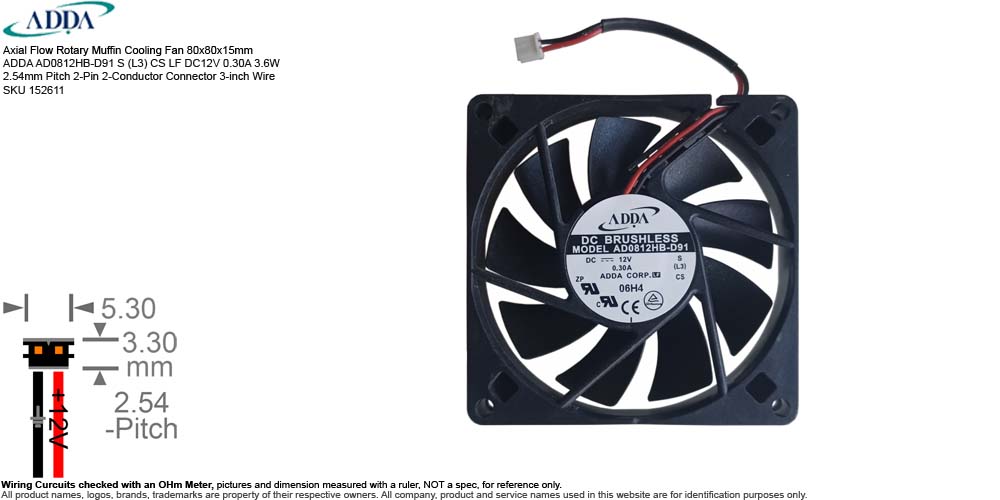

• Description: Axial Flow Rotary Muffin Cooling Fan 80x80x15mm ADDA AD0812HB-D91 S (L3) CS LF DC12V 0.30A 3.6W 2.54mm Pitch 2-Pin 2-Conductor Connector 3-inch Wire SKU 152611
• Manufacturer: ADDA Corporation
• Brand or Distributor: ADDA
• Model:  (Compatible, Equivalent, & Interchangeable)
  • AD0812HB-D91 S (L3) CS LF
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 80x80x15mm
  • Power Rating: DC12V 0.30A 3.6W
  • Bearing: Dual Ball Bearing
  • Speed: 3200 RPM
  • Air Flow: 29.9 CFM
  • Noise Level: 33.4 dBA
  • Material: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Polybutylene Terephthalate UL 94V-0 Rated
  • Connection: 2.54mm Pitch 2-Pin 2-Conductor Connector
  • Wire Length: 3-inch
• Weight: 1.8 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from unsold power supply, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • The ADDA AD0812HB-D91 is a slimline, high-speed variant is designed specifically for tight spatial clearance, industrial power systems, OEM Desktop Power Supplies, Low-Profile Network Equipment, Compact Electronics.
  • AD0812HB-D91 S (L3) CS LF 06H4 Part Number Breakdown:
    • 'AD' Brand/Series ADDA Corporation Brushless DC Axial Fan.
    • '08' 80mm Length x 80mm Width exterior geometry.
    • '12' 12 Volts DC system operational input.
    • 'H' High-speed performance tuning tier.
    • 'B' Dual Ball Bearing layout.
    • '-D91' 15mm low-profile frame thickness and internal generation assignment.
    • 'S (L3) CS' Custom configuration parameters specifying the short 3-inch wire length and proprietary 2-pin harness.
    • 'LF' Environmental Standard Lead-Free manufacturing processing.
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '06H4' Manufacturing lot number and date code used entirely for factory quality control tracking.
  • Pulled from Dell Optiplex 780 Power Supply L235P-01
  • Serial Number Available or Sold:
    • SN 011824 Used
