Features:

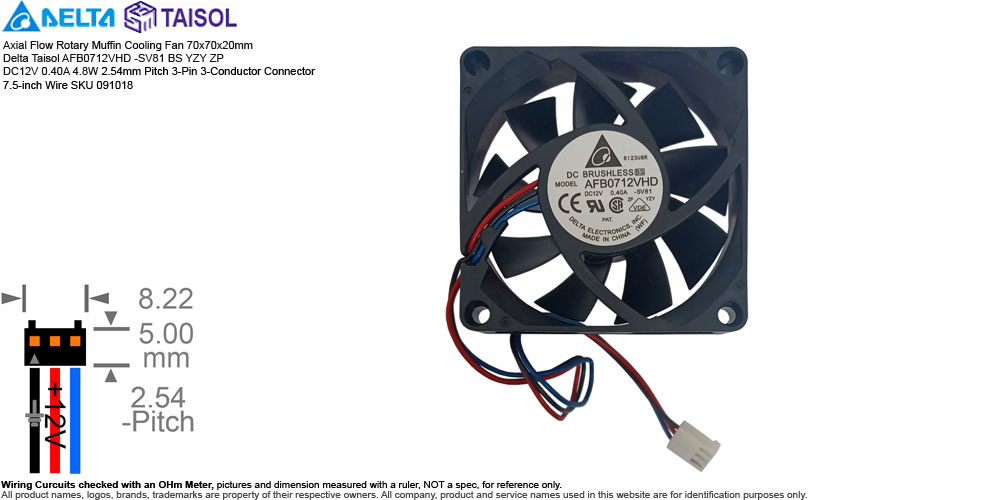

• Description: Axial Flow Rotary Muffin Cooling Fan 70x70x20mm Delta AFB0712VHD -SV81 BS YZY ZP Taisol Electronic DC12V 0.40A 4.8W 2.54mm Pitch 3-Pin 3-Conductor Connector 7.5-inch Wire SKU 091018
• Manufacturer: Delta Electronics Inc.
• Brand or Distributor: Delta / Taisol Electronic
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Delta AFB0712VHD -SV81 BS YZY ZP
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 70x70x20mm
  • Power Rating: DC12V 0.40A 4.8W
  • Bearing: Dual Ball Bearing
  • Speed: 5000 RPM
  • Air Flow: 46.86~46.9 CFM
  • Noise Level: 44.3 dBA
  • Material: High flame-retardant self-extinguishing UL 94V-0 molded structural plastic.
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Wire Length: 7.5-inch
• Weight: 2.2 oz (Estimated Shipping Weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Delta AFB0712VHD -SV81 is a high-performance, industrial-grade DC brushless tube axial cooling fan measuring 70x70x20 mm, engineered primarily for server chassis, desktops, and dense power supply cooling, Primarily for enterprise servers, industrial networking enclosures, and high-heat PC components demanding consistent static pressure (0.285 in H₂O)
  • AFB0712VHD -SV81 BS YZY ZP 1086A-1B Part Number Breakdown:
    • 'A' Core product identity denoting a DC Brushless Axial Fan.
    • 'F' Frame form structural architecture series indicator.
    • 'B' Dual-ball bearing construction class.
    • '07' Mechanical chassis frame outer length and height dimensions (70 mm).
    • '12' Rated input operating line potential (12 Volts DC).
    • 'VH' Extreme-High (Very High) volume operational speed classification output rank.
    • 'D' Standard casing width design footprint tier identifier (20 mm thickness).
    • '-SV81' Customer / Internal Revision Code: Dictates wire length, custom pinout connectors, or specific hardware mounting profiles assigned by Delta Electronics.
    • 'YZY ZP' Factory Control/Traceability Marks: Denotes assembly lines, compliance checks, and specific manufacturing dates
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '086A-1B' Taisol specification standard, matching the fan footprint directly to the bracket frame and thermal substrate.
  • Serial Number Available or Sold:
    • SN 0099226 Used
