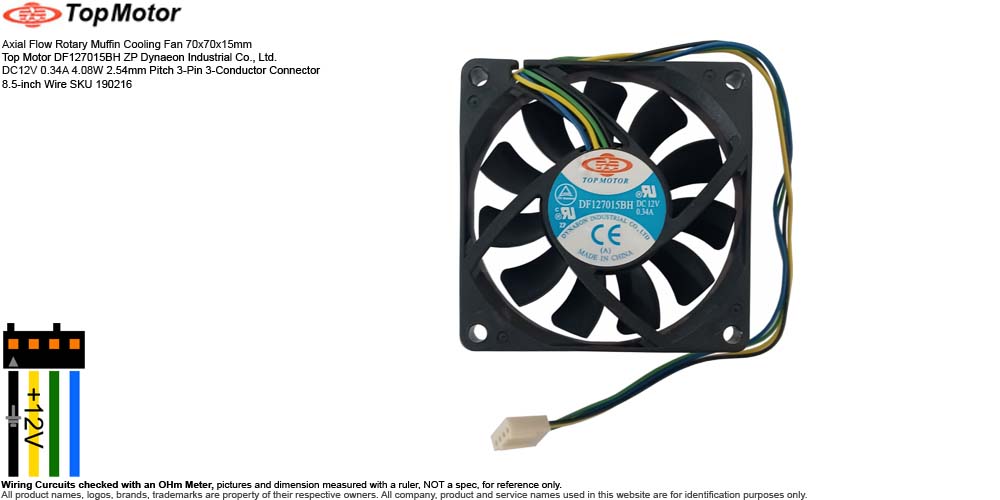

Axial
Flow Rotary Muffin Cooling Fan 70x70x15mm
Top Motor DF127015BH ZP Dynaeon Industrial Co., Ltd.
DC12V 0.34A 4.08W 2.54mm Pitch 3-Pin 3-Conductor Connector 8.5-inch Wire
SKU 190216
FN-xxx
Features:
- Description:
Axial Flow Rotary Muffin Cooling Fan 70x70x15mm Top Motor DF127015BH
ZP Dynaeon Industrial Co., Ltd. DC12V 0.34A 4.08W 2.54mm Pitch 3-Pin
3-Conductor Connector 8.5-inch Wire SKU 190216
- Manufacturer:
Dynaeon Industrial
Co., Ltd. (the parent manufacturing arm)
- Brand and
Distributor:
- Dynatron Corp. (the
global brand)
- Top
Motor (the product line)
- Model: (Compatible,
Equivalent, & Interchangeable)
- Brief Spec.:
- Design: DC Brushless Fan
- Fan Size:
70x70x15mm
- Power Rating:
DC12V 0.34A 4.08W
- Bearing: Dual Ball Bearing
- Speed:
5000 RPM
- Air Flow:
39.31 CFM
- Noise Level:
39.8 dB(A)
- Material:
Glass-Fiber reinforced
PBT Plastic
UL94V-0 rated
-
Frame Housing:
Glass-Fiber reinforced
PBT Plastic
UL94V-0 rated.
-
Impeller Blades:
Glass-Fiber reinforced
PBT Plastic
UL94V-0 rated.
- Connector:
2.54mm Pitch 4-Pin 4-Conductor PWM Connector
- Wire Length:
8.5-inch
-
Photos are representative of the model and specifications you
will receive; however, the exact factory batch codes,
manufacturing dates, and plant location stamps may differ across
individual units.
- Weight: 1.8 oz
(estimated shipping weight 6 oz)
- Condition: (Subject
to Availability)
Photos are representative of the model and specifications you
will receive; however, the exact factory batch codes, manufacturing
dates, and plant location stamps may differ across individual units.
- SKU ______A -
Aged
Open Box, unused excess inventory, may have signs of cosmetic
wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller
repackaged.
- SKU ______E -
Excess
Inventory,
not been used, may have signs of age.
- SKU ______P -
For Parts, Condition Vary, Not Eligible for Return or Refund.
- SKU ______O -
Open Box, unused, may have signs of cosmetic wear.
- SKU ______R - Refurbished to
working condition.
- SKU ______U -
Used,
may have
signs of cosmetic wear.
- Package: Non-Retail
Packaging, in Unprinted Reused Box and Plastic Bag.
- For used with
or pulled from:
(for reference only)
- The Top Motor
DF127015BH is a
slim-profile, high-performance 70mm DC axial cooling fan
manufactured by
Dynaeon (Dynatron)
under their "Top Motor" label. It is heavily utilized as an
upgraded, long-life replacement fan for low-profile CPU
heatsinks (such as stock AMD or Intel coolers) and dense
server/industrial enclosures.
-
DF127015BH ZP Part Number Breakdown:
- 'D'
Direct Current (DC
Brushless Motor System)
core architecture identifier.
- 'F' Axial
Fan
mechanical construction classification type.
-
'12'
Input
electrical running potential requirement (12
Volts DC).
- '70' Geometric
outer length and width frame dimension (70
mm).
-
'15'
Physical
housing thickness/depth profile (15
mm).
-
'B'
Integrated
Ball Bearing
motor suspension design system.
-
'H'
High-Speed
velocity optimization performance tier output rank.
-
'(PWMG)'
Optional
sub-suffix tracking notation certifying
Pulse Width Modulation control
capability and specific factory internal grounding/connector
specifications.
-
'ZP'
Impedance Protected
validation safety stamp, certifying that the circuit limits
the internal thermal build-up dynamically if the impeller
blades are bound up.
[1,
2,
3, 4,
5]
-
Photos are representative of the model and specifications
you will receive; however, the exact factory batch codes,
manufacturing dates, and plant location stamps may differ
across individual units.
- Serial Number
Available or Sold:
- SN 0112064 New
- SN 0112065 New
- SN 0112066 New
|
