Features:

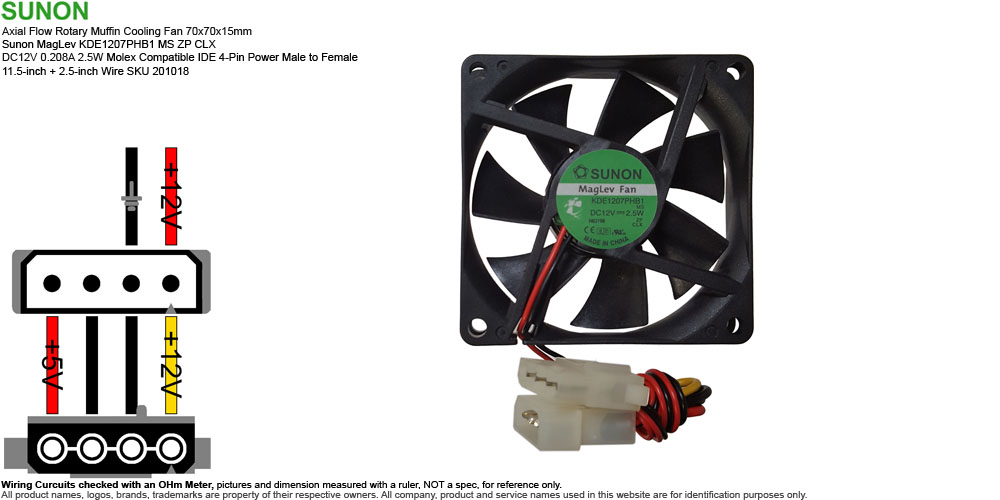

• Description: Axial Flow Rotary Muffin Cooling Fan 70x70x15mm Sunon MagLev KDE1207PHB1 MS ZP CLX DC12V 0.208A 2.5W Molex Compatible IDE 4-Pin Power Male to Female 11.5-inch + 2.5-inch Wire SKU 201018
• Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
• Brand: or Distributor: Sunon
• Model:
  • Sunon MagLev KDE1207PHB1 MS ZP CLX
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 70x70x15mm
  • Power Rating: DC12V 0.208A 2.5W
  • Bearing: MagLev Vapo-Bearing with Dual Ball Acceleration
  • Speed: 4600 RPM
  • Air Flow: 37.8 CFM
  • Noise Level: 38~41 dB(A)
  • Material: PBT Polybutylene Terephthalate fiberglass reinforced UL 94V-0 rated
    • Frame Housing: Polybutylene Terephthalate (PBT Plastic) reinforced with fiberglass, meeting the UL 94V-0 flammability safety rating
    • Impeller Blades: Companion high-rigidity PBT Plastic (UL 94V-0), dynamically balanced to minimize vibration.
  • Connection: Molex Compatible IDE 4-Pin Power Male to Female
  • Overall Wire Length: 14-inch
    • 11.5-inch: from Fan to 4-pin Male Connector
    • 2.5-inch: from 4-pin Male Connector to 4-pin Female Connector
• Weight: 2.1 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from unused computer cases, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sunon MagLev KDE1207PHB1 is a specialized, slim profile DC brushless tube axial cooling fan measuring 70x70x15 mm. It features Sunon's proprietary magnetic levitation system paired with a secondary backup bearing to drive reliable, low-friction cooling in legacy desktop processors, narrow network switches, and space-constrained enclosures.
  • Sunon MagLev KDE1207PHB1 MS ZP CLX H63198 Part Number Breakdown:
    • 'KD' Fan Series DC Brushless Fan Series..
    • 'E' Motor Type MagLev (Magnetic Levitation) design framework.
    • '12' Power Rating 12 Volts DC nominal operational voltage input.
    • '07' Dimensions 70mm x 70mm frame footprint length and width.
    • 'P' Housing Style PBT Plastic outer frame body shell.
    • 'H' Profile Depth 15mm slim-profile casing thickness.
    • 'B' Bearing Type Dual Ball Bearing structural assembly reinforcement.
    • '1' Speed Class High-Performance (Level 1) maximum motor velocity ranking.
    • 'MS' Product Gen MagLev Design Generation / Large Hub internal motor structure.
    • 'ZP CLX' ComplianceFactory-assigned environmental protection standards (such as impedance protection and RoHS compliance checking).
    • Photos are representative of the model and specifications you will receive; however, it is normal and very common for Sunon to use slightly different custom Part Identifiers, even if the wire length and connectors appear identical to the naked eye.
      • 'H63198K' Part Identifier OEM Customer Specific Suffix. Dictates a 4-pin Molex peripheral pass-thru connection wire harness instead of raw bare leads.
• Pulled from unused computer cases.
• Serial Number Available or Sold:
  • SN 0083104 New
  • SN 0083104 New
