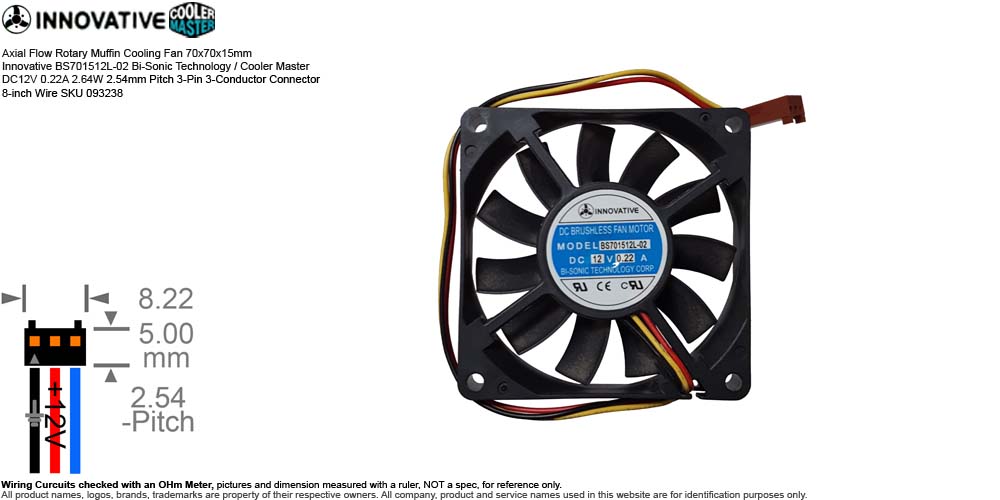

Axial Flow Rotary Muffin Cooling Fan 70x70x15mm
Innovative BS701512L-02 Bi-Sonic Technology / Cooler Master
DC12V 0.22A 2.64W 2.54mm Pitch 3-Pin 3-Conductor Connector 8-inch Wire
SKU 093238
FN-7015-xxx

Features:

• Description: Axial Flow Rotary Muffin Cooling Fan 70x70x15mm Innovative BS701512L-02 Bi-Sonic Technology / Cooler Master DC12V 0.22A 2.64W 2.54mm Pitch 3-Pin 3-Conductor Connector 8-inch Wire SKU 093238
• Manufacturer: Bi-Sonic Technology
• Brand or Distributor: Innovative / Bi-Sonic / Cooler Master
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Innovative BS701512L-02
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 70x70x15mm
  • Power Rating: DC12V 0.22A 2.64W
  • Bearing: Sleeve Bearing
  • Speed: 3000~3500 RPM
  • Air Flow: 22.6~27.7 CFM
  • Noise Level: 26.5~31 dBA
  • Material: Fiber reinforced UL-94V0 Rated Plastic
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Wire Length: 8-inch
• Weight: 1.8 oz (Estimated Shipping Weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, pulled from unsold Cooler Master CPU Cooler. May have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Innovative BS701512L-02 is a low-profile, slim DC brushless axial cooling fan measuring 70x70x15 mm. It is widely recognized as a primary OEM replacement fan for legacy Cooler Master CPU heatsinks, desktop chassis, and compact electronic equipment. While the unit is labeled "Innovative" or cross-listed under hardware collections, the core specification profile maps identically to the industrial Bi-Sonic BS7015 series platform.
  • BS701512L-02 3300 Part Number Breakdown:
    • 'BS' DC Brushless Sleeve Bearing Series. (Often swaps with "BP" for dual-ball variants).
    • '70' 70mm x 70mm outer frame footprint (length and width).
    • '15' 15mm slim frame thickness depth.
    • '12' 2 Volts DC nominal operational input.
    • 'L' "Low" or "Low-Medium" motor speed configuration class.
    • '-02' Suffix determining the specific 3-wire arrangement, cable length, and standard 3-pin motherboard connector.
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '3300' is an internal factory batch tracking number or a production date window code signifying the specific assembly shift.
  • Pulled from unsold Cooler Master CPU Cooler.
  • Serial Number Available or Sold:
    • SN 0093238 Unused Open Box
