Features:

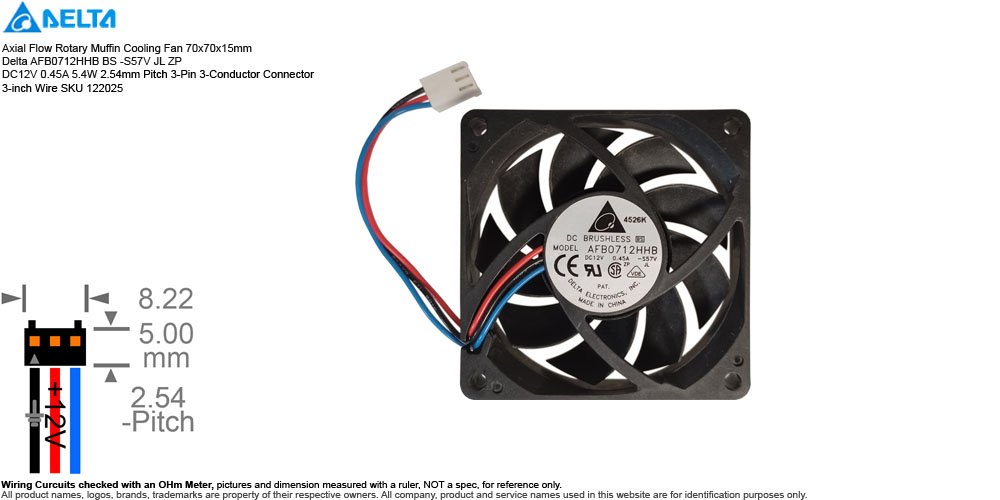

• Description: Axial Flow Rotary Muffin Cooling Fan 70x70x15mm Delta AFB0712HHB BS -S57V JL ZP DC12V 0.45A 5.4W 2.54mm Pitch 3-Pin 3-Conductor Connector 3-inch Wire SKU 122025
• Manufacturer: Delta Electronics, Inc.
• Brand or Distributor: Delta
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Delta AFB0712HHB BS -S57V JL ZP
• Brief Spec.:
  • Design: DC Brushless Cooling Fan
  • Fan Size: 70x70x15mm
  • Power Rating: DC12V 0.45A 5.4W
  • Bearing: Dual Ball Bearing
  • Speed: 4300 RPM
  • Air Flow: 37.54 CFM
  • Noise Level: 38.5 dBA
  • Material: PBT Thermoplastic Glassfiber reinforced UL-94V0 Rated (Polybutylene Terephthalate)
    • Frame Housing: PBT Thermoplastic Glassfiber reinforced UL-94V0 Rated (Polybutylene Terephthalate)
    • Impeller Blades: PBT Thermoplastic Glassfiber reinforced UL-94V0 Rated (Polybutylene Terephthalate)
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Wire Length: 3-inch
• Weight: 1.6 oz (Estimated Shipping Weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
  • For used with or pulled from: (for reference only)
    • The Delta AFB0712HHB -S57V is a slim profile, industrial-grade DC brushless axial cooling fan measuring 70x70x15 mm. It is widely deployed as an active OEM cooling solution for desktop computer processors (such as legacy AMD CPU heatsinks) and dense server components.
    • Delta AFB0712HHB BS -S57V JL ZP 4526K Part Number Breakdown:
      • 'A' Core product identity denoting a DC Brushless Axial Fan.
      • 'F' Frame form structural architecture series indicator.
      • 'B' Dual-ball bearing construction class.
      • '07' Mechanical chassis frame outer length and height dimensions (70 mm).
      • '12' Rated input operating line potential (12 Volts DC).
      • 'HH' "Super High" operational motor speed grading scale.
      • 'B' Standard casing width design footprint tier identifier (20 mm thickness).
      • '-S57V' This variant is explicitly configured as a 3-wire fan layout, differentiating it from the standard 4-wire PWM models in the core AFB series, a 4-wire PWM custom layout for specific server/PC motherboards.
      • 'JL ZP' Production site manufacturing code, regulatory check stamp, and environmental certification indicators.
      • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
        • '4526K' Factory production batch string denoting the specific assembly run date and line number.
    • Serial Number Available or Sold:
      • SN 0083354 Used
