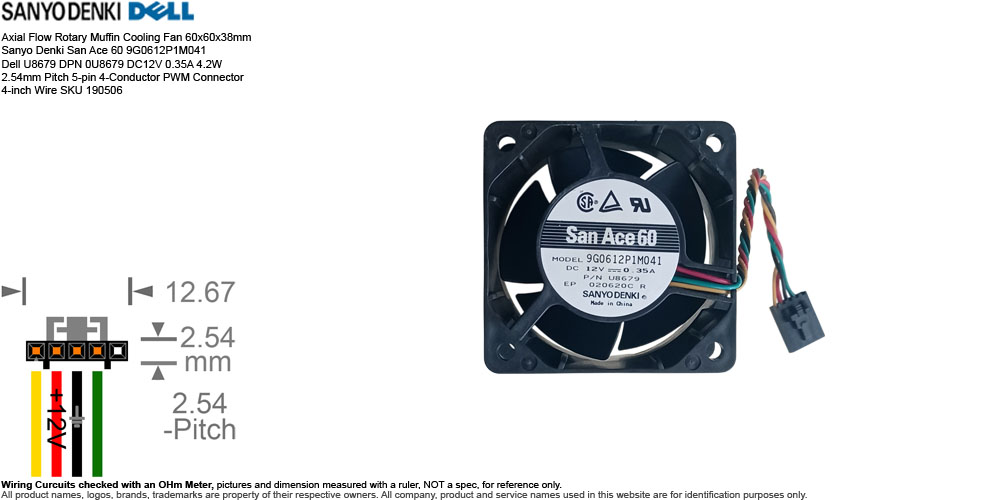

Axial
Flow Rotary Muffin Cooling Fan 60x60x38mm
Sanyo Denki San Ace 60 9G0612P1M041 Dell U8679 DPN 0U8679 DC12V 0.35A
4.2W
2.54mm Pitch 5-pin 4-Conductor PWM Connector 4-inch Wire
SKU 190506
FN-xxx
Features:
- Description: Axial
Flow Rotary Muffin Cooling Fan 60x60x38mm Sanyo Denki San Ace 60
9G0612P1M041 Dell U8679 DPN 0U8679 DC12V 0.35A 4.2W 2.54mm Pitch
5-pin 4-Conductor PWM Connector 4-inch Wire SKU 190506
- Manufacturer:
Sanyo Denki Co.,
Ltd.
- Brand: or
Distributor: Sanyo
Denki / Dell
- Model:
(and/or Compatible,
Equivalent, Interchangeable)
- Sanyo Denki San
Ace 60 9G0612P1M041
- Dell U8679
- DPN 0U8679
- Brief Spec.:
- Design: DC Brushless Fan
- Fan Size:
60x60x38mm
- Power Rating:
DC12V 0.35A
4.2W
- Bearing: Dual Ball Bearing
- Speed:
3100~4000 RPM
- Air Flow:
25~31 CFM
- Noise Level:
36~43 dB(A)
- Material:
Heavy-duty UL flame-retardant
rated Plastic
-
Frame Housing:
: Heavy-duty
molded
Plastic (UL 94V-0).
This structural polymer possesses high self-extinguishing
safety classifications to pass strict industrial fire codes.
-
Impeller Blades:
Reinforced
Plastic (UL 94V-1 or higher).
The black blades are structurally counter-curved to
eliminate blade flexing and warping under aerodynamic
stress.
- Connector:
2.54mm Pitch 5-Pin 4-Conductor PWM Connector
- Wire Length:
4-inch
- Weight: 3.6 oz
(estimated shipping weight 8 oz)
- Condition: (Subject
to Availability)
- SKU ______A -
Aged
Open Box, unused excess inventory, may have signs of cosmetic
wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller
repackaged.
- SKU ______E -
Excess
Inventory,
not been used, may have signs of age.
- SKU ______P -
For Parts, Condition Vary, Not Eligible for Return or Refund.
- SKU ______O -
Open Box, unused, may have signs of cosmetic wear.
- SKU ______R - Refurbished to
working condition.
- SKU ______U -
Used,
may have
signs of cosmetic wear.
- Package: Non-Retail
Packaging, in Unprinted Reused Box and Plastic Bag.
- For used with
or pulled from:
(for reference only)
- The Sanyo Denki
San Ace 60 9G0612P1M041
is a
high-performance, extra-thick 12V DC axial cooling fan. Just
like the
M051
model variant, this specific
M041
hardware configuration was built by
Sanyo Denki
as a highly tailored component for
Dell enterprise server and desktop hardware.
- 9G0612P1M041 P/N
U8679 EP 020620C
Part Number Breakdown:
- '9G'
Identifies the primary
High Airflow / Low Power Consumption
structural fan framework series.
- '06' Geometric
casing outer footprint marker (60
mm × 60 mm).
-
'12'
Rated line
operating voltage potential (12
Volts DC).
-
'P'
Integrates a
PWM Control Function
with a built-in pulse speed tachometer sensor
-
'1'
Casing depth
classification indicator (38
mm thickness profile).
-
'M'
Medium-speed
factory motor winding output calibration rank.
-
'041'
Customer Pinout Spec
A proprietary configuration variant suffix.
While the
051
model dictates a specific latch style, the
041
code designates an alternate custom harness assembly
variation
utilizing the distinct
Dell 5-pin, 4-conductor wiring connector block.
-
'P/N U8679'
The
proprietary internal tracking number mapped to an
OEM equipment manufacturer's
internal bill of materials.
Dell frequently assigns multiple different
Part Numbers (PNs) to the exact same physical part known as
"substitutes" or "cross-references",
the exact Dell PNs may differ across individual units.
- 'EP' Standing
for
Eco Products,
It guarantees the
fan materials comply with strict international environmental
and hazardous materials guidelines.
- '020620C'
The granular factory production line stamp confirming the
manufacturing date (June
20, 2002)
Photos are representative of the model and specifications
you will receive; however, the exact factory batch codes,
manufacturing dates, and plant location stamps may differ
across individual units.
- Pulled from:
- Dell DCTR Optiplex
GX620 Computer.
- Dell DCTR Optiplex SX280 Computer.
- Serial Number
Available or Sold:
|
