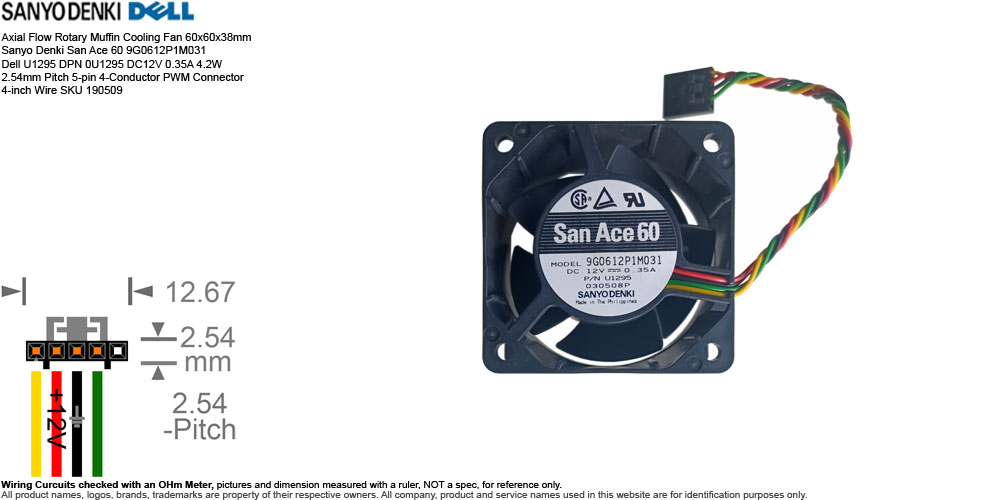

Axial
Flow Rotary Muffin Cooling Fan 60x60x38mm
Sanyo Denki San Ace 60 9G0612P1M031 Dell U1295 DPN 0U1295 DC12V 0.35A
4.2W
2.54mm Pitch 5-pin 4-Conductor PWM Connector 4-inch Wire
SKU 190509
FN-xxx
Features:
- Description: Axial
Flow Rotary Muffin Cooling Fan 60x60x38mm Sanyo Denki San Ace 60
9G0612P1M031 Dell U1295 DPN 0U1295 DC12V 0.35A 4.2W 2.54mm Pitch
5-pin 4-Conductor PWM Connector 4-inch Wire SKU 190509
- Manufacturer:
Sanyo Denki Co.,
Ltd.
- Brand: or
Distributor: Sanyo
Denki / Dell
- Model:
(and/or Compatible,
Equivalent, Interchangeable)
- Sanyo Denki San
Ace 60 9G0612P1M031
- Dell U1295
- DPN 0U1295
- Brief Spec.:
- Design: DC Brushless Fan
- Fan Size:
60x60x38mm
- Power Rating:
DC12V 0.35A
4.2W
- Bearing: Dual Ball Bearing
- Speed:
5000 RPM
- Air Flow:
38.5 CFM
- Noise Level:
38.5 dB(A)
- Material:
Heavy-duty UL flame-retardant
rated Plastic
-
Frame Housing:
: Heavy-duty
molded
Plastic (UL 94V-0).
This structural polymer possesses high self-extinguishing
safety classifications to pass strict industrial fire codes.
-
Impeller Blades:
Reinforced
Plastic (UL 94V-1 or higher).
The black blades are structurally counter-curved to
eliminate blade flexing and warping under aerodynamic
stress.
- Connector:
2.54mm Pitch 5-Pin 4-Conductor PWM Connector
- Wire Length:
4-inch
- Weight: 3.6 oz
(estimated shipping weight 8 oz)
- Condition: (Subject
to Availability)
- SKU ______A -
Aged
Open Box, unused excess inventory, may have signs of cosmetic
wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller
repackaged.
- SKU ______E -
Excess
Inventory,
not been used, may have signs of age.
- SKU ______P -
For Parts, Condition Vary, Not Eligible for Return or Refund.
- SKU ______O -
Open Box, unused, may have signs of cosmetic wear.
- SKU ______R - Refurbished to
working condition.
- SKU ______U -
Used,
may have
signs of cosmetic wear.
- Package: Non-Retail
Packaging, in Unprinted Reused Box and Plastic Bag.
- For used with
or pulled from:
(for reference only)
- The Sanyo Denki
San Ace 60 9G0612P1M031
is a
commercial-grade, high-density 60mm DC axial cooling fan
engineered specifically for continuous, mission-critical heat
dissipation in enterprise servers, telecommunications
enclosures, and industrial power arrays
- 9G0612P1M031 P/N
U1295 030508P
Part Number Breakdown:
- '9G'
Identifies the primary
High Airflow / Low Power Consumption
structural fan framework series.
- '06' Geometric
casing outer footprint marker (60
mm × 60 mm).
-
'12'
Rated line
operating voltage potential (12
Volts DC).
-
'P'
Integrates a
PWM Control Function
with a built-in pulse speed tachometer sensor
-
'1'
Casing depth
classification indicator (38
mm thickness profile).
-
'M'
Medium-speed
factory motor winding output calibration rank.
-
'031'
Customer Pinout Spec
A proprietary configuration variant suffix.
While
M041
and
M051
utilize a 5-pin terminal housing, the
031
designation dictates a Sanyo Denki factory modification
specifying a standard 4-pin inter-lock wiring connector
mapped directly to Dell's motherboard specifications.
-
'P/N U1295'
The
proprietary internal tracking number mapped to an
OEM equipment manufacturer's
internal bill of materials.
Dell frequently assigns multiple different
Part Numbers (PNs) to the exact same physical part known as
"substitutes" or "cross-references",
the exact Dell PNs may differ across individual units.
- 'EP' Standing
for
Eco Products,
It guarantees the
fan materials comply with strict international environmental
and hazardous materials guidelines.
- '030508P'
Manufactured in the year
2003,
assembled during the month of
May,
completed final verification testing on the
8th day of the month,
the
auditing code mapping the unit's final quality check to
Factory Assembly Shift / Line P.
Photos are representative of the model and specifications
you will receive; however, the exact factory batch codes,
manufacturing dates, and plant location stamps may differ
across individual units.
- Pulled from:
- Dell DCTR Optiplex SX280 Computer.
- Serial Number
Available or Sold:
|
