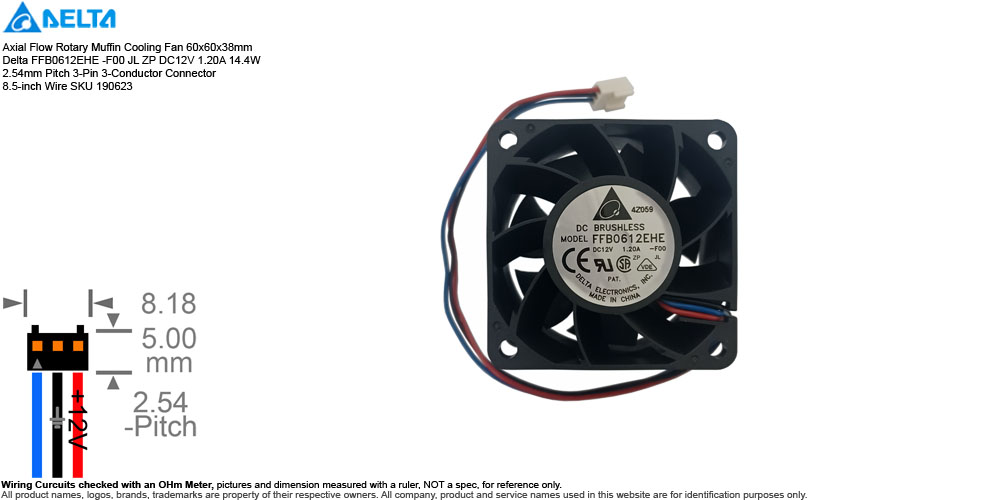

Axial
Flow Rotary Muffin Cooling Fan 60x60x38mm
Delta FFB0612EHE -F00 JL ZP DC12V 1.20A 14.4W
2.54mm Pitch 3-Pin 3-Conductor Connector 8.5-inch Wire
SKU 190623
FN-xxx
Features:
- Description: Axial
Flow Rotary Muffin Cooling Fan 60x60x38mm Delta FFB0612EHE -F00 JL
ZP DC12V 1.20A 14.4W 2.54mm Pitch 3-Pin 3-Conductor Connector
8.5-inch Wire SKU 190623
- Manufacturer:
Delta Electronics Inc.
- Brand: or
Distributor: Delta /
Intel
- Model:
(and/or Compatible,
Equivalent, Interchangeable)
- Delta FFB0612EHE
-F00 JL ZP
- Brief Spec.:
- Design: DC Brushless Fan
- Fan Size:
60x60x38mm
- Power Rating:
DC12V 1.20A
14.4W
- Bearing:
Dual Ball Bearings
(Maintenance-free)
- Speed:
8000 RPM
- Air Flow:
50.2 CFM
- Noise Level:
54.5 dB(A)
- Material:
Plastic (UL 94V-0)
flame-retardant
-
Frame Housing:
:
Plastic (UL 94V-0)
flame-retardant
-
Impeller Blades:
Plastic (UL 94V-0)
flame-retardant
- Connector:
2.54mm Pitch 3-Pin 3-Conductor Connector
- Wire Length:
8.5-inch
- Weight: 3.7 oz
(estimated shipping weight 8 oz)
- Condition: (Subject
to Availability)
- SKU ______A -
Aged
Open Box, unused excess inventory, may have signs of cosmetic
wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller
repackaged.
- SKU ______E -
Excess
Inventory,
not been used, may have signs of age.
- SKU ______P -
For Parts, Condition Vary, Not Eligible for Return or Refund.
- SKU ______O -
Open Box, unused, may have signs of cosmetic wear.
- SKU ______R - Refurbished to
working condition.
- SKU ______U -
Used,
may have
signs of cosmetic wear.
- Package: Non-Retail
Packaging, in Unprinted Reused Box and Plastic Bag.
- For used with
or pulled from:
(for reference only)
- The Delta
FFB0612EHE
is a
highly efficient, extreme-performance axial DC cooling fan
widely used for server systems, telecom equipment, and dense
industrial machinery. This specific model is a high-static
pressure, high-airflow "violent" fan. It is built exclusively
for
enterprise servers, network switch racks, power supplies, and
high-heat industrial enclosures
where maximum heat dissipation is needed and high noise levels
are acceptable
- FFB0612EHE -F00 JL
ZP 4Z059 Part Number Breakdown:
- 'FFB'
High-performance tube axial fan series featuring internal
directional vane guides to maximize static pressure.
- '06' Indicates
a
60mm width and 60mm height.
-
'12'
Operates on
a standard
12V DC power supply input.
-
'EHE'
Stands for
Extra High Efficiency.
This dictates the 8,000 RPM performance tuning.
-
'-F00'
A
specialized hardware suffix indicating a
3-wire layout with a Frequency Generator (Tachometer)
output. This third wire (usually blue or yellow) transmits a
square-wave speed signal back to your motherboard or
controller to monitor the fan's RPM and alert the system if
the fan stops spinning.
-
'JL ZP'
Regulatory
internal factory routing codes. This certifies internal
factory compliance, tracking variants, or specific
manufacturing plant assignments (such as Delta's production
hubs in Thailand or China).
- '4Z059'
The manufacturing date footprint, decoding directly to a
production completion date of
December 5th, 2014 (or 2024) on Factory Assembly Line 9
Photos are representative of the model and specifications
you will receive; however, the exact factory batch codes,
manufacturing dates, and plant location stamps may differ
across individual units.
- Pulled from
Intel Entry Server with SE7501HG2 Server Board.
- Serial Number
Available or Sold:
|
