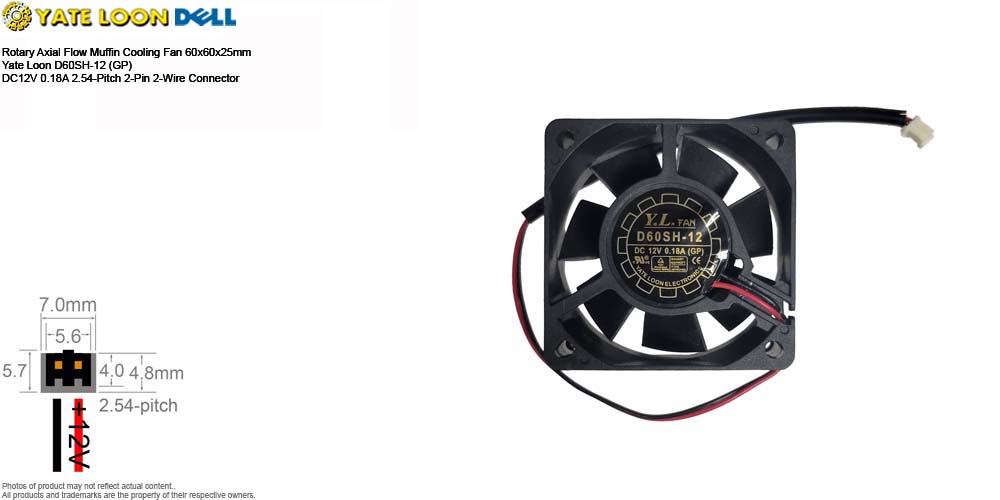

Axial Flow Rotary Muffin Cooling Fan 60x60x25mm
Y. L. Fan Yate Loon D60SH-12 (GP) DC12V 0.18A 2.16W
2.00mm Pitch 2-pin 2-Conductor Connector 9-inch Wire
SKU 210927
FN-6025-xxx

Features:

  • Description: Axial Flow Rotary Muffin Cooling Fan 60x60x25mm Y. L. Fan Yate Loon D60SH-12 (GP) DC12V 0.18A 2.16W 2.00mm Pitch 2-pin 2-Conductor Connector 9-inch Wire SKU 210927
  • Manufacturer: Yate Loon Electronics Co., Ltd.
  • Brand: or Distributor: Y. L. Fan / Dell
  • Model: (and/or Compatible, Equivalent, Interchangeable)
    • Y. L. Fan D60SH-12 (GP)
  • Brief Spec.:
    • Design: DC Brushless Fan
    • Fan Size: 60x60x25mm
    • Power Rating: DC12V 0.18A 2.16W
    • Bearing: Sleeve Bearing
    • Speed: 3700 RPM
    • Air Flow: 21 CFM
    • Noise Level: 34 dB(A)
    • Material: PBT thermoplastic UL 94V-0 flammability rating.
      • Frame Housing: PBT thermoplastic UL 94V-0 flammability rating.
      • Impeller Blades: PBT thermoplastic UL 94V-0 flammability rating.
    • Connector: 2.00mm Pitch 2-Pin 2-Conductor Connector
    • Wire Length: 9-inch
  • Weight: 1.4 oz (estimated shipping weight 6 oz)
  • Condition: (Subject to Availability)
    • SKU ______A - Aged Open Box, unused excess inventory, may have  signs of cosmetic wear.
    • SKU ______N - New
    • SKU ______B - Bulk New, seller repackaged.
    • SKU ______E - Excess Inventory, not been used, may have signs of age.
    • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
    • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
    • SKU ______R - Refurbished to working condition.
    • SKU ______U - Used, may have signs of cosmetic wear.
  • Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
  • For used with or pulled from: (for reference only)
    • The Y. L. Fan D60SH-12 is a compact, high-speed 60mm axial cooling fan widely used for heat dissipation in tight spaces, such as PC cases, servers, and power supplies, widely found in certain Dell OptiPlex desktop power supplies.
    • D60SH-12 (GP) Part Number Breakdown:
      • 'D' DC (Direct Current) Brushless Fan.
      • '60' 60mm x 60mm outer dimensions.
      • 'S' Sleeve bearing (Note: B indicates Ball Bearing).
      • 'H' High Speed (3,700 RPM). (L = Low, M = Medium).
      • '12' 12 Volts DC operating voltage.
      • 'GP' Green Product (RoHS compliant environmental certification).
    • Pulled from Dell Power Supply Model AC240AS-00 (API P/N: PC1002), Dell PN: RV1C4, DP/N: 0RV1C4
    • Serial Number Available or Sold:
      • SN 0091101 Used
      • SN 0091102 Used
      • SN 0091103 Used
