Features:

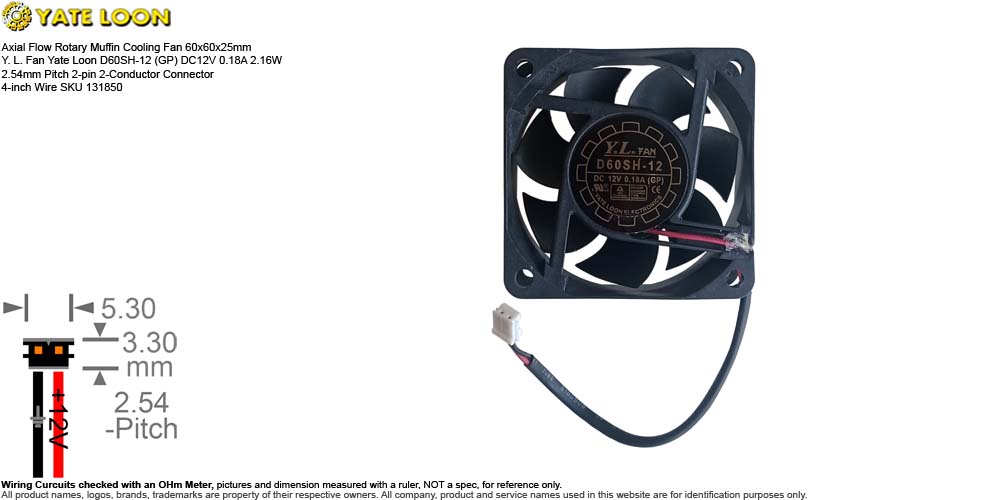

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x25mm Y. L. Fan Yate Loon D60SH-12 (GP) DC12V 0.18A 2.16W 2.54mm Pitch 2-pin 2-Conductor Connector 4-inch Wire SKU 131850
• Manufacturer: Yate Loon Electronics Co., Ltd.
• Brand: or Distributor: Y. L. Fan / Dell
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Y. L. Fan D60SH-12 (GP)
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x25mm
  • Power Rating: DC12V 0.18A 2.16W
  • Bearing: Sleeve Bearing
  • Speed: 3700 RPM
  • Air Flow: 21 CFM
  • Noise Level: 34 dB(A)
  • Material: PBT thermoplastic UL 94V-0 flammability rating.
    • Frame Housing: PBT thermoplastic UL 94V-0 flammability rating.
    • Impeller Blades: PBT thermoplastic UL 94V-0 flammability rating.
  • Connector: 2.54mm Pitch 2-Pin 2-Conductor Connector
  • Wire Length: 4-inch
• Weight: 1.4 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, unused excess inventory, may have  signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Y. L. Fan D60SH-12 is a compact, high-speed 60mm axial cooling fan widely used for heat dissipation in tight spaces, such as PC cases, servers, and power supplies, widely found in certain Dell OptiPlex desktop power supplies.
  • D60SH-12 (GP) Part Number Breakdown:
    • 'D' DC (Direct Current) Brushless Fan.
    • '60' 60mm x 60mm outer dimensions.
    • 'S' Sleeve bearing (Note: B indicates Ball Bearing).
    • 'H' High Speed (3,700 RPM). (L = Low, M = Medium).
    • '12' 12 Volts DC operating voltage.
    • 'GP' Green Product (RoHS compliant environmental certification).
  • Pulled from Dell Optiplex Power Supply.
  • Serial Number Available or Sold:
    • SN 0078270 Used
