Features:

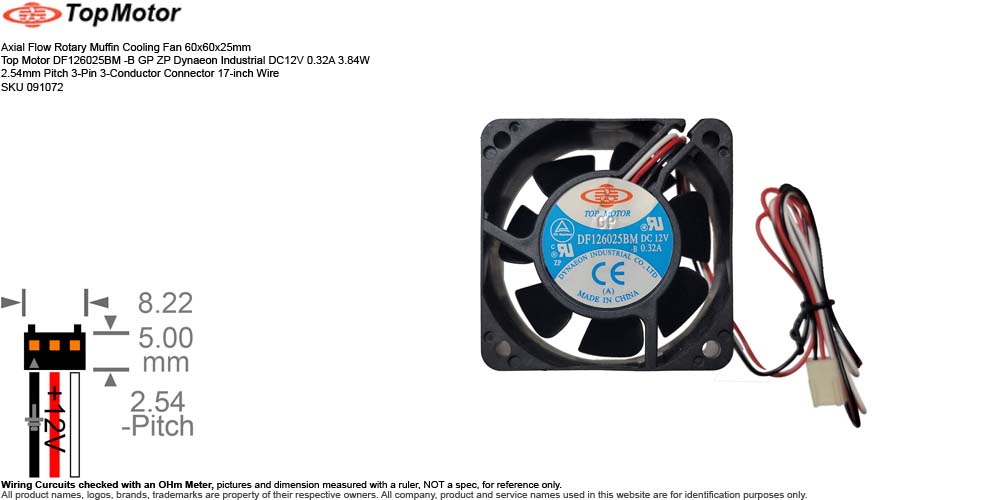

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x25mm Top Motor DF126025BM -B GP ZP Dynaeon Industrial DC12V 0.32A 3.84W 2.54mm Pitch 3-Pin 3-Conductor Connector 17-inch Wire SKU 091072
• Manufacturer: Dynaeon Industrial Co., Ltd. (the parent manufacturing arm)
• Brand and Distributor:
  • Dynatron Corp. (the global brand)
  • Top Motor (the product line)
• Model: (Compatible, Equivalent, & Interchangeable)
  • DF126025BM -B GP ZP
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x25mm
  • Power Rating: DC12V 0.32A 3.84W
  • Bearing: Double Ball Bearing
  • Speed: 7000 RPM
  • Air Flow: 38.28 CFM
  • Noise Level: 48.1 dB(A)
  • Material: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 17-inch
• Weight: 2.1 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, Unused, originally bulk in master carton, seller repackaged.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), (may have or with) signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Top Motor DF126025SM is a loud, high-pitched industrial fan peaking at 48.1 dBA, engineered primarily for enterprise environments. Optimized for 1U/2U server chassis, dense network switches, compact routers, CPU heatsinks, and small-form-factor industrial enclosures requiring heavy-duty localized thermal management
  • DF126025BM -B GP ZP Part Number Breakdown:
    • 'DF' DC Axial Flow Fan Series.
    • '12' Operates on standard 12V DC input voltage.
    • '60' 60mm Frame Width / Height.
    • '25' 25mm Frame Depth (Thickness).
    • 'B' Ball Bearing (Specifically Double-Ball).
    • 'M' Medium-Speed tier profile
    • '-B' Internal factory engineering revision code designating specific electrical/wire termination layouts (often 3-wire with a tachometer/RPM sensor output).
    • 'GP' Green Product. Signifies 100% full compliance with international RoHS environmental standards (restricting lead, cadmium, and mercury).
    • 'ZP' Impedance Protected. The motor coil circuitry incorporates built-in thermal resistance protection, preventing the fan from catching fire or shorting out completely if the impeller blade gets physically blocked or jammed.
  • Serial Number Available or Sold:
    • SN 0091072~0091077 New
