Features:

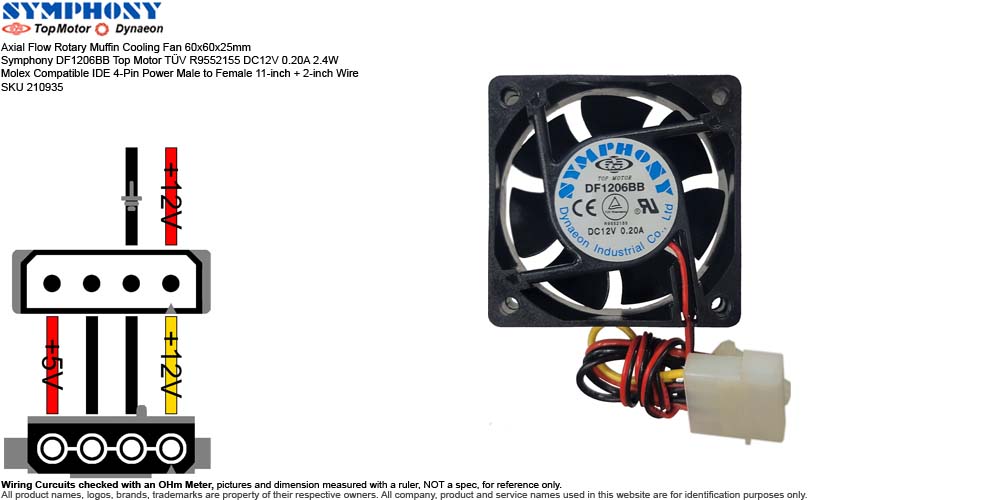

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x25mm Symphony DF1206BB Top Motor TÜV R9552155 DC12V 0.20A 2.4W Molex Compatible IDE 4-Pin Power Male to Female 11-inch + 2-inch Wire SKU 210935
• Manufacturer: Dynaeon Industrial Co., Ltd.
• Brand and Distributor:
  • Symphony
  • Dynatron Corp. (the global brand)
  • Top Motor (the product line)
• Model: (Compatible, Equivalent, & Interchangeable)
  • DF1206BB
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x25mm
  • Power Rating: DC12V 0.20A 2.4W
  • Bearing: Double Ball Bearing
  • Speed: 4500~5000 RPM +/- 10%
  • Air Flow: 19~21 CFM
  • Noise Level: 33~35 dB(A)
  • Material: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
  • Connection: Molex Compatible IDE 4-Pin Power Male to Female
  • Overall Wire Length: 13-inch
    • 11 inch - from Fan 2-Wire to Molex Equivalent 5.08-Pitch 4-Pin 4-Wire Male Connector
    • 2 inch - from Molex Equivalent 5.08-Pitch 4-Pin 4-Wire Male to Female Connector
• Weight: 2.5 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, Unused, originally bulk in master carton, seller repackaged.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, (Condition Vary), (may have or with) signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Symphony Top Motor DF1206BB configured in a 60x60x25mm full-thickness frame is a specialized legacy cooling component. In Top Motor’s engineering cross-reference catalog, this exact model is structurally identical to the DF126025BM line, using the "DF1206BB (25mm)" designation for OEM manufacturing orders
  • DF1206BB Part Number Breakdown:
    • 'DF' DC Axial Flow Fan Series.
    • '12' Engineered for a standard 12V DC operational envelope.
    • '06' 60mm Width & Height designation.
    • 'B' Double Ball Bearing system.
    • 'B' Medium Speed Tier (Cross-references to the retail model letter "M"). Under Dynatron's "Blue Sticker" label standard, "B" delivers standard medium-high velocity.
  • Serial Number Available or Sold:
    • SN 0091111~0091113 New
