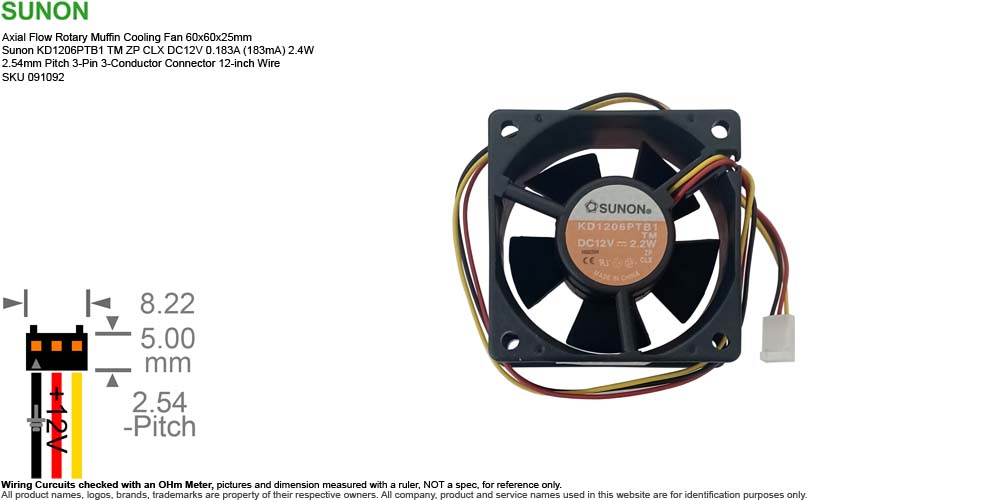

Axial Flow Rotary Muffin Cooling Fan 60x60x25mm Sunon KD1206PTB1 TM ZP CLX DC12V 0.183A (183mA) 2.4W 2.54mm Pitch 3-Pin 3-Conductor Connector 12-inch Wire SKU 091092

Axial Flow Rotary Muffin Cooling Fan 60x60x25mm Sunon KD1206PTB1 TM ZP CLX DC12V 0.183A (183mA) 2.4W 2.54mm Pitch 3-Pin 3-Conductor Connector 12-inch Wire SKU 091092
FN-6025-xxx

Features:

Description: Axial Flow Rotary Muffin Cooling Fan 60x60x25mm Sunon KD1206PTB1 TM ZP CLX DC12V 0.183A (183mA) 2.4W 2.54mm Pitch 3-Pin 3-Conductor Connector 12-inch Wire SKU 091092
Manufacturer: Sunonwealth Electric Machine Industry Co., Ltd.
Brand: or Distributor: Sunon
Model: (and/or Compatible, Equivalent, Interchangeable)
- Sunon KD1206PTB1 TM ZP CLX
Brief Spec.:
- Design: DC Brushless Fan
- Fan Size: 60x60x25mm
- Power Rating: DC12V 0.183A (183mA) 2.4W
- Bearing: Dual Ball Bearing
- Speed: 4300~4500 RPM +/-10%
- Air Flow: 22.5~23.5 CFM
- Noise Level: 34 dB(A)
- Material: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
  - Frame Housing: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
  - Impeller Blades: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
- Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
- Overall Wire Length: 12-inch
Weight: 2.2 oz (estimated shipping weight 6 oz)
Condition: (Subject to Availability)
- SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
- SKU ______N - New
- SKU ______B - Bulk New, seller repackaged.
- SKU ______E - Excess Inventory, not been used, may have signs of age.
- SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
- SKU ______O - Open Box, unused, may have signs of cosmetic wear.
- SKU ______R - Refurbished to working condition.
- SKU ______U - Used, pulled from unused computer cases, may have signs of cosmetic wear.
Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
For used with or pulled from: (for reference only)
- The Sunon KD1206PTB1 is a high-performance, industrial-grade DC brushless fan built for exceptional thermal reliability. It balances high static pressure with structural durability, making it a staple for hardware that requires continuous, 24/7 cooling. Commonly utilized in server power supplies (PSUs), 2U rackmount network appliances, industrial automation control boxes, medical electronics, and premium desktop computer chassis (such as CLX custom gaming systems).
- KD1206PTB1 TM ZP CLX H5835H Part Number Breakdown:
  - 'KD' DC Brushless Fan Series (Standard Performance Motor).
  - '12' Operates on a standard 12V DC electrical loop.
  - '06' 60mm Frame Width and Height.
  - 'P' 25mm Frame Casing Depth (Thickness).
  - 'T' Tube Axial type structure (Standard square outer housing).
  - 'B' Ball Bearing (Specifically Double-Ball).
  - '1' High Speed tier designation within this specific motor class.
  - TM' Tachometer / Speed Sensor Signal. This 3-wire system sends RPM feedback data to the system motherboard or fan controller to monitor for fan failure.
  - 'ZP' Impedance Protected. The motor circuitry includes built-in thermal resistance to protect the coils from burning out or melting if a stray cable physically jams the blades.
  - 'CLX' Custom Customer Specification. This flags a specific wire length, terminal connector type, or packaging run ordered by system integrators like CLX Gaming Systems or communications manufacturers.
  - Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
    - 'H5835H' Factory Lot Tracking Number. This represents the manufacturing batch and internal production date code for quality control and warranty tracking.
- Pulled from unused computer cases.
- Serial Number Available or Sold:
  - Batch H5835H, SN 0078531 New
  - Batch H5835H, SN 0078532 New
  - Batch H5835H, SN 0078533 New
  - Batch H5835H, SN 0078534 New
  - Batch H5835H, SN 0078535 New
  - Batch H5835H, SN 0078536 New
  - Batch H5835H, SN 0078537 New
  - Batch H5835H, SN 0078538 New
  - Batch H5835H, SN 0078539 New
  - Batch H5835H, SN 0078540 New
  - Batch H5835H, SN 0078541 New
  - Batch H5835H, SN 0078542 New
  - Batch H5835H, SN 0078543 New
  - Batch H5835H, SN 0078544 New
  - Batch H5835H, SN 0078545 New
  - Batch H5835H, SN 0078546 New
  - Batch H5835H, SN 0078547 New
  - Batch H5835H, SN 0078548 New
  - Batch H5835H, SN 0078549 New
  - Batch H5835H, SN 0078550 New
