Features:

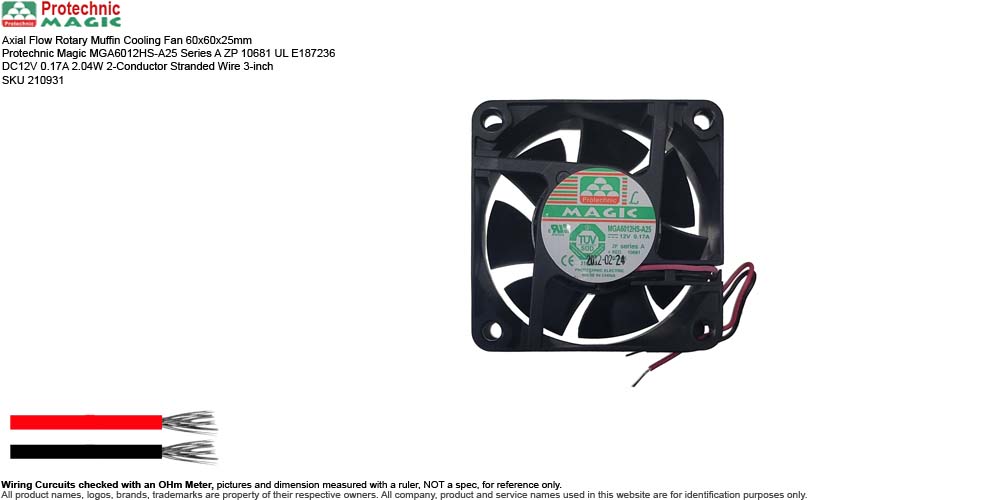

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x25mm Protechnic Magic MGA6012HS-A25 Series A ZP 10681 UL E187236 DC12V 0.17A 2.04W 2-Conductor Stranded Wire 3-inch SKU 210931
• Manufacturer: Protechnic Electronic
• Brand or Distributor: Protechnic / Magic
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • MGA6012HS-A25 Series A ZP 10681
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x25mm
  • Power Rating: DC12V 0.17A 2.04W
  • Bearing: Sleeve Bearing
  • Speed: 4800 RPM
  • Air Flow: 24.93 CFM
  • Noise Level: 34.1 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2-Conductor Stranded Bare Wire
  • Wire Length: 3-inch
• Weight: 1.9 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The MGA6012HS-A25 is a High static pressure relative to its 60mm size, locked-rotor auto-restart safety circuitry, and glass-fiber reinforced structural integrity.
  • MGA6012HS-A25 Series A ZP 10681 2012-02 24 Part Number Breakdown: Extensively deployed as an internal heat-extraction component inside PC Desktop Power Supplies (PSUs), network switches, server chassis, commercial DVR/NVR surveillance units, and compact industrial power converters
    • 'M' Fan Series, Magic Series (Protechnic’s baseline DC brushless axial fan lineup)
    • 'G' Frame Profile, Denotes a standard square chassis profile featuring structural corner flanges.
    • 'A' Motor/Housing Modifier, Represents a specific internal mechanical layout and design generation.
    • '60' Dimensions, Measures exactly 60mm wide by 60mm high.
    • '12' Voltage, 12 Volts DC operating voltage
    • 'H' Speed Rating, Designates High-Speed performance class.
    • 'S' Bearing Code, Identifies the internal mechanism as a Sleeve Bearing assembly.
    • 'A25' Thickness & Step — Sets the physical frame depth at exactly 25mm.
    • 'Series A' Production Generation — Indicates the original baseline electronic circuit and structural rev.
    • 'ZP' Impedance Protection — Abbreviation for Zero Power safety risk. If the blades become locked or obstructed, the electrical impedance automatically prevents overheating to stop the motor coils from melting or causing a fire.
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '10681' OEM Batch Code, an internal tracking or client-specific build sequence used by Protechnic.
      • '2012-02' Indicates a precise manufacturing production date of February 24, 2012.
      • '24' Internal manufacturing line or shift inspector code.
  • Pulled from Dell Power Supply Model H24QAS-00, UP/N: D240A002L, Part Number 3WN11, DPN: 03WN11
  • Serial Number Available or Sold:
    • SN 0091078 Used
    • SN 0091079 Used
    • SN 0091080 Used
    • SN 0091081 Used
    • SN 0091082 Used
    • SN 0091083 Used
    • SN 0091084 Used
    • SN 0091085 Used
    • SN 0091086 Used
    • SN 0091087 Used
    • SN 0091088 Used
    • SN 0091089 Used
