Features:

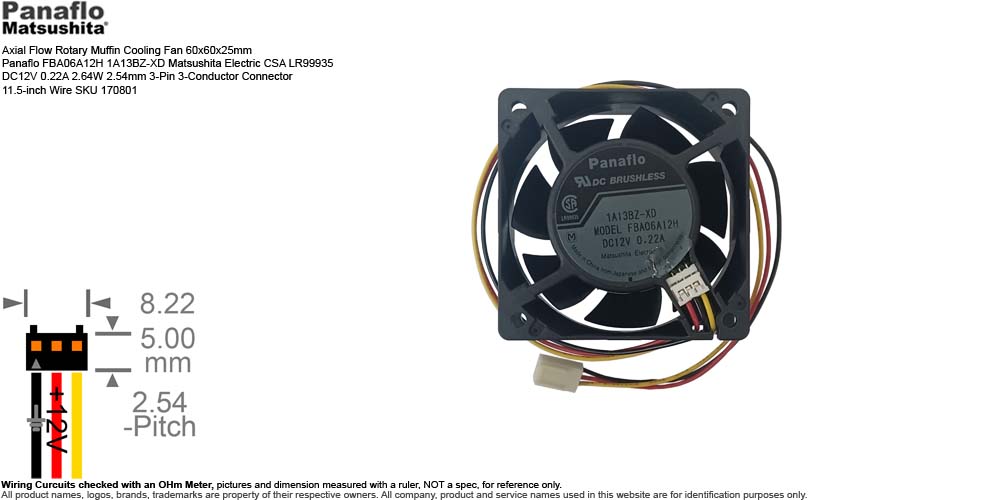

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x25mm Panaflo FBA06A12H 1A13BZ-XD Matsushita Electric CSA LR99935 DC12V 0.22A 2.64W 2.54mm 3-Pin 3-Conductor Connector 11.5-inch Wire SKU 170801
• Manufacturer: Matsushita (now Panasonic)
  • Minebea Mitsumi: The official parent company.
  • NMB: Short of Nippon Miniature Bearing.
  • NMB-MAT: a brand name resulting from 2004 joint venture between Minebea and Matsushita (now Panasonic).
  • NMB Technologies: The North American sales and marketing arm of the group.
• Brand: or Distributor: Panaflo / Matsushita
• Model:
  • Panaflo FBA06A12H
  • Matsushita Electric CSA LR99935
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x25mm
  • Power Rating: DC12V 0.22A 2.64W
  • Bearing: Hydro Wave Bearing (HWB) Panaflo's flagship tech solves standard sleeve bearing friction.
    The thrust plate "floats" on a constantly circulating film of oil pumped by the rotating shaft. This minimizes mechanical contact, drastically lowers noise, and maximizes lifespan.
  • Speed: 4200 RPM
  • Air Flow: 19.1~19.2 CFM
  • Noise Level: 32 dB(A)
  • Material: High-grade synthetic UL94V-0 plastic
  • Connector: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Wire Length: 11.5-inch
• Weight: 2.7 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, pulled from working environment, current condition unknown. Not eligible for return or refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • Panaflo FBA06A12H is a high-performance 80mm x 80mm x 25mm industrial DC axial fan most famously used as the custom hot-swappable enterprise cooling fan assembly for Cisco 2800 / 3800 series routers.
  • FBA06A12H 1A13BZ-XD Part Number Breakdown:
    • 'FB' Panaflo DC Brushless Fan series.
    • 'A' Axial flow pattern.
    • '06' Frame width/size code (60mm).
    • 'A' Thickness housing code (25.5mm).
    • '12' Nominal operating voltage (12V DC).
    • 'H' Speed designation (High speed, 4200 RPM).
    • '1A13BZ-XD' Suffix Configuration
      • '1' Single-pack or standard commercial packaging configuration.
      • 'A' Standard plastic solid-corner housing style.
      • '13' Specialized factory termination or lead wire sequence combination (3-wire custom layout).
      • 'B' Standard visual/label marker designating the generation revision or manufacturing factory line.
      • 'Z' Integrated Hydro Wave Bearing designation.
      • '-XD' Custom OEM specification suffix (often denotes high-durability internal components, specialized harness length, or tailored sensor outputs like locked rotor alarms/tachometer signals)
  • Serial Number Available or Sold:
    • SN 0097835 Unused Open Box
    • SN 0097836 Unused Open Box
    • SN 0097837 Unused Open Box
