Features:

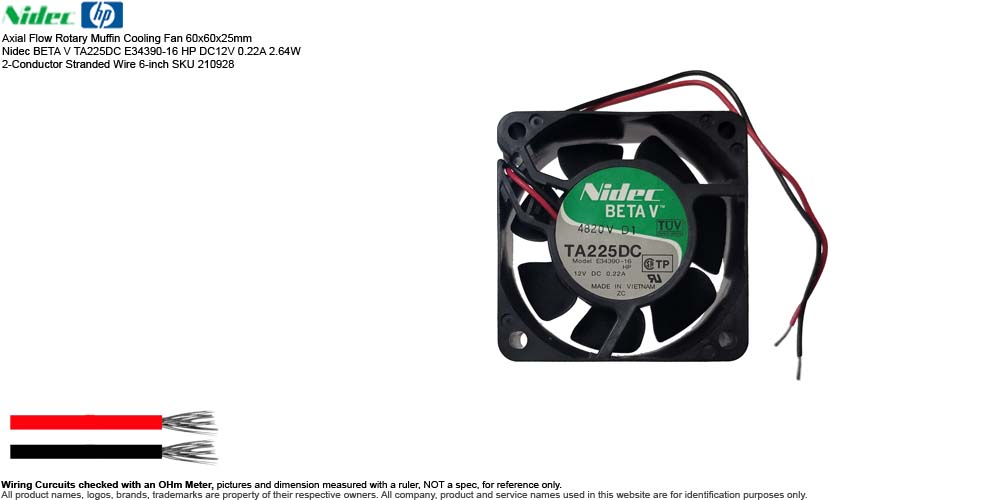

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x25mm Nidec BETA V TA225DC E34390-16 HP DC12V 0.22A 2.64W 2-Conductor Stranded Wire 6-inch SKU 210928
• Manufacturer: Nidec Corporation
• Brand: or Distributor: Nidec / HP
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Nidec BETA V TA225DC E34390-16 HP
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x25mm
  • Power Rating: DC12V 0.22A 2.64W
  • Bearing: Dual Ball Bearing
  • Speed: 4000 RPM +/- 10%
  • Air Flow: 41.97 CFM
  • Noise Level: 24 dB(A)
  • Material: Glass-fiber reinforced PBT Plastic UL94V-0 rated
    • Frame Housing: Glass-fiber reinforced PBT Plastic UL94V-0 rated.
    • Impeller Blades: Glass-fiber reinforced PBT Plastic UL94V-0 rated.
  • Connector: 2-Conductor Stranded Wire
  • Wire Length: 6-inch
• Weight: 2.6 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • Nidec BETA V TA225DC E34390-16 HP is a is a heavy-duty, 60mm x 60mm x 25mm axial cooling fan. This specific variant features an OEM sub-code configuration tailored for HP server equipment and workspace hardware
  • BETA V TA225DC E34390-16 HP 4820V-D1 Part Number Breakdown:
    • 'BETA V' The proprietary high-volume airflow production family name from Nidec
    • 'TA' Tube Axial design
    • '225' 60mm structural footprint series
    • 'DC' Direct Current operational circuit.
    • 'E34390-16' Nidec’s unique design blueprint index tracking its 12V, 0.22A, 2.64W electronic profile.
    • 'HP' Original Equipment Manufacturer (OEM) designation code for Hewlett-Packard ecosystem matching.
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '4820V-D1' Component validation matrix denoting specialized pin/voltage safety standards or vendor lot tracks.
  • Pulled from HP Compaq DC5000 SFF Power Supply PDP124P Part Number 308439-001, Spare Number 308617-001
  • Serial Number Available or Sold:
    • SN 0091047 Used
    • SN 0091048 Used
    • SN 0091049 Used
    • SN 0091050 Used
