Features:

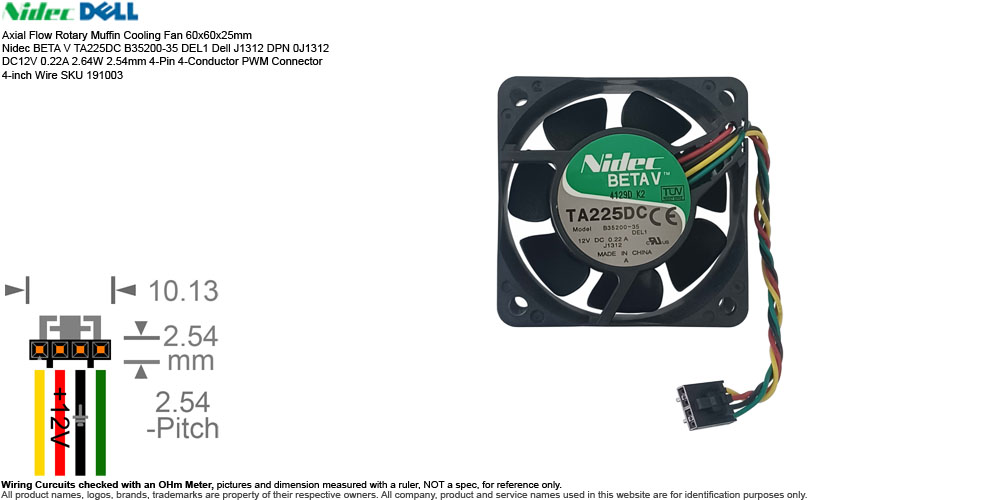

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x25mm Nidec BETA V TA225DC B35200-35 DEL1 Dell J1312 DPN 0J1312 DC12V 0.22A 2.64W 2.54mm 4-Pin 4-Conductor PWM Connector 4-inch Wire SKU 191003
• Manufacturer: Nidec Corporation
• Brand: or Distributor: Nidec / Dell
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Nidec BETA V TA225DC B35200-35 DEL1
  • Dell J1312
  • DPN 0J1312
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x25mm
  • Power Rating: DC12V 0.22A 2.64W
  • Bearing: Dual Ball Bearing
  • Speed: 4000 RPM +/- 10%
  • Air Flow: 21~25 CFM
  • Noise Level: 34 dB(A)
  • Material: Glass-fiber reinforced PBT Plastic UL94V-0 rated
    • Frame Housing: Glass-fiber reinforced PBT Plastic UL94V-0 rated.
    • Impeller Blades: Glass-fiber reinforced PBT Plastic UL94V-0 rated.
  • Connector: 2.54mm 4-Pin 4-Conductor PWM Connector
  • Wire Length: 4-inch
• Weight: 2.6 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • Nidec BETA V TA225DC B35200-35 is a high-performance 60x60x25mm axial cooling fan. It is primarily engineered for legacy Dell computer chassis and server architectures
  • BETA V TA225DC B35200-35 DEL1 J1312 4129D K2 Part Number Breakdown:
    • 'BETA V' The proprietary high-volume airflow production family name from Nidec
    • 'TA' Tube Axial design
    • '225' 60mm structural footprint series
    • 'DC' Direct Current operational circuit.
    • 'B35200-35' Internal manufacturing sub-code defining specific electrical consumption configurations (12V, 0.22A).
    • 'DEL1' Dedicated hardware integration marker designating internal Dell component ecosystem builds.
    • Photos are representative of the model and specifications you will receive; however,
      • Dell frequently assigns multiple different Part Numbers (PNs) to the exact same physical part known as "substitutes" or "cross-references", the exact Dell PNs may differ across individual units.
        • 'J1312' Official Dell Spare Part Number (P/N) allocation for simple parts ordering.
      • The exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
        • '4129D K2' Factory production batch tracker pinpointing the active manufacturing line, plant code, and assembly date stamp.
  • Serial Number Available or Sold:
    • SN 0091709 Used
    • SN 0091710 Used
