Features:

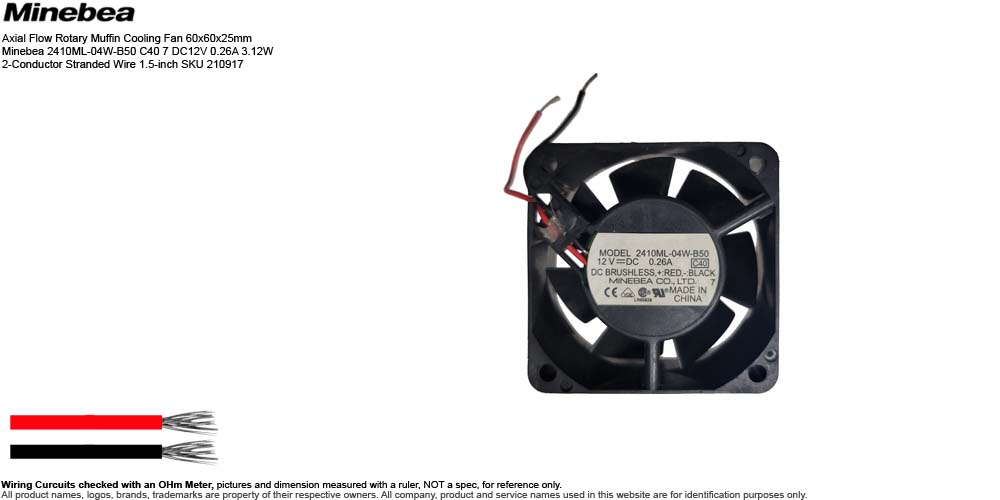

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x25mm Minebea 2410ML-04W-B50 C40 7 DC12V 0.26A 3.12W 2-Conductor Stranded Wire 1.5-inch SKU 210917
• Manufacturer: NMB
  • Minebea Mitsumi: The official parent company.
  • NMB: Short of Nippon Miniature Bearing.
  • NMB-MAT: a brand name resulting from 2004 joint venture between Minebea and Matsushita (now Panasonic).
  • NMB Technologies: The North American sales and marketing arm of the group.
• Brand: or Distributor: NMB / HP / Compaq
• Model:
  • Minebea 2410ML-04W-B50 C40 7
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x25mm
  • Power Rating: DC12V 0.26A 3.12W
  • Bearing: Dual Ball Bearing
  • Speed: 4900 RPM
  • Air Flow: 23.3 CFM
  • Noise Level: 35 dB(A)
  • Material: Black plastic rated to UL94V-0 flammability standards
    • Frame Housing: Black plastic rated to UL94V-0 flammability standards
    • Impeller Blades: Black plastic rated to UL94V-0 flammability standards
  • Connector: 2-Conductor Stranded Wire
  • Wire Length: 1.5-inch
• Weight: 2.5 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For parts or not working, pulled from working environment, current condition unknown. Not eligible for return or refund.
  • SKU ______O - Open Box, not been used, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • Minebea 2410ML-04W-B50 C40 7 is a high-performance 12V DC brushless axial cooling fan measuring 60mm x 60mm x 25mm. It is widely trusted for industrial machinery and server infrastructure due to its robust dual ball bearing construction.
  • 2410ML-04W-B50 C40 7 Part Number Breakdown:
    • '24' 60mm outer diameter dimension
    • '10' 25mm frame depth dimension
    • 'M' M Motor Series family
    • 'L' Brushless Type / Standard
    • '04' 12 Volts DC power rating
    • 'W' Wire Leads configuration
    • 'B' Dual Ball Bearing system
    • '5' High-to-Ultra speed level rating (on an escalating 1-8 scale)
    • '0' Standard configuration model
    • 'C40' Custom manufacturer variation code (defines the 0.26A target spec variation)
    • '7' often printed standalone or appended right next to the OEM modification string (C40 7 or B50 7 C40). In these specific enterprise environments, it dictates a hardware configuration variant—typically denoting a specific custom wire length, a pre-installed pinning layout, or a specialized bracket mount
  • Pulled from HP Compaq DC5000 SFF Power Supply PDP124P Part Number 308439-001, Spare Number 308617-001
  • Serial Number Available or Sold:
    • SN 0091056 Used
    • SN 0091057 Used
