Features:

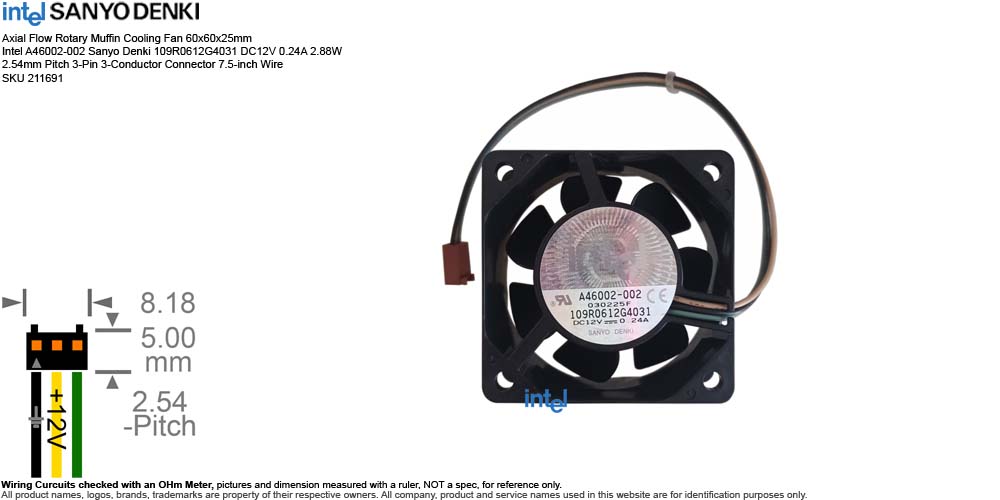

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x25mm Intel A46002-002 Sanyo Denki 109R0612G4031 DC12V 0.24A 2.88W 2.54mm Pitch 3-Pin 3-Conductor Connector 7.5-inch Wire SKU 211691
• Manufacturer: Sanyo Denki
• Brand or Distributor: Intel / Sanyo Denki / Supermicro
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Intel A46002-002
  • Sanyo Denki 109R0612G4031
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x25mm
  • Power Rating: DC12V 0.24A 2.88W
  • Bearing: Dual Ball Bearing
  • Speed: 5600 RPM
  • Air Flow: 27.5 CFM
  • Noise Level: 39 dB(A)
  • Material: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber reinforced UL 94V-0 Rated
  • Connection: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Overall Wire Length: 7.5-inch
• Weight: 2.9 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, pulled from unused computer cases, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • The Sanyo Denki 109R0612G4031 is a high-reliability, server-grade axial cooling fan. Initially customized under the Intel part number A46002-002, it was built specifically to cool enterprise-class Intel Xeon processors
  • Intel A46002-002 Sanyo Denki 109R0612G4031 Part Number Breakdown:
    • 'A46002-002' The official Intel part number and revision code for this specific processor heatsink fan assembly.
    • '109R' Product Series, Sanyo Denki San Ace Standard DC Axial Fan (9R type)
    • '06' Frame Size 60 mm × 60 mm square
    • '12' Operating Voltage12 Volts DC nominal
    • 'G' Speed Performance Tier, High-output performance speed classification
    • '4' Frame Thickness 25 mm thick
    • '031' Custom Suffix Code 3-wire arrangement featuring a built-in tachometer/pulse sensor
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '030225' Represents the exact date of manufacture in the YYMMDD (Year-Month-Day) format. This part was manufactured on February 25, 2003.
      • 'F' This trailing letter is an internal manufacturer suffix denoting the factory location, specific production line, or shift code used during assembly.
  • Pulled from Supermicro Superserver 6040 with P4DPE-G2 Rev 21 Mother Board
  • Serial Number Available or Sold:
    • Batch 030219F, SN 0091045 Used
    • Batch 030219F, SN 0091046 Used
    • Batch 030225F, SN 0091043 Used
    • Batch 030225F, SN 0091044 Used
