Datasheet: Delta AFB Series

Features:

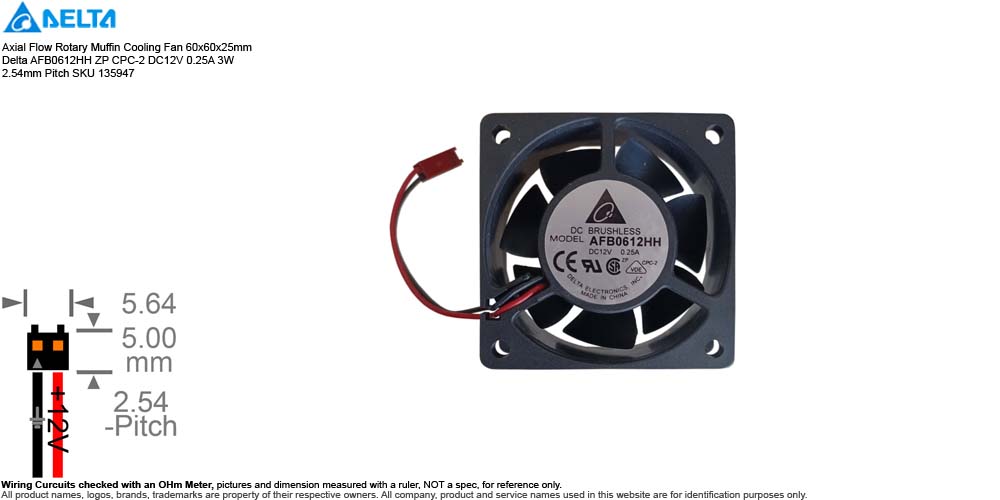

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x25mm Delta AFB0612HH ZP CPC-2 DC12V 0.25A 3W 2.54mm Pitch SKU 135947
• Manufacturer: Delta Electronics Inc.
• Brand or Distributor: Delta
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Delta AFB0612HH ZP CPC-2
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x25mm
  • Power Rating: DC12V 0.25A 3W
  • Bearing: Dual Ball Bearing
  • Speed: 5000 RPM
  • Air Flow: 27.55 CFM
  • Noise Level: 40.0 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connector: 2.54mm Pitch 2-Pin 2-Conductor Connector
  • Wire Length: 3-inch
• Weight: 2.3 oz (Estimated Shipping Weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, unused excess inventory, may have  signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box or Plastic Bag.
• For use with or pulled from: (for reference only)
  • The Delta AFB0612HH is a specialized, high-performance 12V DC axial cooling fan measuring 60mm x 60mm x 25.4mm. While standard industrial sheets list a 0.17A nominal rating, this specific equipment variant pulls a maximum current of 0.25A to provide enhanced torque and reliable startup under restricted conditions.
  • AFB0612HH ZP CPC-2 Part Number Breakdown:
    • 'AFB' Standard DC Axial Fan Series
    • '06' 60 mm x 60 mm square footprint, Defaults to standard 25.4 mm (1 inch) thickness.
    • '12' 12 Volts DC
    • 'HH' Extra High Speed (5000 RPM)
    • 'ZP' Factory process code defining specific internal revisions, potting, or material modifications
    • 'CPC-2' Custom configuration code designating specific wiring termination, connector styles, or custom wire harness lengths
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • '9831J' Factory production batch tracker pinpointing the active manufacturing line, plant code, and assembly date stamp.
  • Pulled from Cisco 2621 Router
  • Serial Number Available or Sold:
    • Batch 9831J SN 0111778 Used
