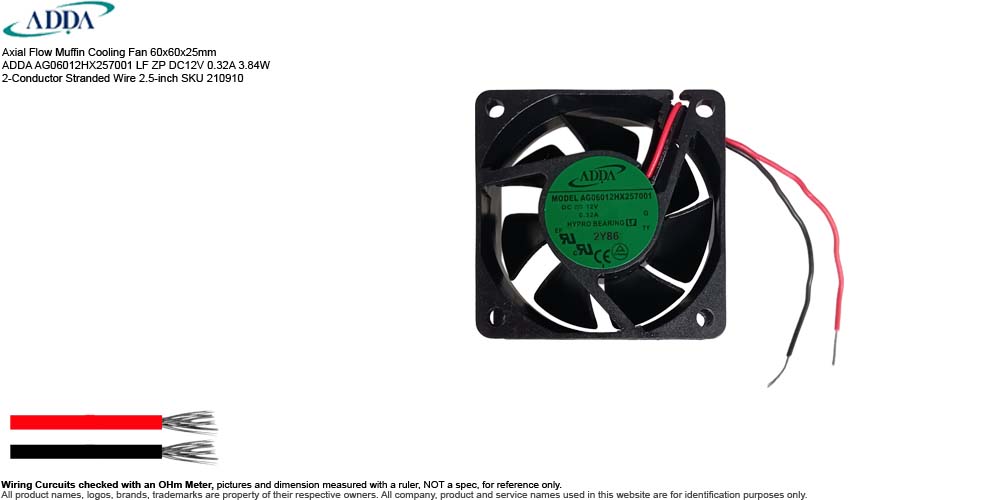

Axial Flow Muffin Cooling Fan 60x60x25mm
ADDA AG06012HX257001 LF ZP DC12V 0.32A 3.84W
2-Conductor Stranded Wire 2.5-inch SKU 210910
FN-6025-xxx

Features:

• Description: Axial Flow Muffin Cooling Fan 60x60x25mm ADDA AG06012HX257001 LF ZP DC12V 0.32A 3.84W 2-Conductor Stranded Wire 2.5-inch SKU 210910
• Manufacturer: ADDA Corporation
• Brand or Distributor: ADDA / Dell
• Model:  (and/or Compatible, Equivalent, Interchangeable)
  • ADDA AG06012HX257001 LF ZP
• rief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x25mm
  • Power Rating: DC12V 0.32A 3.84W
  • Bearing: Hypro Bearing
  • Speed: 6600 RPM
  • Air Flow: 34.67 CFM
  • Noise Level: 46.8 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connection: 2-Conductor Stranded Bare Wire
  • Wire Length: 2.5-inch
• Weight: 2.0 oz (estimated shipping weight 7 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, unused excess inventory, may have  signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-retail packaging, in unprinted box or plastic bag.
• For use with or pulled from: (for reference only)
  • The ADDA AG06012HX257001 is a high-performance, compact brushless DC axial cooling fan designed primarily for internal electronics and server enclosures
  • AG06012HX257001 LF ZP G TY 2Y86 Part Number Breakdown:
    • 'AG' Fan Type ADDA Brushless DC Fan (High Static Pressure series)
    • '060' Frame Size 60mm x 60mm footprint
    • '12' Voltage12 VDC operational voltage
    • 'H' Motor Speed High Speed
    • 'X' Bearing Type Patented Hypro Bearing
    • '25' Frame Thickness 25mm deep
    • '7' Blade Count 7-blade impeller configuration
    • '0' Blade Shape Standard axial profile
    • '01' Customer / Wire Spec Factory designation for 2-wire lead configuration
    • 'LF' Lead-Free (RoHS compliant construction).
    • 'ZP' Impedance Protected (prevents the motor from burning out if the blades are accidentally blocked).
    • Photos are representative of the model and specifications you will receive; however, the exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
      • 'G' Production/factory line tracking code.
      • 'TY' Taiwan origin manufacture designation.
      • 2Y86' Internal factory date/lot production batch code.
  • Pulled from
    • Dell SFF Computer Power Supply: D240A002L DPN 03WN11
    • Dell SFF Computer Power Supply: D240A003L DPN 0PH3C2
  • Serial Number Available or Sold:
    • Batch 2Y36, SN 0091039 Used
    • Batch 2Y86, SN 0099881 Used
    • Batch 2YP6, SN 0091141 Used
    • Batch -N/A-, SN 0090988 Used
    • Batch 2XH6, SN 0090810 Used
