Features:

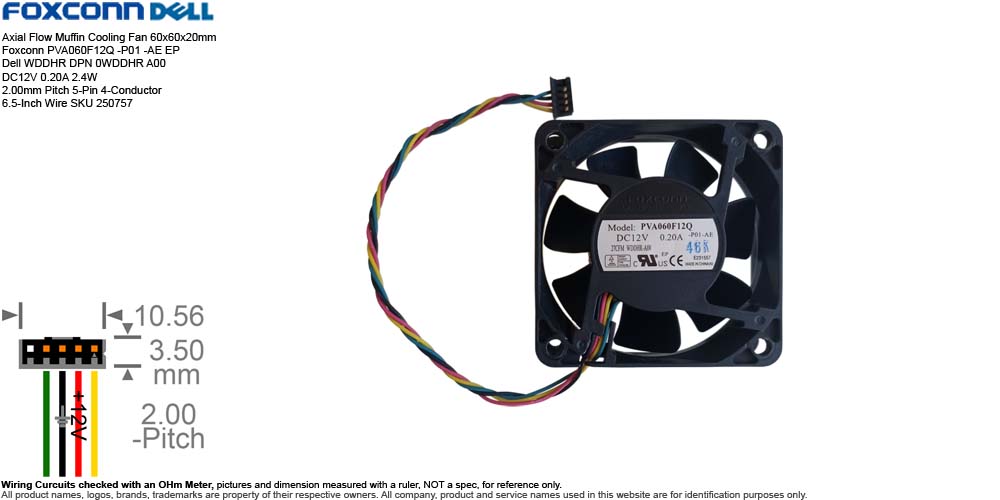

• Description: Axial Flow Muffin Cooling Fan 60x60x20mm Foxconn PVA060F12Q -P01 -AE EP Dell WDDHR DPN 0WDDHR A00 DC12V 0.20A 2.4W 2.00mm Pitch 5-Pin 4-Conductor 6.5-Inch Wire SKU 250757
• Manufacturer: Foxconn
• Brand: or Distributor: Foxconn / Dell
• Model: (and/or Compatible, Equivalent, Interchangeable)
  • Foxconn PVA060F12Q -P01 -AE EP
  • Dell WDDHR A00
  • DPN 0WDDHR A00
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x20mm
  • Power Rating: DC12V 0.20A 2.4W
  • Bearing: Dual Ball Bearing
  • Speed: 4000~6000 RPM (Variable via PWM Control)
  • Air Flow: 27 CFM
  • Noise Level: 28~35 dB(A)
  • Material: Glass-fiber reinforced PBT Plastic UL94V-0 rated
    • Frame Housing: Glass-fiber reinforced PBT Plastic UL94V-0 rated.
    • Impeller Blades: Glass-fiber reinforced PBT Plastic UL94V-0 rated.
  • Connector: 2.00mm 5-Pin 4-Conductor PWM Connector
  • Wire Length: 6.5-inch
• Weight: 1.7 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-Retail Packaging, in Unprinted Reused Box and Plastic Bag.
• For used with or pulled from: (for reference only)
  • Foxconn PVA060F12Q -P01 -AE is a high-performance, compact DC axial cooling fan specifically built as an OEM component for Dell systems under Dell Part Number (DPN) 0WDDHR (WDDHR-A00) for Dell small form factor (SFF) Desktops, Optiplex chassis, and Micro Servers
  • PVA060F12Q -P01 -AE EP Dell WDDHR DPN 0WDDHR A00 Part Number Breakdown:
    • 'PV' Product Line: Foxconn's proprietary brushless DC fan series.
    • 'A' Bearing Type: Typically indicates an advanced automated structure or internal production line variant.
    • '060' Frame Diameter: 60mm width and height profile.
    • 'F' Frame Thickness,: 20mm case thickness profile.
    • '12' Rated Voltage: 12 Volts DC operation.
    • 'Q' Speed Rating: High-velocity class designation (typically mapping to 4000+ RPM bands).
    • '-P01' Customer / Layout Code: Identifies custom wire pinouts, specifically the 5-pin 4-wire proprietary harness tailored for Dell motherboards.
    • '-AE' Revision Reference: Internal engineering revision code detailing the specific tier of internal components used.
    • 'EP' ECO Friendly Product, RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) certifications
    • Photos are representative of the model and specifications you will receive; however,
      • Dell frequently assigns multiple different Part Numbers (PNs) to the exact same physical part known as "substitutes" or "cross-references", the exact Dell PNs may differ across individual units.
        • 'WDDHR' Official Dell Spare Part Number (P/N) allocation for simple parts ordering.
      • The exact factory batch codes, manufacturing dates, and plant location stamps may differ across individual units.
        • '46K' Factory production batch tracker pinpointing the active manufacturing line, plant code, and assembly date stamp, the 46th week of the calendar year, In Foxconn's hardware manufacturing matrix, specific letters correlate directly to the final digit of the calendar year to trace the age of the lubrication and plastics.
  • Pulled from Dell Optiplex 9020 SFF Small Form Factor Computer.
  • Serial Number Available or Sold:
    • CN-0WDDHR-73308-46K00OA-A00 Used
