Features:

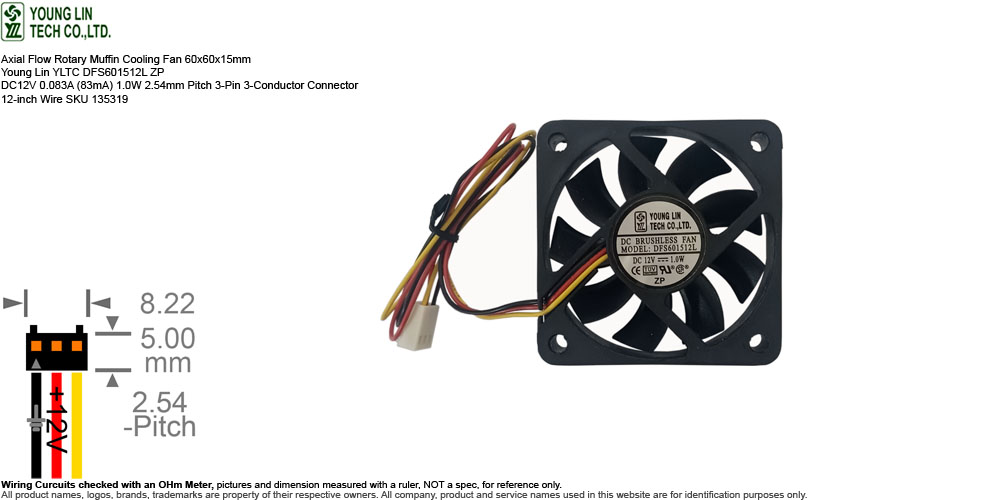

• Description: Axial Flow Rotary Muffin Cooling Fan 60x60x15mm Young Lin YLTC DFS601512L ZP DC12V 0.083A (83mA) 1.0W 2.54-Pitch 3-Pin 3-Conductor Connector 12-Inch Wire SKU 135319
• Manufacturer: Young Lin Tech Co., Ltd.
• Brand Name or Distributor: Young Lin / YLTC
• Model:
  • DFS601512L ZP
• Brief Spec.:
  • Design: DC Brushless Fan
  • Fan Size: 60x60x15mm
  • Power Rating: DC12V 0.083A (83mA) 1.0W
  • Bearing: Sleeve Bearing
  • Speed: 2500 RPM +/- 10%
  • Air Flow: 14.2 CFM
  • Noise Level: 23.5 dB(A)
  • Material: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Frame Housing: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
    • Impeller Blades: PBT Thermoplastic Glass Fiber Reinforced UL 94V-0 Rated
  • Connector: 2.54mm Pitch 3-Pin 3-Conductor Connector
  • Wire Length: 12-inch
• Weight: 1.3 oz (estimated shipping weight 6 oz)
• Condition: (Subject to Availability)
  • SKU ______A - Aged Open Box, not been used, with signs of cosmetic wear.
  • SKU ______N - New
  • SKU ______B - Bulk New, seller repackaged.
  • SKU ______E - Excess Inventory, not been used, may have signs of age.
  • SKU ______P - For Parts, Condition Vary, Not Eligible for Return or Refund.
  • SKU ______O - Open Box, unused, may have signs of cosmetic wear.
  • SKU ______R - Refurbished to working condition.
  • SKU ______U - Used, may have signs of cosmetic wear.
• Package: Non-retail packaging, in unprinted box or plastic bag.
• Applications or pulled from: (for reference only)
  • The Young Lin YLTC DFS601512L is a silent-optimized, low-profile DC cooling fan.
  • DFS601512L ZP Part Number Breakdown:
    • 'DF' Product Line: DC Brushless Axial Fan
    • 'S' Bearing Architecture: Sleeve Bearing design
    • '60' Housing Width/Height: 60mm x 60mm square frame footprint
    • '15' Housing Depth: 15mm slim profile frame depth
    • '12' Input Voltage12V DC industrial electrical rating
    • 'L' Output Speed Tier: Low Speed variant (Optimized for quiet operating acoustics)
    • 'ZP' Factory Terminal / Protection Code: Impedance protected motor with specialized connection wire terminations
  • Pulled from Socket A / 370 CPU Cooling Fan.
  • Serial Number Available or Sold:
    • SN 0112161 Used
    • SN 0112162 Used
